TEXA UNIPROBE

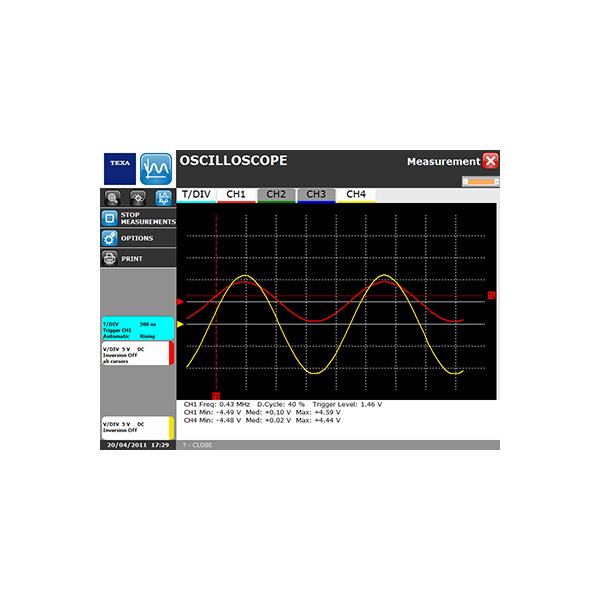

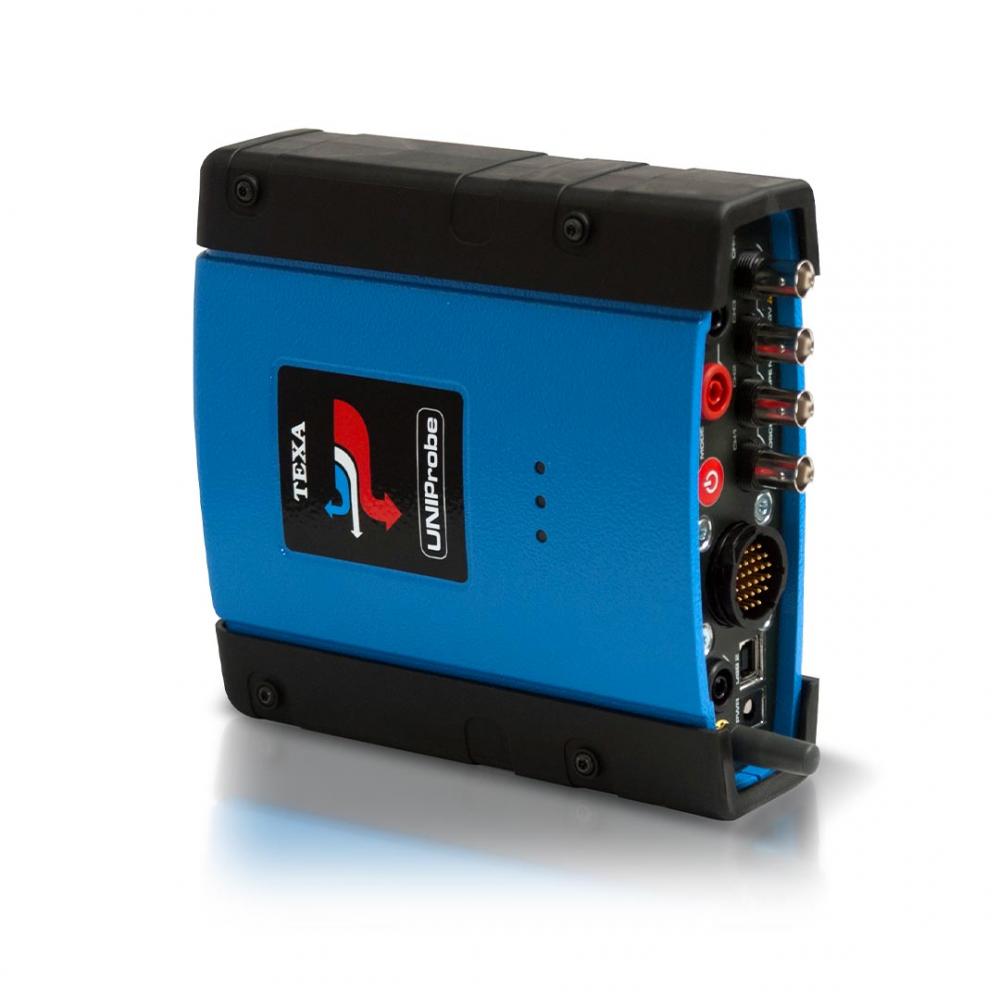

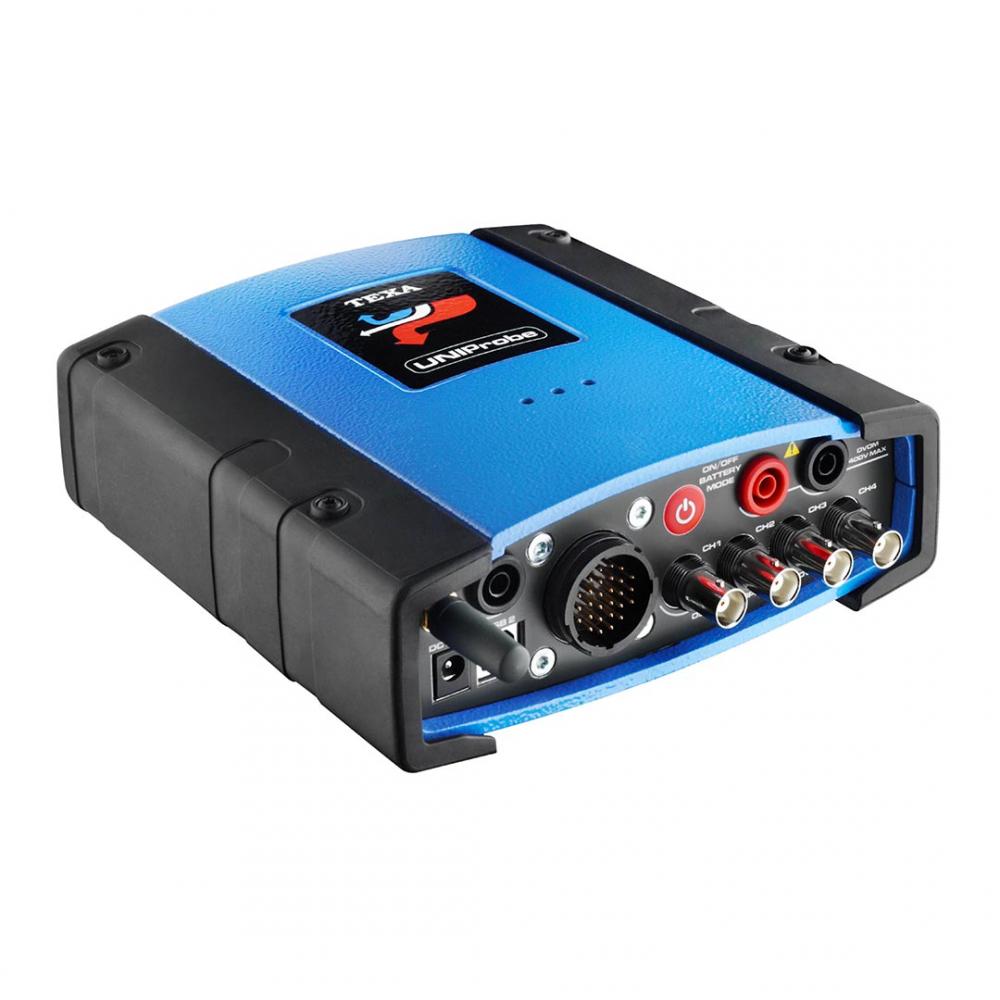

TEXA UNIProbe Six instruments in one unit Rev counter and scantool Impressive functionality UNIProbe incorporates 6 different instruments in the one unit, including an oscilloscope with four independent channels that can take accurate and professional measurements from voltage sensors and current clamps. UNIProbe lets you test batteries, starting and charging systems, perform electrical tests on CAN networks, measure voltage and resistance using a built-in multimeter, and measure fuel pressure with an external electronic sensor. You can even use a signal generator to simulate the PWM signals produced by sensors and the PWM power signals that drive electromechanical actuators like solenoid valves and common rail pressure regulators. Measurement System Software Easy access to the amazing functions of UNIProbe is ensured by MSS (Measurement System Software), developed by TEXA especially for this device, and by the complete IDC6 software Platform. The SIV (Signal Information Viewing) function deserves a special mention. This uses a software algorithm developed by TEXA specifically to compare acquired data with values recorded in an internal database. Unusual signals can therefore be identified instantly, making your work faster and easier than ever. Technical Specifications   POWER SUPPLY8 – 32 VDC INTERNAL BATTERY RECHARGE VOLTAGE10 – 32 VDC, built-in 7.4 V, 1Ah lithium battery BATTERY AUTONOMYup to 5 hours MAXIMUM CURRENT DRAW1,2 A at 12 V ENVIRONMENTALOperating temperature: 0 ÷ +45°CStorage temperature: – 20 °C ÷ 60 °COperating relative humidity: 10 % ÷ 80 % without condensation DIMENSIONS155x178x55 mm (excluding Bluetooth antenna) WEIGHT1,2 kg OSCILLOSCOPE: CHANNELS4 independent input channels with analogue bandwidth of 10 MHz (-3 dB); sampling rate 20MSamples/sec at 10 bit with 1 or 2 channels active, 10 MSamples/sec at 10 bit with 3 or 4 channels active MAX INPUT VOLTAGE+/- 50 Vmax, AC or DC couplingbr VERTICAL SCALE FOR EACH CHANNELfrom 20 mV/Div to 50 V/Div HORIZONTAL SCALEfrom 500 ns/Div to 5s/Div TRIGGERsource CH1, CH2, CH3, CH4, selectable, trigger delay DISPLAY MODENormal, Auto, Single shot MEASUREMENT OF FOLLOWING VALUESfrequency, period, RMS, Vmax, Vmin MULTIMETER: GALVANIC INSULATIONup to 1 kV for safe measurements VOLTAGE MEASUREMENTSMaximum measurable voltage: ± 400VDC, input impedance 4.7 MΩ, 3 digit resolution; three value ranges, with automatic or manual scale selection: 0-6 V, 6-60 V, 60-400 V AC/DC RESISTANCE MEASUREMENTSThree value ranges, with automatic or manual scale selection: 0-1000 Ω, 1-100 kΩ, 100 – 10 MΩ, resolution: 3 digits CURRENT MEASUREMENTSCurrent measurements performed by connecting TEXA “BICOR” series probes to the jacks on the front of the tool TNET FUNCTIONTroubleshooting on CAN ISO11898, ISO11519 networks BPP FUNCTIONTroubleshooting on starting systems Voltage measurements: DC up to 50VDC ELECTROMAGNETIC COMPATIBILITYETSI EN 301 489-17 V 1.2.1 EN 6/326/1
