TEXA TWINPROBE

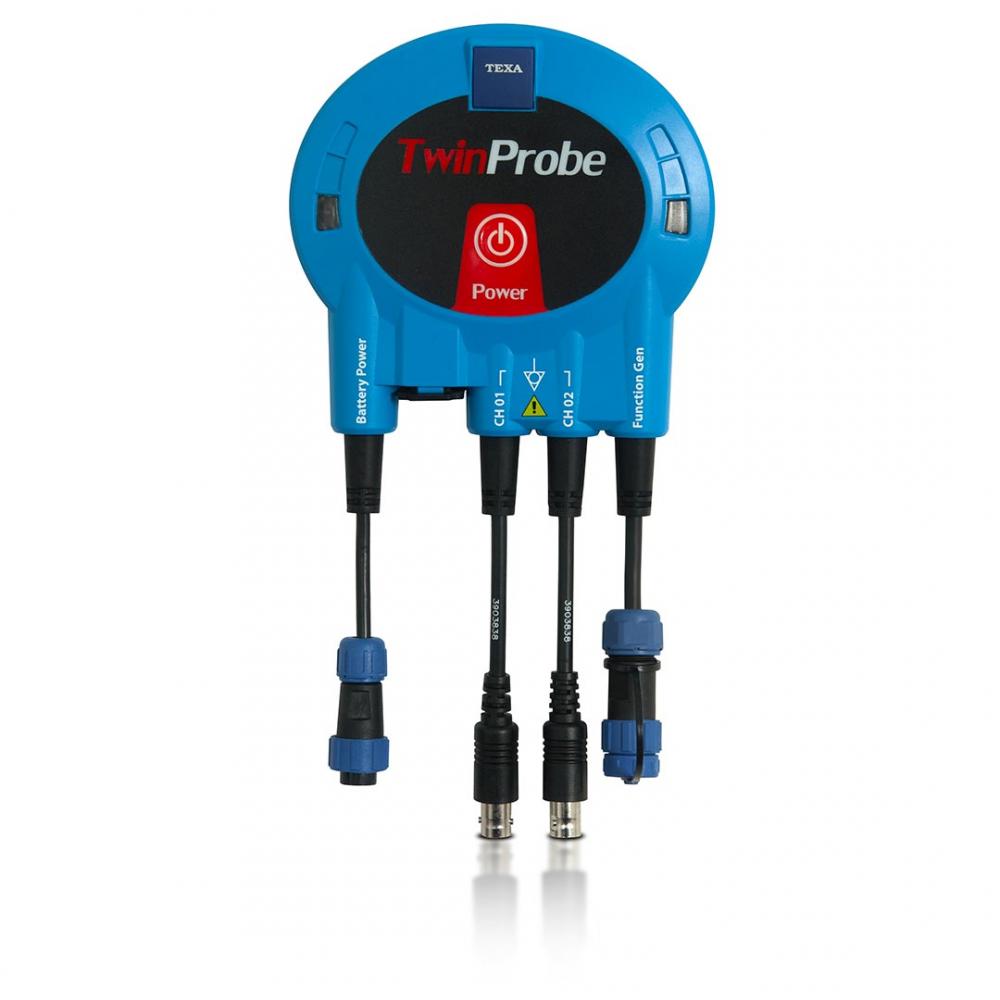

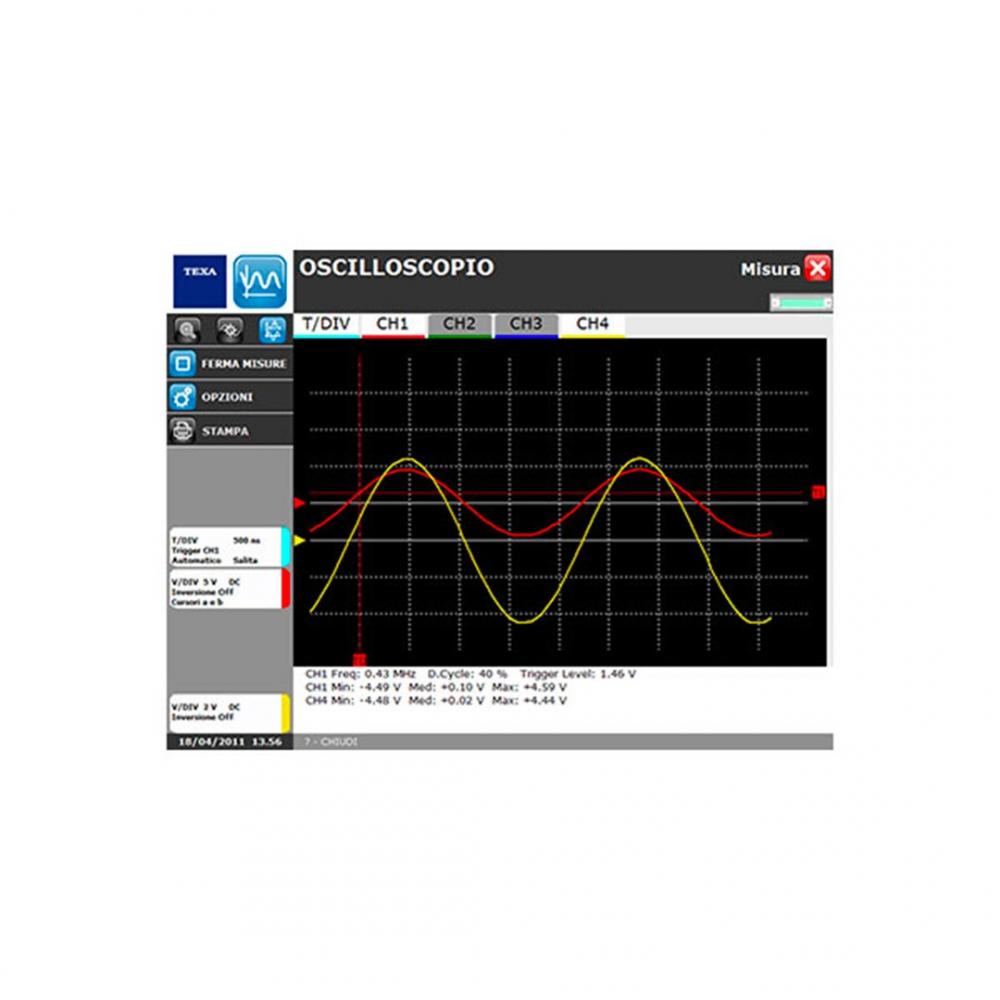

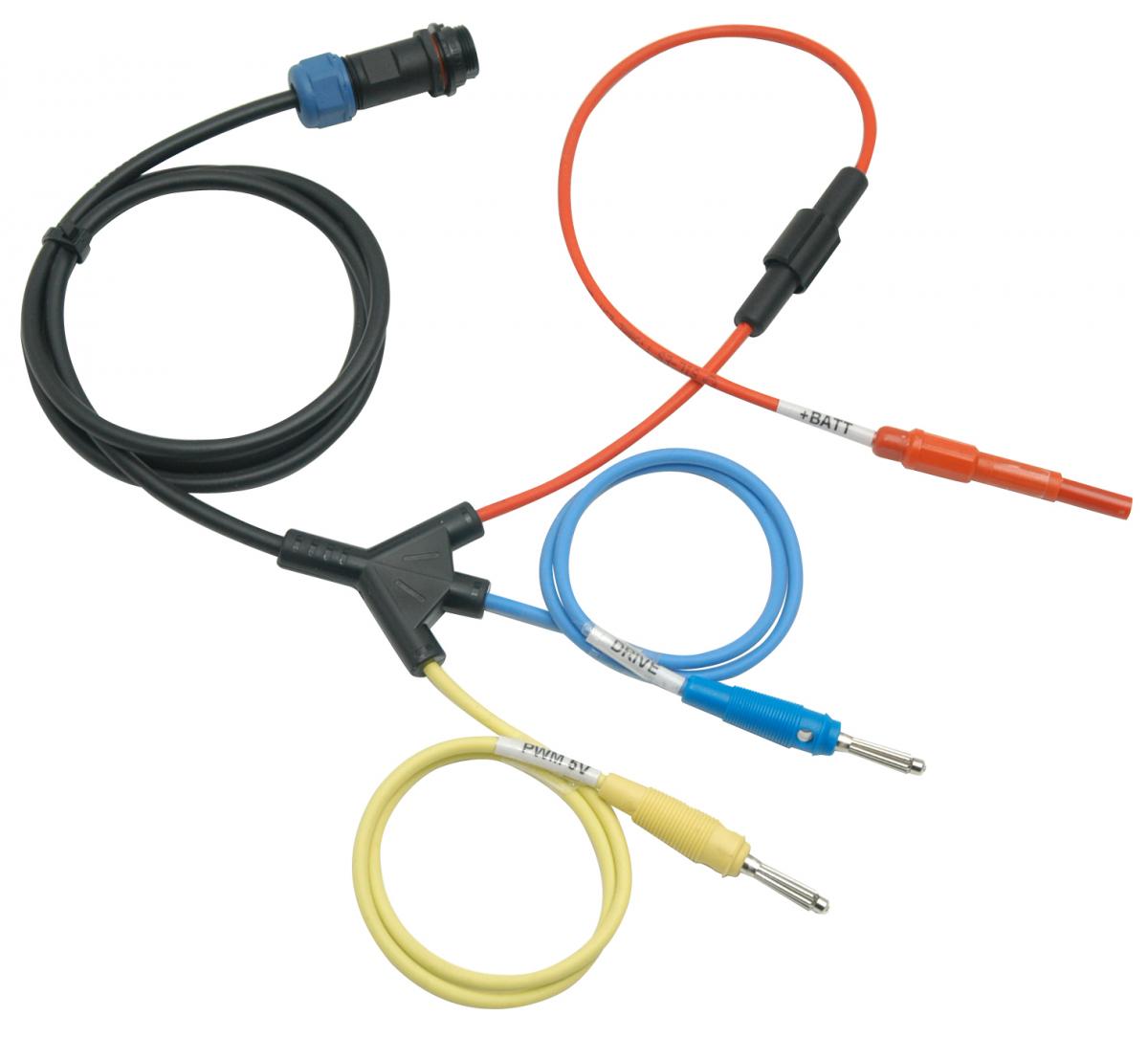

TEXA TwinProbe For analogue and digital measurements For analogue and digital measurements       Request a demo Test the efficiency of TEXA's tools.Request a demo in your workshop. Request it now   TwinProbe TwinProbe is the TEXA tool for acquiring the analogue and digital measurements needed for all conventional diagnostic testing. It comes at a lower price than UNIProbe, its “big brother”, however both share in common outstanding practicality and precision for all automotive service operations. More info     Oscilloscope TwinProbe is an oscilloscope with two independent analogue channels for inputs up to ± 200V, complete with SIV (Signal information Viewing ) function for interpreting the measured signal. The SIV function guides you through the entire test procedure. TwinProbe not only displays the signal but, while taking measurements and acquiring data, simultaneously processes and analyses information in order to provide real time evaluations. TwinProbe can process signals from various sensors and actuators and compare the data acquired against values stored in the internal database, immediately highlighting any signal anomalies.           Signal generator The practical TwinProbe signal generator is ideal for simulating input signals from sensors and the signals transmitted by ECUs to control actuators like solenoid valves, in order to detect and analyse faults in the system. Ammeter TwinProbe can also be used to measure current intensity. An optional BICOR clamp-on ammeter is needed to allow TwinProbe to run these tests.       Measurement System Software Easy access to the amazing functions of TwinProbe is ensured by MSS (Measurement System Software), developed by TEXA especially for this device, and by the complete IDC6 software Platform. The SIV (Signal Information Viewing) function deserves a special mention. This uses a software algorithm developed by TEXA specifically to compare acquired data with values recorded in an internal database. Unusual signals can therefore be identified instantly, making your work faster and easier than ever.       Request a demo Test the efficiency of TEXA's tools.Request a demo in your workshop. Request it now   Customer Service Team and technology at your service Exclusive services that allow you to make the most of its potentiality and receive continuous support by the TEXA Call Center’s team* of specialists.   This way your workshop can always keep up with the latest automotive technologies.   An extra ally for the daily work of vehicle repairers.* Verify the availability of SERVICER in your own country. Discover more       Technical Specifications POWER SUPPLY8 V – 35 V DC max STAND-BY CONSUMPTION150 mA at 12 V CONSUMPTION DURING BATTERY CHARGE IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS480 mA at 12 V INTERNAL BATTERY DURATION IN OSCILLOSCOPE MODE AND 2 ACTIVE CHANNELS1h and 45 mins approximately ENVIRONMENTALOperational temperature: 0 ÷ +45°CStorage temperature: – 20 °C ÷ 60 °COperating relative humidity: 10% – 80% DIMENSIONS WITHOUT CABLES (WITH CABLES)125 x 130 x 27 mm (135 x 130 x 27 mm) WEIGHT460 g OSCILLOSCOPE: CHANNEL NUMBERS2 analogue (CH01, CH02) HOST CONNECTIONVia USB2, USB1 or Wireless Bluetooth АКТИВИРАМCH01 o CH02 A/D CONVERSION2 10-bit converters.40 MS/s with one active channel.20 MS/s for channel with 2 active channels VIEWING MODENormal, Auto, Single shot COMMON MODEAC, DC MAX INPUT VOLTAGE± 200 V ADDITIONAL FUNCTIONSTrigger delay, frequency calculation, Vmedia, Vmax, Vmin, Period, Setting scale for amperometric clamps SIGNAL GENERATOR: PWM CURRENT DRIVEMaximum continuous current: 5 A at 12 VMaximum PWM frequency: 50 kHzOperating voltage: 5÷30 VDuty Cycle Resolution: 1%Frequency resolution: 0,1 Hz PWM 5 VMaximum continuous OUTPUTcurrent: 20 mAMaximum PWM frequency: 50 kHzOUTPUT voltage: 0-5 V ± 5%Duty Cycle Resolution: 1%Frequency resolution: 0,1 Hz
