TEXA NAVIGATOR TXB 2

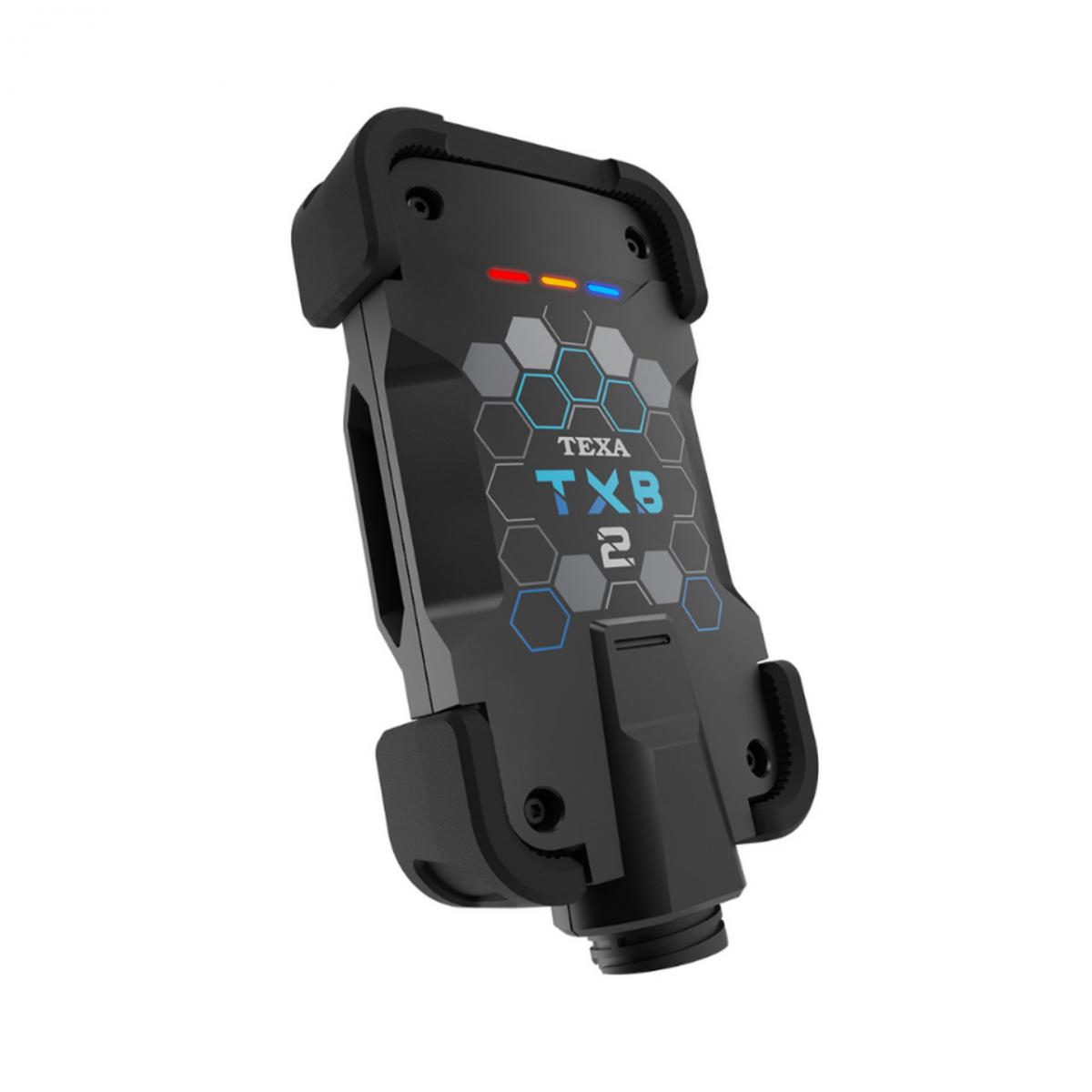

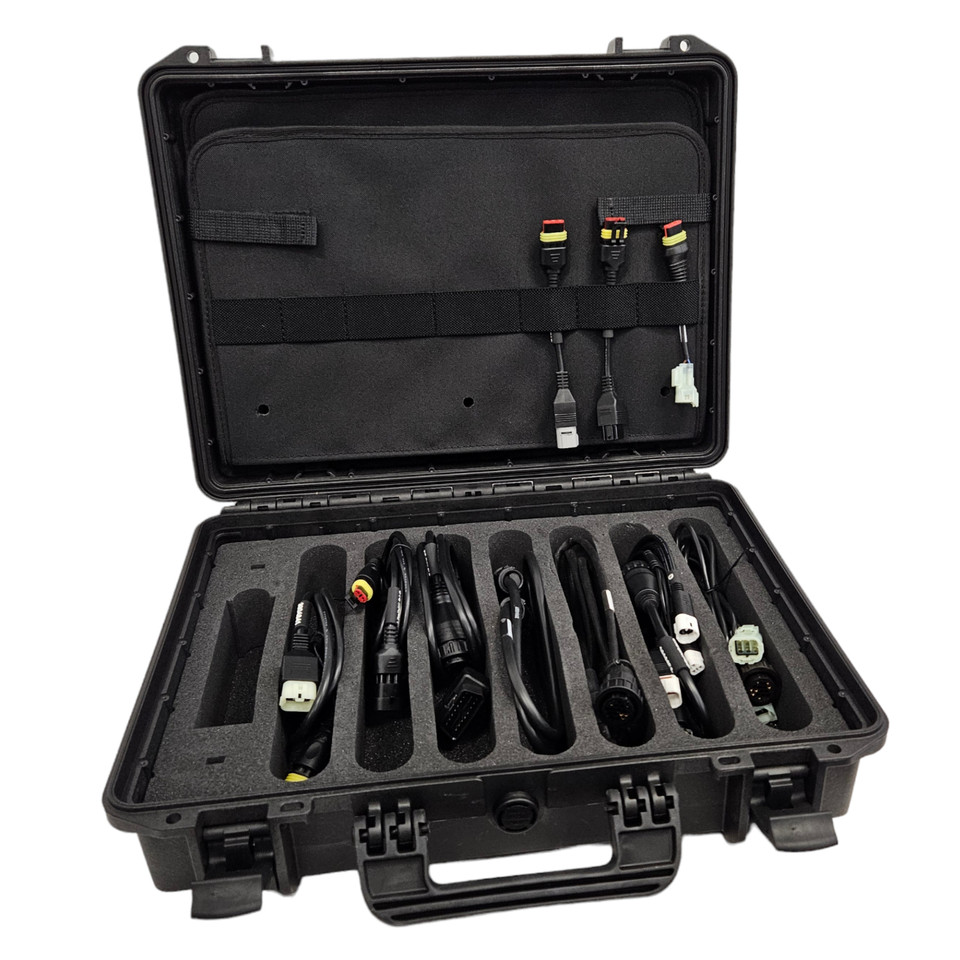

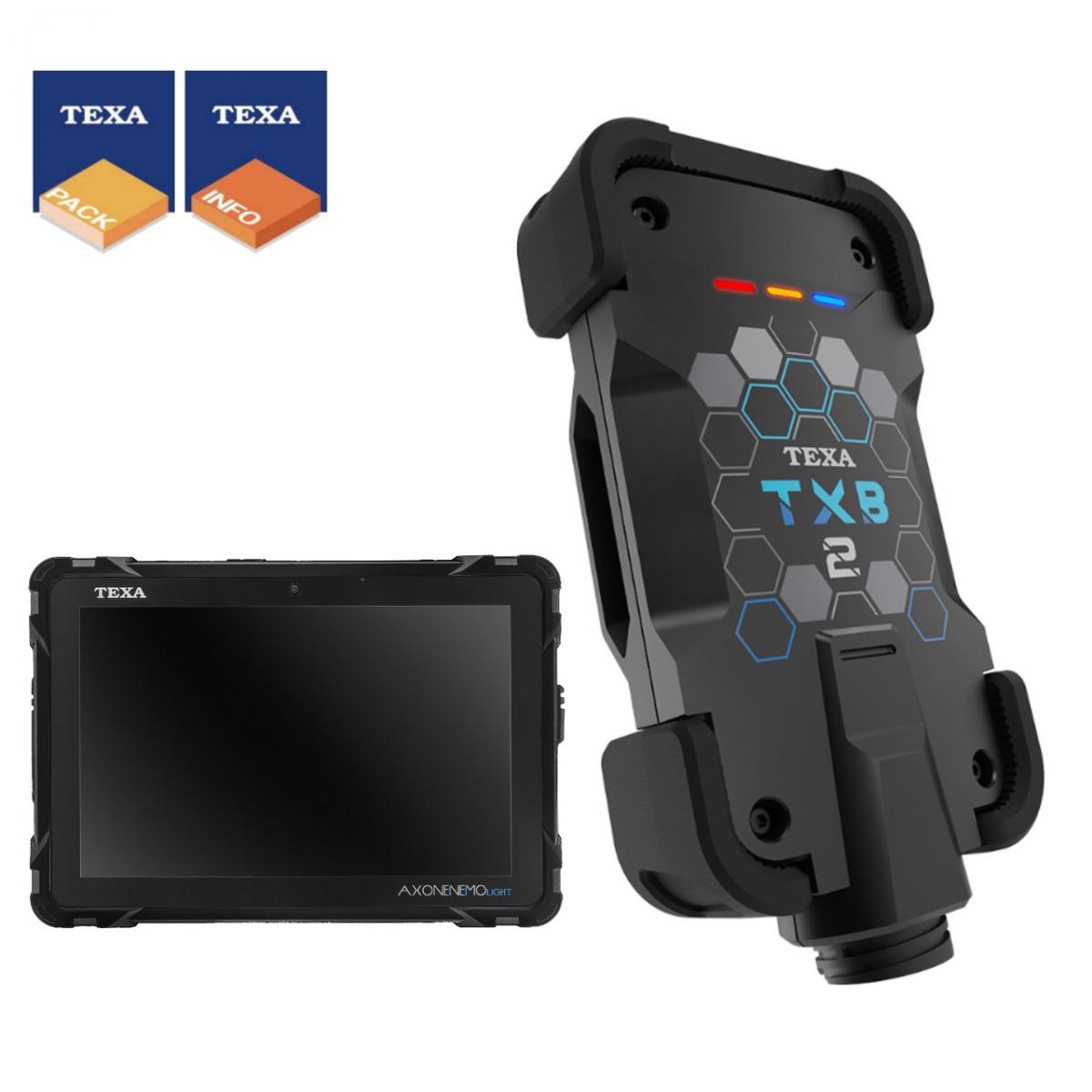

NAVIGATOR TXB 2 It is a latest-generation vehicle interface specifically developed for the bike and marine environments.     Request a demo Test the efficiency of TEXA's tools. Request a demo in your workshop.   CAR   TRUCK   BIKE   OFF-HIGHWAY   MARINE   A/C System Discover NAVIGATOR TXB 2 Home > Products > NAVIGATOR TXB 2             It is a latest-generation vehicle interface specifically developed for the bike and marine environments.       NAVIGATOR TXB 2 is a latest-generation vehicle interface specifically developed for the bike and marine environments. The processor used makes it even more fast and powerful and allows a quick and precise processing of the data from the control units, in PassThru mode also.   New connections The latest-generation Bluetooth technology and a new USB C socket guarantee faster connection and an optimised data download, other than better useability thanks to the new RGB LEDs. Its hardware features make it compatible with all current protocols and its integrated 16-pin CPC connector allows the use of all the BIKE diagnostic cables. Other than the “classic” diagnosis, it also allows recording the diagnostic session while moving*. * For the diagnostic tests while moving, carefully read and follow the prescriptionsyou find at: www.texa.com/test-drive.           An inseparable pair IDC6 is TEXA’s extraordinary diagnostic software for managing all the operations that are normally carried out in a workshop. Designed for the BIKE and MARINE environments, in which TEXA is a leader, it allows repair technicians to carry out all the essential operations, among which the self-diagnosis for error reading and clearing, the display of the engineering parameters and of the statuses of the control unit, activations, adjustments and configurations of the devices installed on the vehicle, deactivation of the warning lights, configuration of the control units, fuel trim and injection timing, key programming. Thanks to a worldwide network created in more than 20 years in the market, IDC6 is able to guarantee an extraordinary coverage of the vehicles in circulation.   SOFTWARE     A continuously deepened diagnosis IDC6 presents a series of extremely sophisticated and useful functions such as Global Scan, to scan the vehicle detecting the control units installed on it and possible errors, or Freeze Frame for the display of a variety of parameters and data that indicate the conditions of use of the vehicle at the time a fault occurs. More info     Technical features   MODELNAVIGATOR TXB 2 MANUFACTURERTEXA S.p.A. PROCESSORCORTEX M7 STM32H735AGI6 up to 550 MHz, 1MBFLASH, 564KB RAM SRAM MEMORY16 MBits organized in 1024K x 16 bits SRAM256 MBits organized in 4096K x 4 banks x 16 bits eMMC MEMORY8 GByte on an 8-bit bus VEHICLE BATTERYSystem management at 12 V and 24 V EXTERNAL POWER SUPPLY12 ÷ 24 V USB COMMUNICATION2.0 high speed 5 V / 500 mA WIRELESS CONNECTIONBluetooth 5.0 class1 OPERATIONAL BAND2402 ÷ 2480 MHz MAXIMUN RADIO FREQUENCY POWER TRANSMITTED10 dBm ELECTRONIC SWITCH2-way, 13 independent positions DIAGNOSTIC CONNECTOR16-pin CPC SUPPORTED PROTOCOLS• Blink codes• K, L (with current protection 100 mA),ISO9141-2, ISO14230• FD CAN 11898-2:2016 2 channels• CAN ISO 11898-3 LOW Speed• CAN SAE J2411 Single Wire• SAE J1850 PWM• SAE J1850 VPW• SAE J1708• RS232 VISIBLE WARNINGSLED: RGB x3 12 V CONSUMPTION300 mA 24 V CONSUMPTION100 mA OPERATING TEMPERATURE0 ÷ 50 °C STORAGE TEMPERATURE– 20 ÷ 60 °C OPERATING MOISTURE10 ÷ 80 % without condensation DIRECTIVESRED 2014/53/EURoHS 2011/65/EU and Delegated Directive 2015/863/EU SAFETYEN 62368-1EN 62311 ELECTROMAGNETIC COMPATIBILITYEN 301 489-1EN 301 489-17 RADIO SYSTEMSEN 300 328 WEIGHT215 g
