TEXA eLight

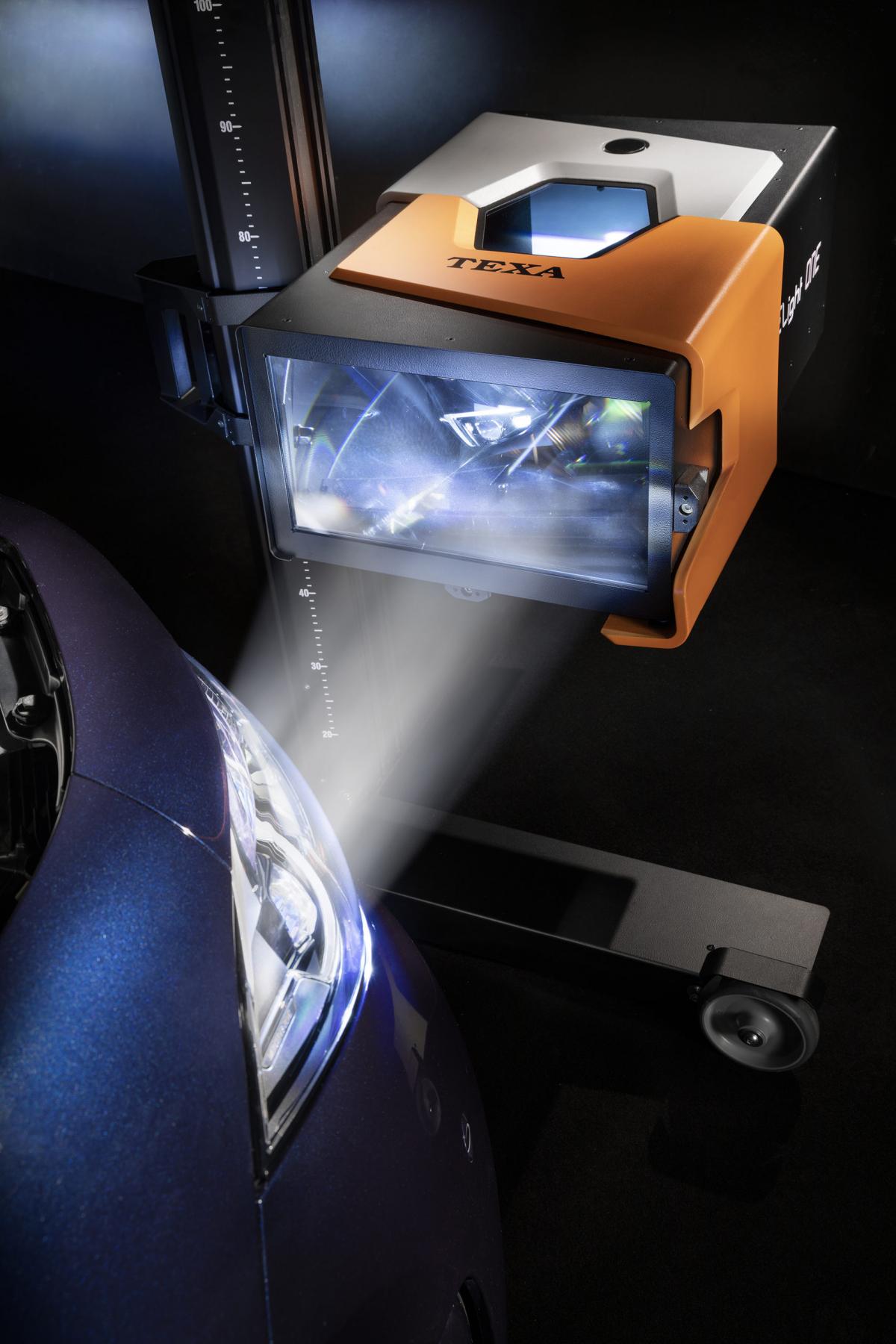

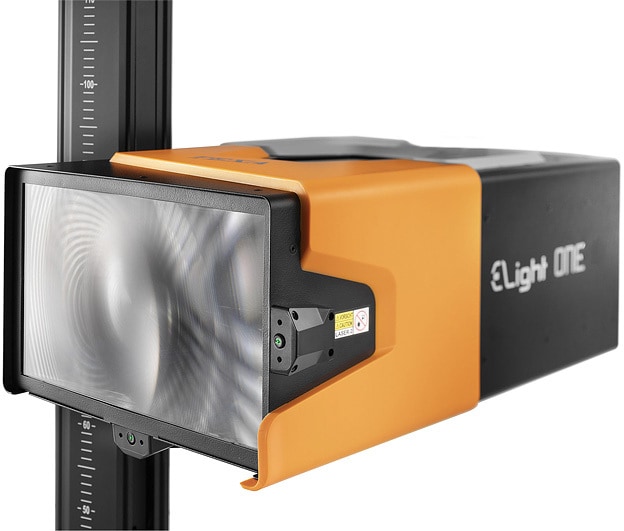

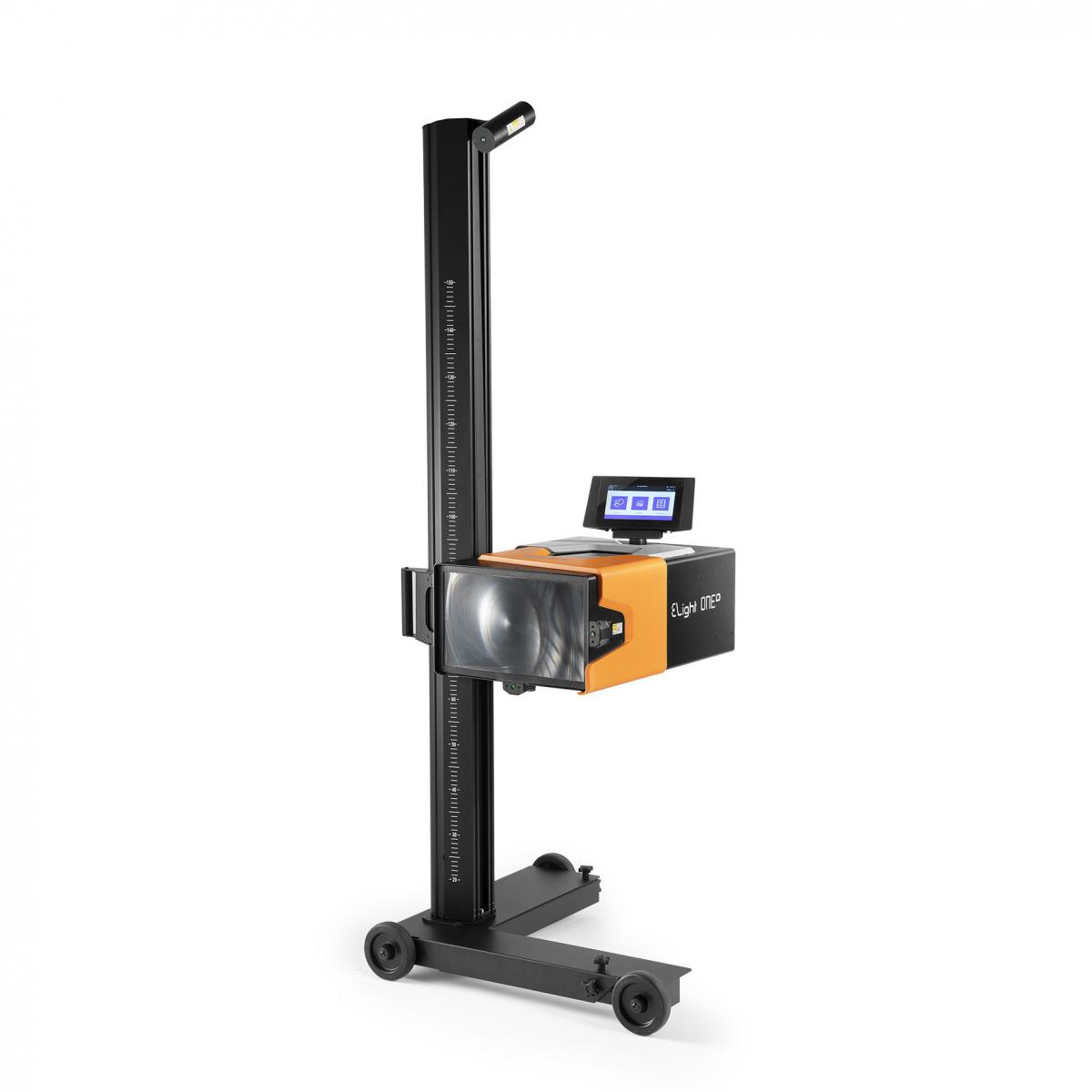

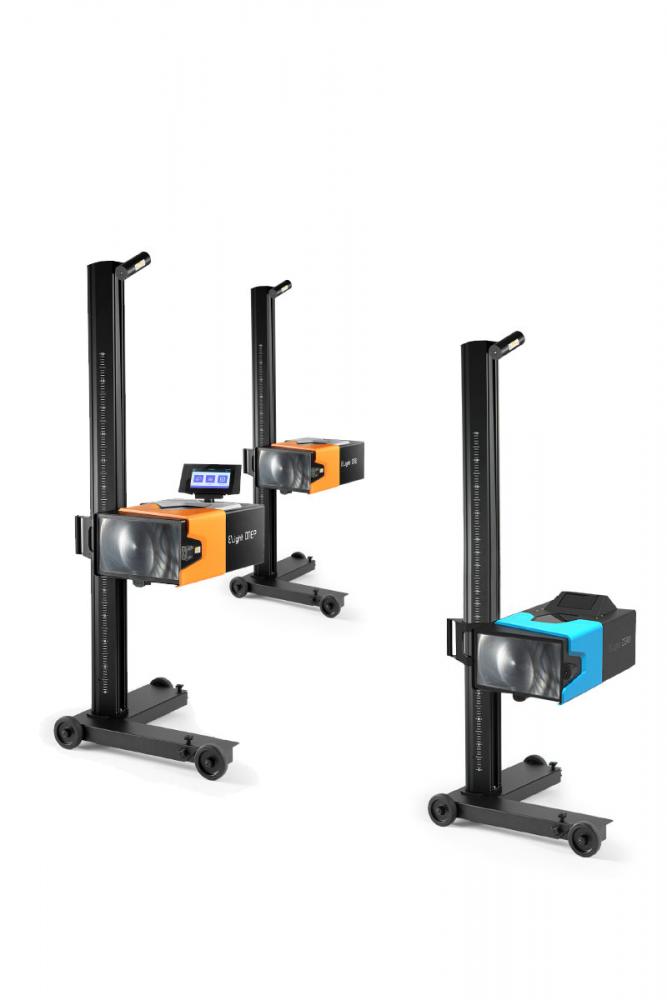

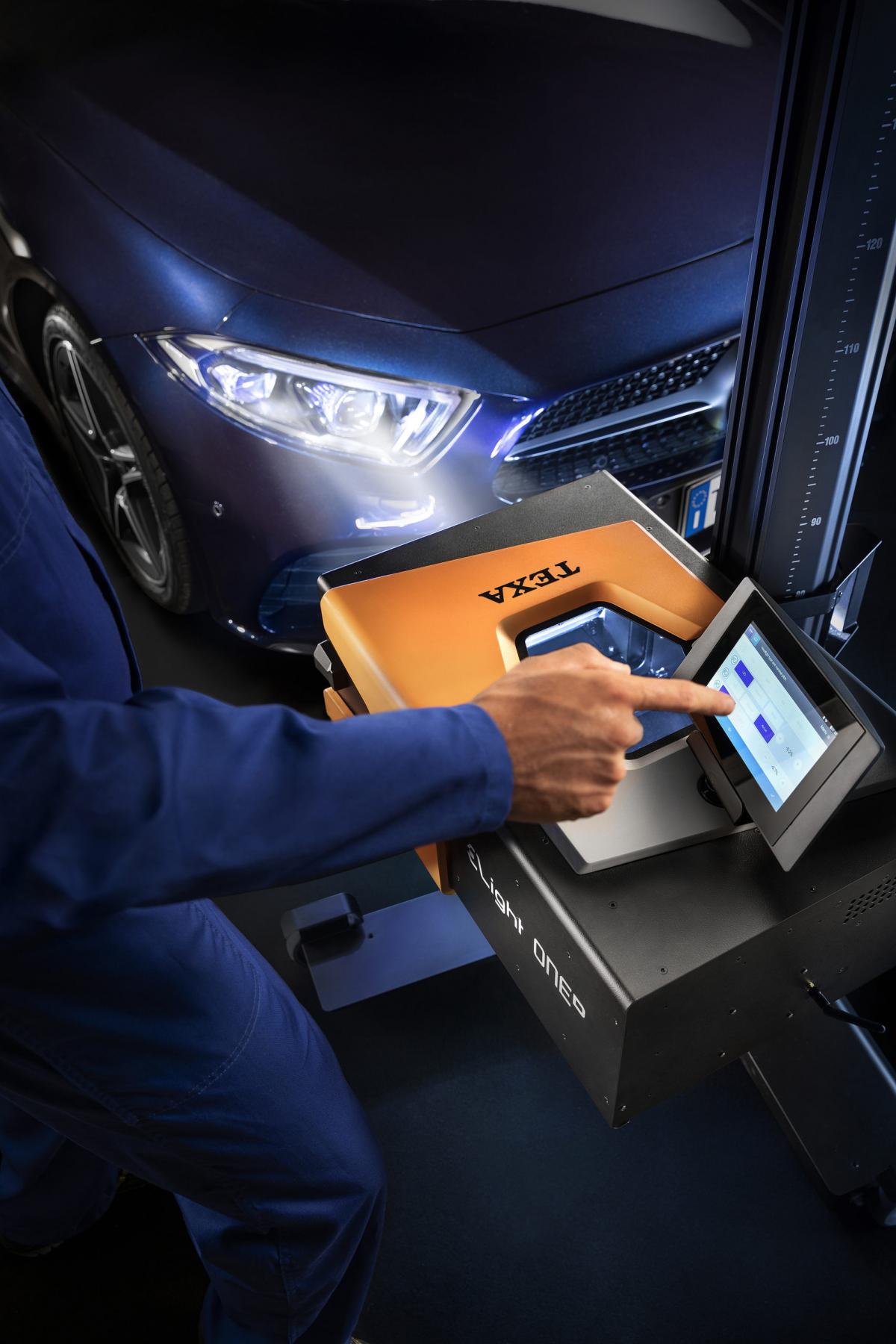

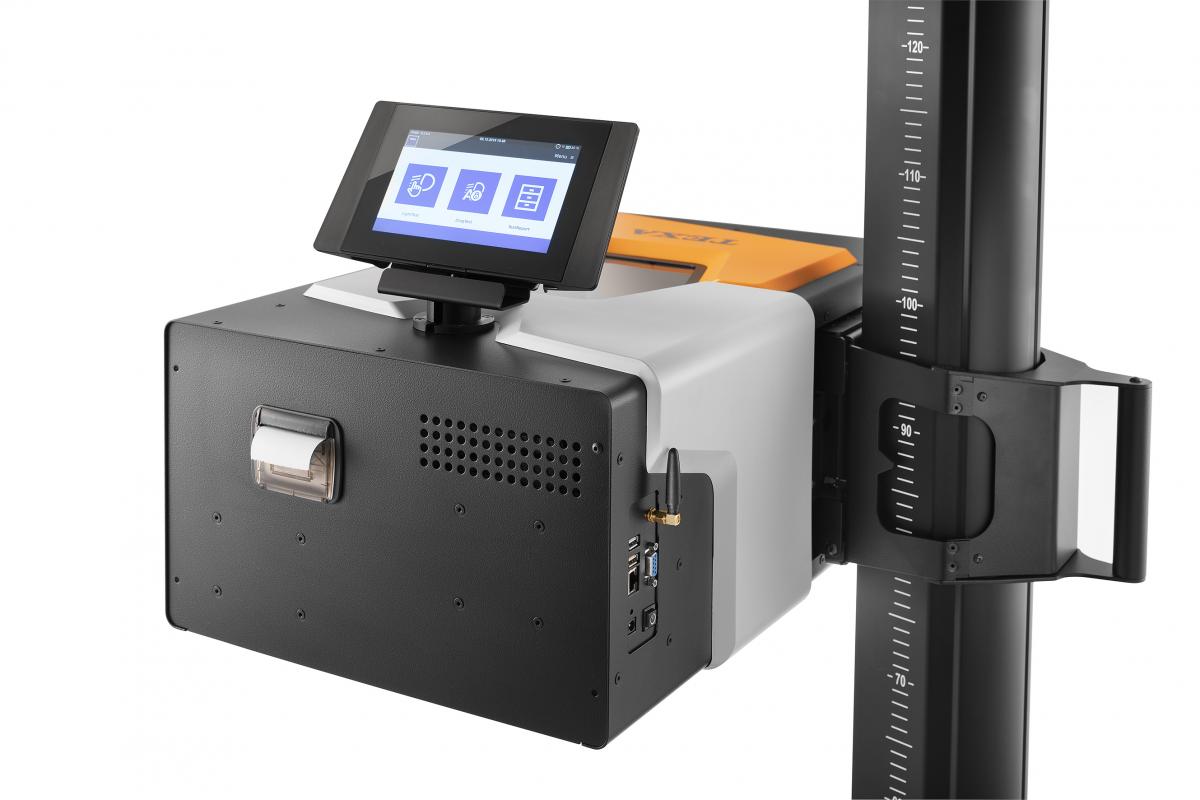

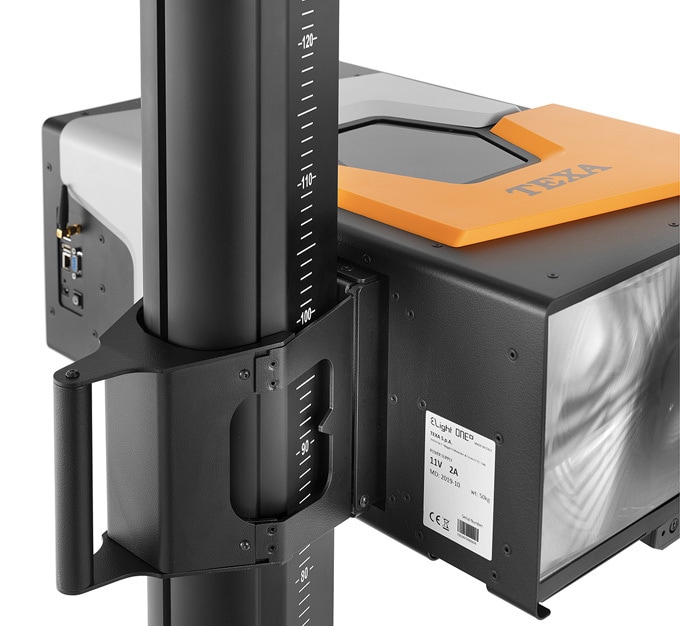

eLight ONE/ONED For many years, vehicle headlights were relatively standard components. Recently, however, they have undergone rapid technological change and seen the introduction of halogen bulbs, xenon projectors and LED units. Laser technology is just around the corner. In their quest to improve safety, vehicle manufacturers are also focusing on the concept of “Intelligent Lighting”, as represented by AFS (Adaptive Front Lighting System) and GFHB (Glare Free High Beam). On top of this, headlights are now frequently connected to other electronic systems, including radar, camera and steering. Garages and PTI centres therefore need a modern headlight alignment system capable of working with the sophisticated technology that will soon appear. More info eLight is the most advanced headlight alignment system on the market today, and the first with integrated electronic diagnostics.eLight’s digital electronics use a built-in camera, a system of algorithms and integrated autodiagnostics to identify the type of headlight and to guarantee maximum precision of alignment. eLight can even produce a detailed report, based on digital analysis, for attachment to the garage worksheet, and is already fully compatible with the legislation governing PTI centres due to be introduced in 2021.     Two versions,the same excellence TEXA eLight comes in two versions, ONE and ONED. The differences between them concern the level of integration of the diagnostics, and are explained in the following pages. Both versions feature a casing made from aluminium, a material that combines the characteristics of precision machinability, strength and light weight essential to garage operations. They both also incorporate a powerful lithium battery that guarantees enough autonomy for the most intensive day’s work. eLight has been carefully designed for superb ergonomics and to make all kinds of headlight alignment procedure quick and easy. The generous Fresnel lens (340×200 mm) is big enough to cater for the trend towards larger and more irregularly shaped headlights, as seen on the latest models.  More info Integrated diagnostics, capable of identifying the type of headlight and calling up the relevant selective activation procedures, allow you to save up to 50% in the time needed to complete alignment procedures compared to conventional alignment systems. Where applicable, the integrated diagnostics also help by switching control units to “setting” mode. eLight comes with a CMOS camera and laser visor for maximum photometric precisionaccording to the strictest specifications of vehicle manufacturers who can demand, for example, reading accuracy of +/- 0.1% in vertically and +/- 0.2% horizontally. The system can also be mounted on rails, which are available as an accessory. eLight is made in Italy to TEXA’s acclaimed standards of strength and quality.         An important extra: autodiagnostics Version ONE of eLight is designed to work with the AXONE Nemo 2 or AXONE 5 diagnostic tool and a TEXA Navigator interface, and adds headlight alignment functionality for garages who already own these tools. You can use IDC6 software to extend the potential of your eLight and to dialogue with the control units of all the electronic systems connected to the headlights in order to identify errors, read parameters and change settings as necessary. In practice, eLight’s integrated autodiagnostic functionalities are added to those of your existing TEXA diagnostic tool. Version ONED differs in having its own display based on a bright 7 inch swivelling TFT touch screen. This version can therefore serve as a stand alone tool, using its own built-in diagnostics. To extend functionality even further, however, ONE-D can also be connected to an existing TEXA diagnostic tool for use as part of an integrated system.     eLight ZERO eLight ZERO is the new entry-level digital headlight tester by TEXA, developed for inspection centres, body shop mechanics and vehicle repairers. It is able to interact with the MCTCNet2 networks* via LAN and with a thermal printer (optional). Thanks to the generously sized Fresnel lens (340×200 mm), it adapts to voluminous and irregularly shaped headlights guaranteeing the execution of all the checks related to the headlights that equip the vehicles. It has a lithium battery, a 5.7” colour TFT touch display and an aluminium unit transportable on wheels that make it practical and light. Measurable light sources:Halogen, Xenon, LED, Laser * MCTCNet2 approval release in progress         Enter the serial number of your product below:     Customer Service Team and technology at your service Exclusive services that allow you to make the most of its potentiality and receive continuous support by the TEXA Call Center’s team* of specialists.   This way your workshop can always keep up with the latest automotive technologies.   An extra ally for the daily work of vehicle repairers.* Verify the availability of SERVICER in your own country. Discover more Technical Specifications   WEIGHT52 kg DIMENSIONS770 x 730 x 1850 mm POSITIONING AND ALIGNMENTOn wheels or on track (optional). Manual alignment through lasers FLOOR LEVEL COMPENSATION SYSTEM3-axis accelerometer; ± 1,8° DISPLAY*7” TFT LED LCD 800 x 480 PRINTER (Optional)Thermal printer; 58 mm; 203 Dpi MEASURABLE LIGHT SOURCESHalogen, Xenon, Led, Laser TYPE OF MEASUREMENT (Reading and diagnosis) Low beams, High beams, Fog lights, ILS, DLA, Matrix CAMERA5 Mpixel POWER SUPPLY100-220V AC 50/60Hz 700 mA BATTERY OPERATING TIME8 hours CONSUMPTION0,5 Ah ALIGNMENT DEVICETYPE: LaserClass: IIWavelength: 635 nmPower: ≤ 5,0 mW TILT ANGLEMeasuring range ± 6% vertical; ± 10% horizontalAccuracy ± 0.1% vertical; ± 0.2% horizontal LUMINOUS INTENSITYMeasuring range 150,000 cd – 240 Lux/25 mAccuracy ± 5% CONNECTIVITY LAN, Wi-Fi, RS232, Bluetooth *Only ONED version
