TEXA DoIP NODE

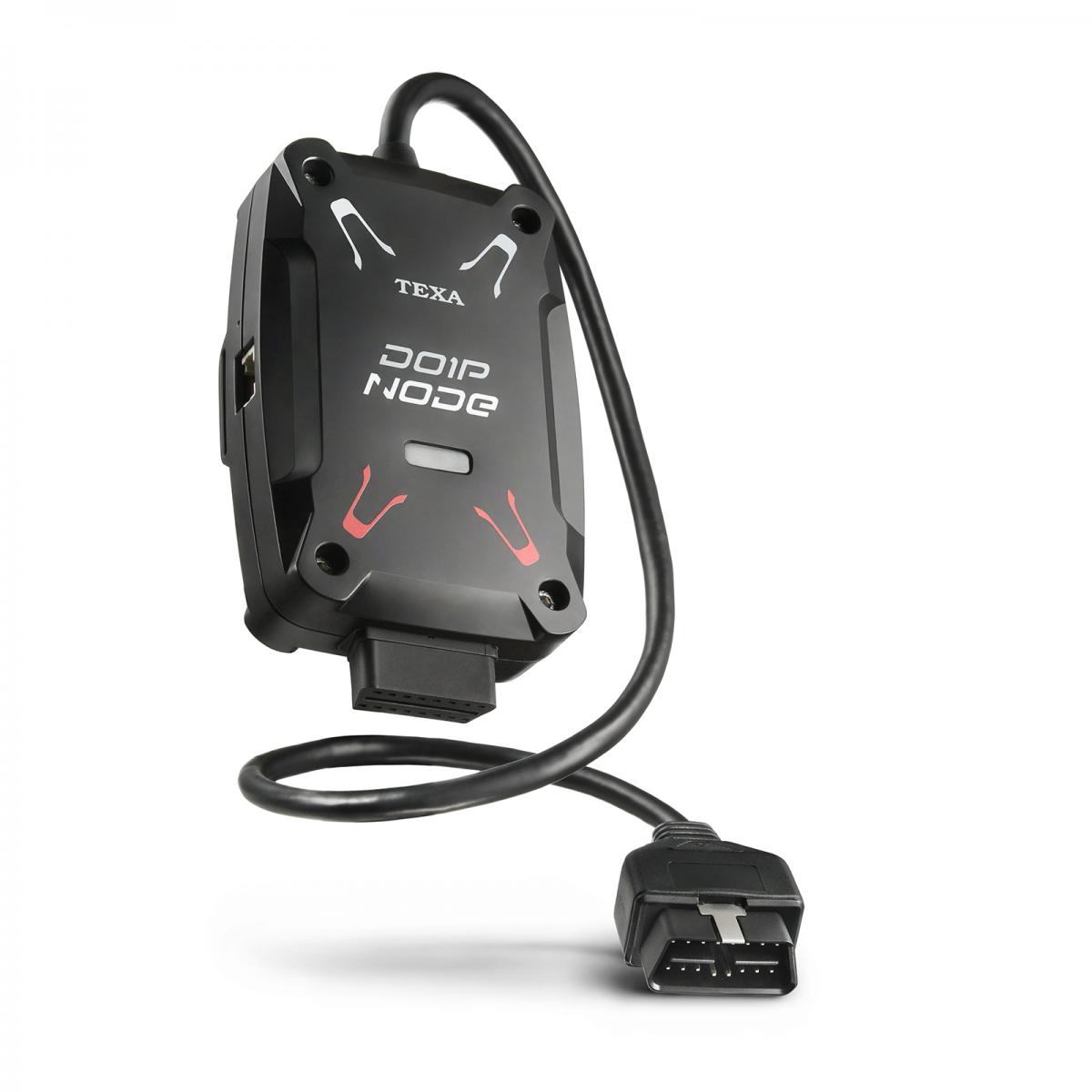

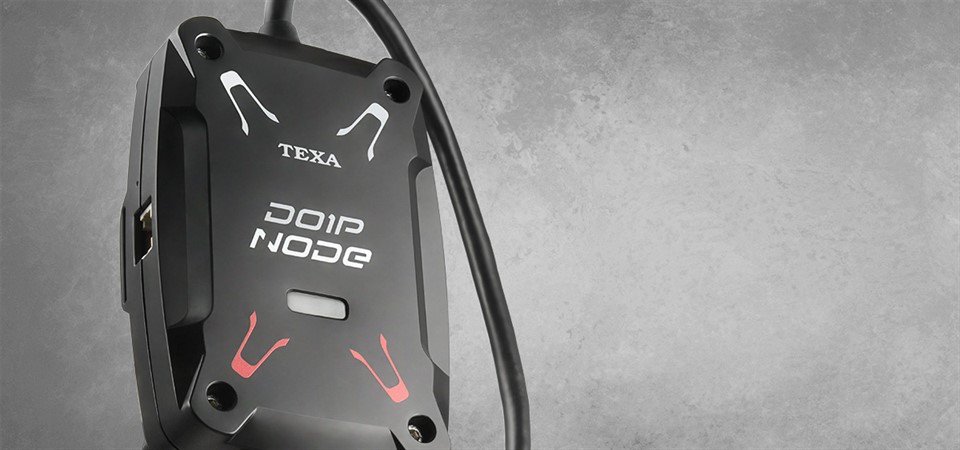

TEXA DoIP NODE Diagnosis over Internet Protocol DoIP NODE DoIP NODE is the multi-brand adapter developed by TEXA, which allows carrying out high-speed DoIP (Diagnosis Over Internet Protocol) diagnostic operations on vehicles equipped with an Ethernet communication BUS, a new architecture that manufacturers are beginning to implement along with the traditional CAN-BUS line. The use of the DoIP NODE represents a great advantage for mechanics, as they do not have to replace the TEXA instrumentation they already own, but simply integrate its operation using it when the vehicle they are working on requires it. Its reduced dimensions (90 mm x 135 mm x 34 mm) allow inserting it between the traditional OBD socket and the NAVIGATOR TXTs or Navigator NANO S interface and each time it identifies which protocol the vehicle uses. The brain in TEXA’s diagnostics The IDC6 software is complete, practical, intuitive and extremely quick to access communication with the vehicles. It guides you through all the diagnostic phases, from the error identification to its solution.Always in a practical, safe, professional way. Technical Specifications   MANUFACTURERTEXA S.p.A. PRODUCT NAMEDoIP NODE POWER SUPPLY12 – 24 Vdc from the vehicle battery through the OBD socket ABSORPTION500 – 900 mA (12 – 24 Vdc) WIRELESS PERIPHERAL DEVICESWiFi IEEE 802.11 b/g/n 2.4 GHz OPERATING FREQUENCY BAND2400 ÷ 2483.5 MHz MAXIMUN RADIO FREQUENCY POWER TRANSMITTED10 dB OPERATING TEMPERATURE0 °C ÷ 50 °C STORAGE TEMPERATURE– 20 °C ÷ 60 °C STORAGE AND OPERATION MOISTURE10 % ÷ 80 % without condensation DIAGNOSTIC CONNECTORS• Male OBD x1• Female OBD x1• RJ45 x1 (2000 mm unshielded cable) FEMALE OBD ABSORPTION (output)12 – 24 Vdc 500 mA max RJ45 ABSORPTION (output)3.7 Vdc 10 mA max USER INTERFACE3 bicolour LEDs
