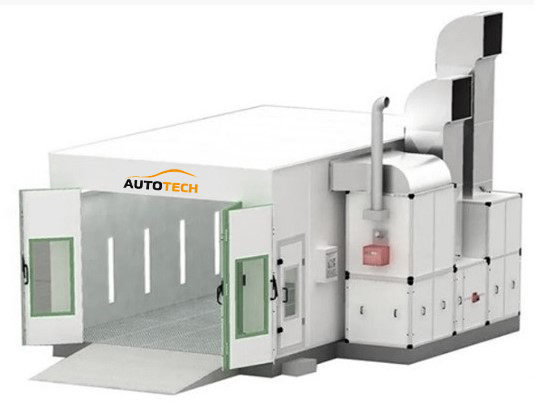

PROFESSIONAL CAR SPRAYBOOTH AUTOTECH JZJ-FB

- External dimensions (m): Length 7.43 / Width 5.83 / Height 3.75
- Internal dimensions (m): Length 7.30 / Width 4.20 / Height 3.00

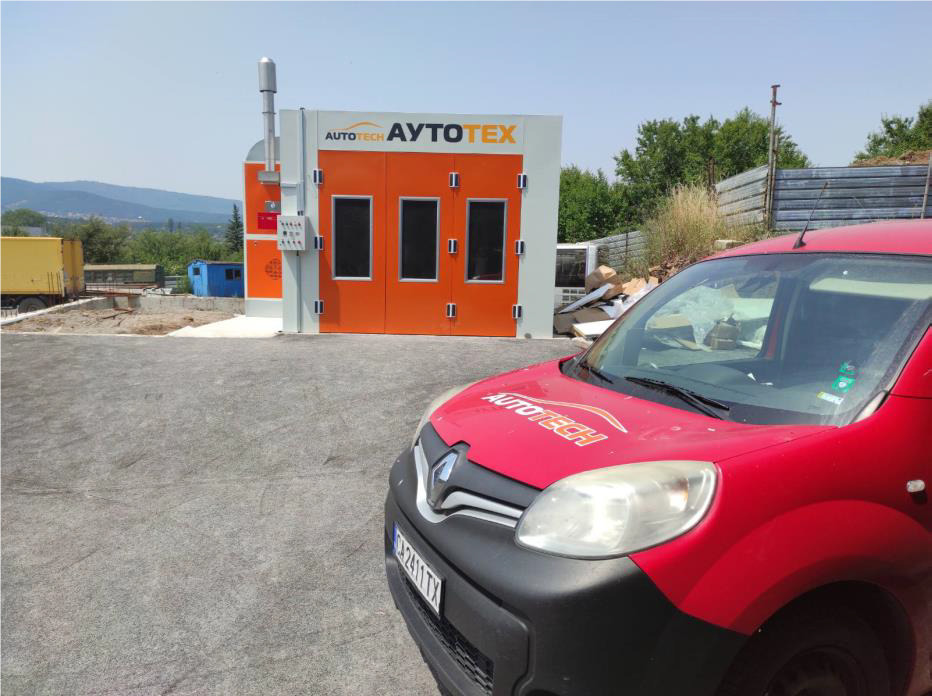

- Front door: four-leaf entrance door with dimensions 3.20 x 2.80 m., powder-coated, equipped with an anti-panic system and observation windows made of 5 mm thick tempered glass, with a highly reliable locking system.

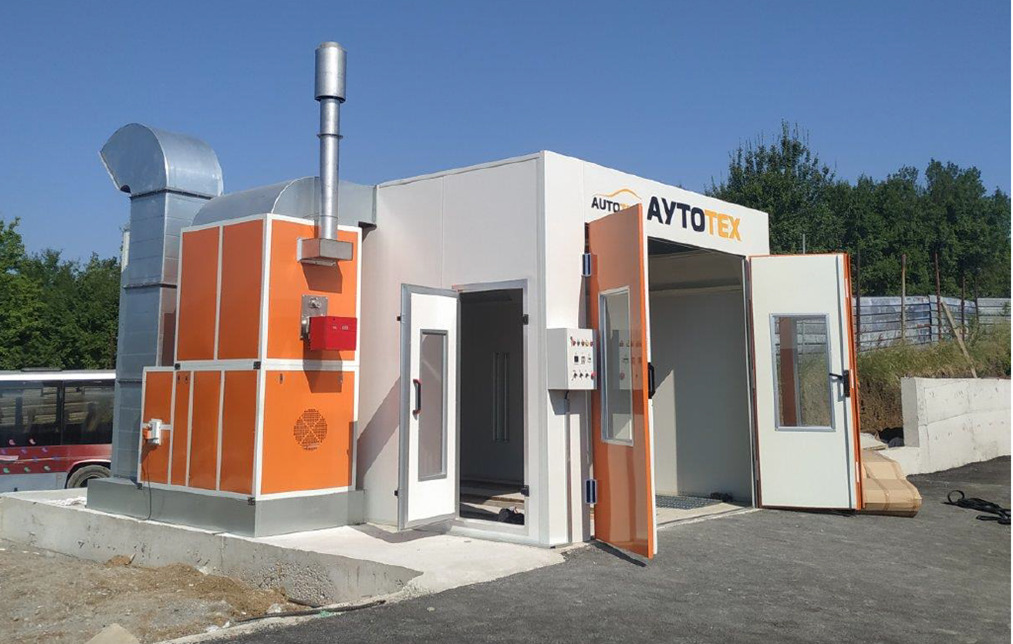

- Side service door with dimensions 800 x 2000 mm., powder-coated, equipped with an anti-panic system and window, with protection against excessive pressure.

- Walls with thermally insulated mineral wool panels, 60 mm thick

- Centrifugal turbines, for the inlet and outlet air, 2 pieces with an air flow rate of 25,000 m3/h each, 7.5 kW power. Air speed >= 0.25 m/s.

- Metal floor with a height of 300 mm. Three rows of grates and three ramps each with dimensions of 2000 x 900 mm.

- Rielo burner, type G20. Maximum temperature 800C, with a maximum heat generation of up to 180,000 kcal; the heat exchanger is made of high-quality SUS304 stainless steel with argon welds.

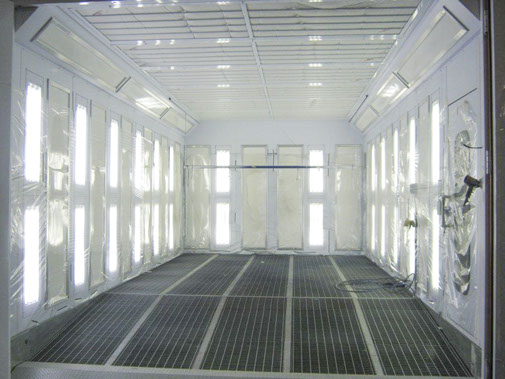

- LED lighting:

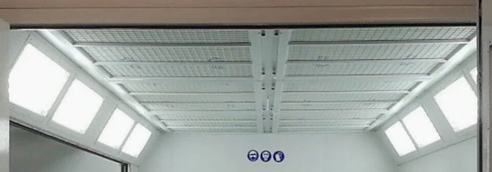

--Ceiling lighting: 10 hermetically sealed fixtures, each with 40 lighting elements.

-- Side lighting: 8 hermetically sealed fixtures, each with 16 lighting elements.

-- Total illumination ≥ 900 Lux

-- Total power = 18 kW

- Electromechanical control panel for the chamber (start/stop, lighting, burner, motors, fans, flaps), with paint firing switch, emergency stop switch, failure alarm, pressure gauge, cumulative time, etc.

- Automatic temperature control

- Power supply: 380V/3P/50HZ

- Warranty period: 12 months
