MCT / MAHA COMBI TESTER

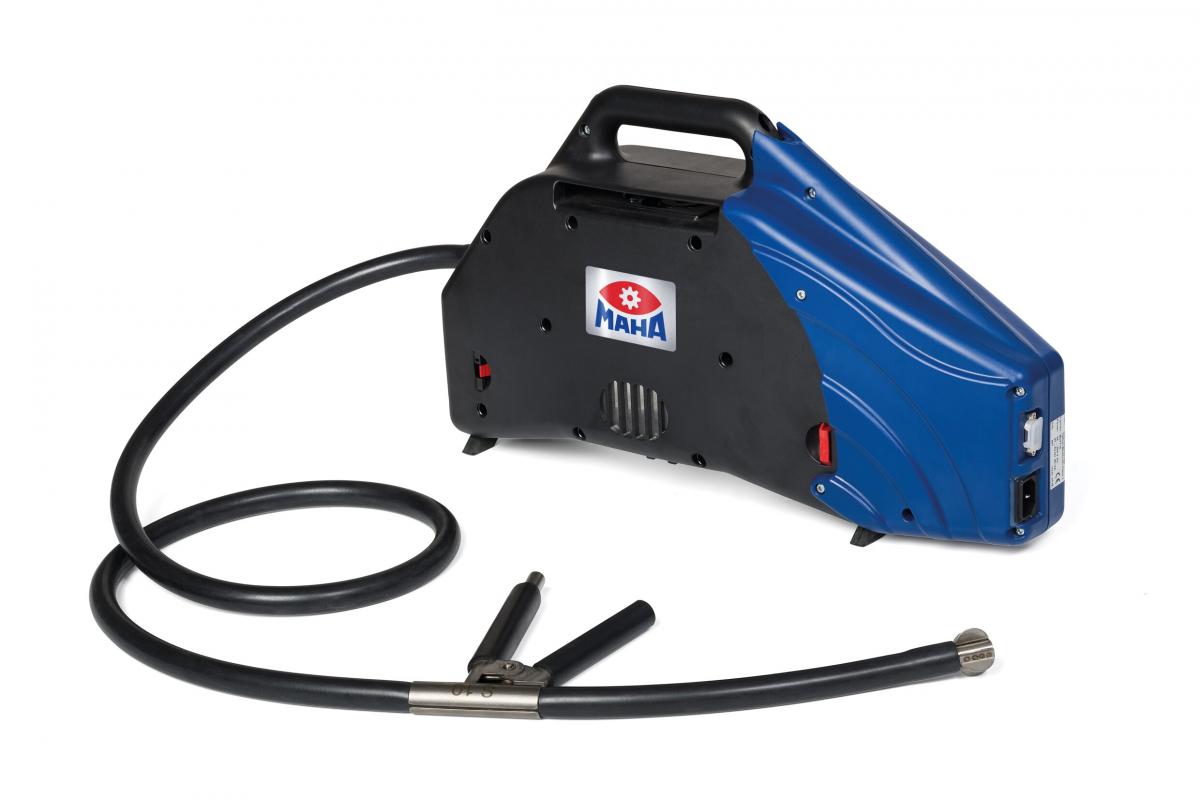

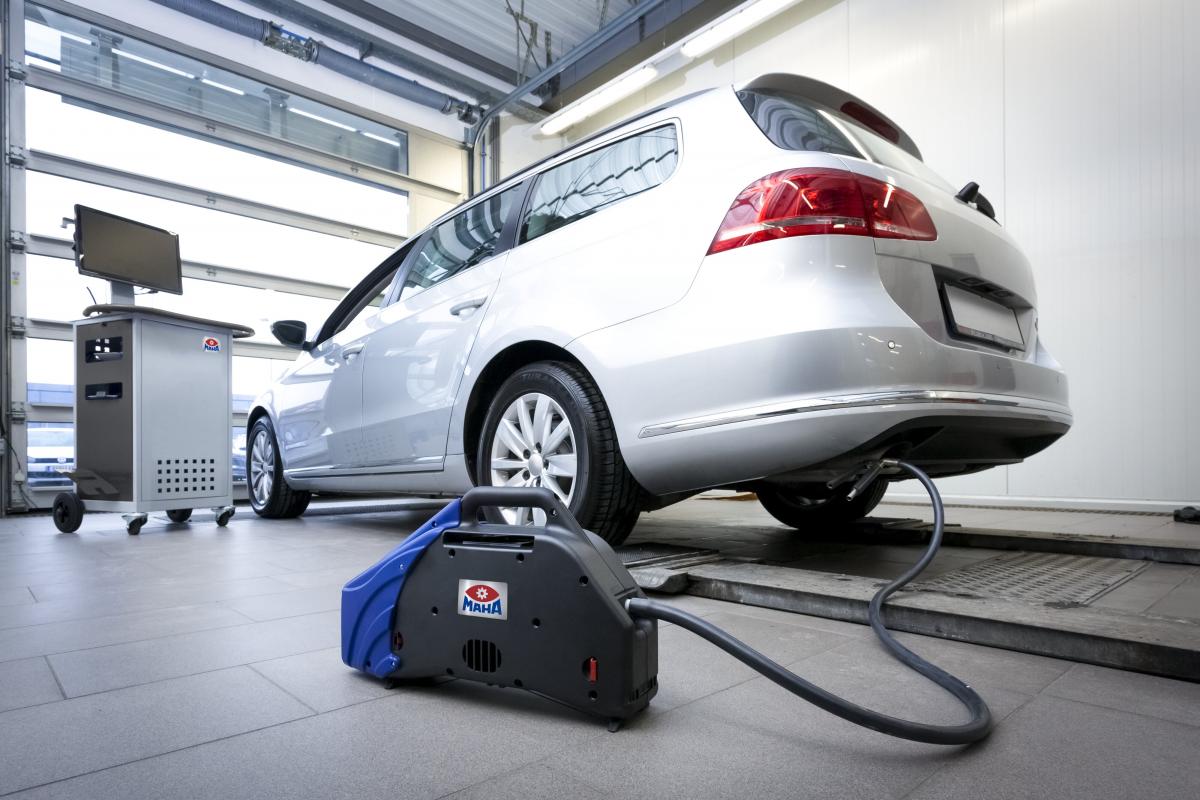

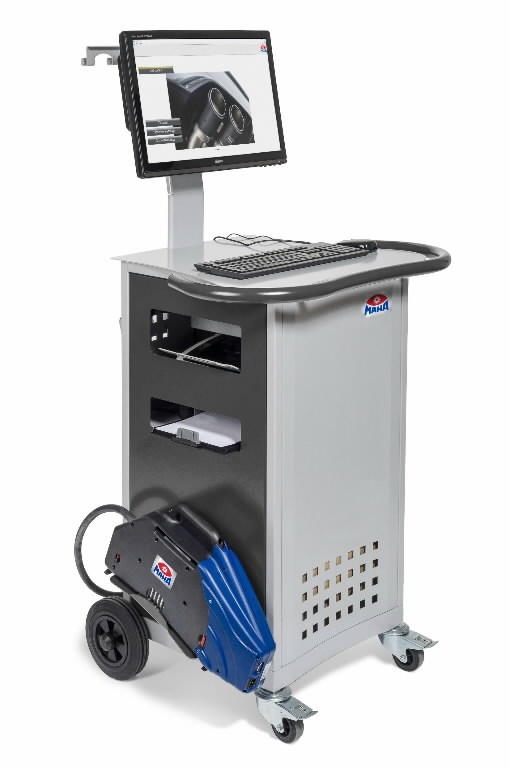

The MAHA Opacimeter on trolley is used for the measurement of diesel vehicles. The smoke opacity is tested and diagnosed in a time-saving and trouble-free manner in a partial flow procedure during free acceleration or under load of the engine. Rapid readiness for measurement and precise measurement results are the distinguishing features of the MAHA Opacimeter. Type-tested according to PTB requirements 18.09. PRODUCT DETAILS / SCOPE OF DELIVERY  Description: Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine Short warm-up time Intuitive operation, clear emission test structure Low maintenance Bluetooth interfaces, USB connection optional Scope of delivery: Opacimeter basic device in high-quality plastic casing Bluetooth interface Exhaust gas sampling probe 600 mm, 2000 mm probe hose AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm Trolley Technical Data: Measurement principle absorbance measurement Operating conditions:   Temperature 5°C to 40°C Power supply 110-230V 50/60 Hz Dimensions (L x W x H) 395 x 136 x 285 mm Weight . approx. 3.5 kg Maximum exhaust gas temperature 200°C Measuring range, opacity 0-99.9% Resolution, opacity 0.1% Measuring range, absorption coefficient 0-9.99 m-1 Resolution, absorption coefficient 0.01 m-1
