MBT 6200 LON W CLASSIC

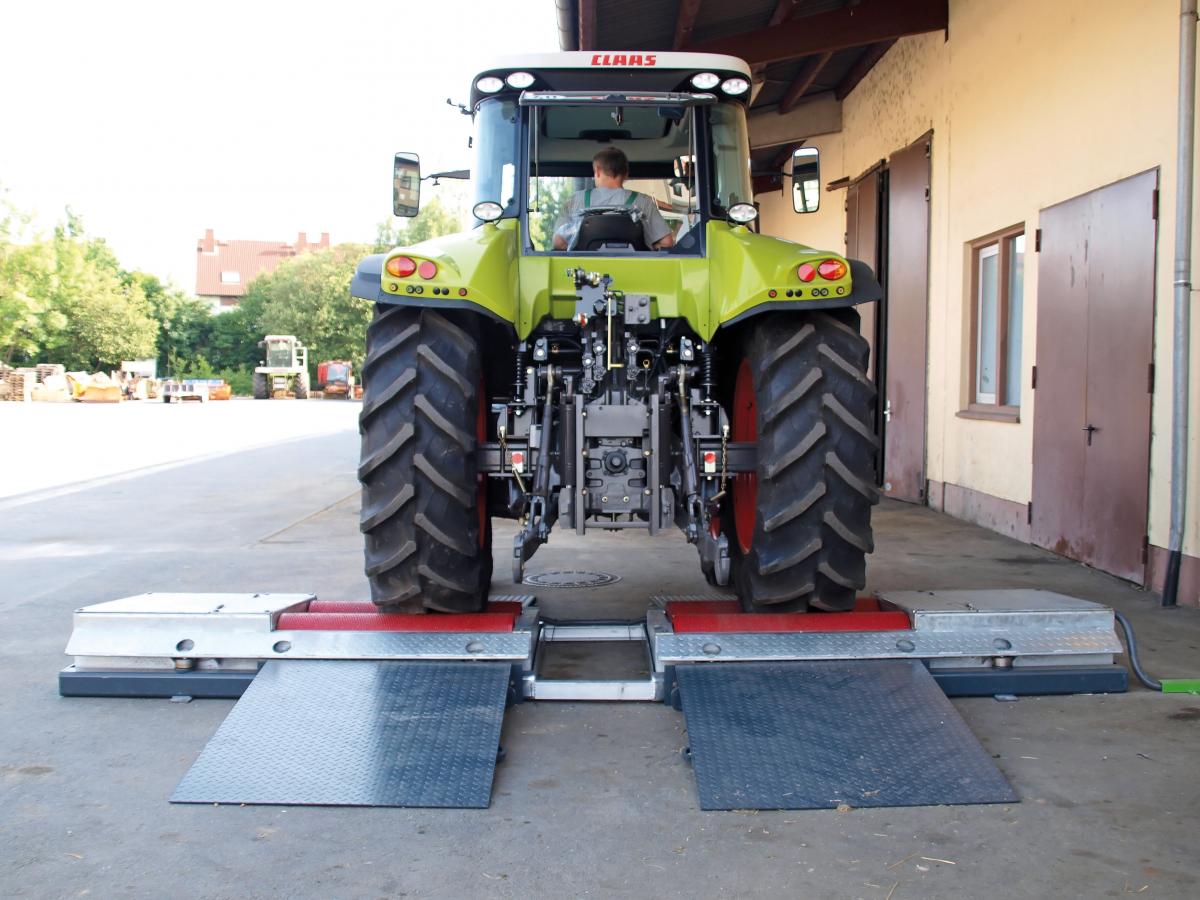

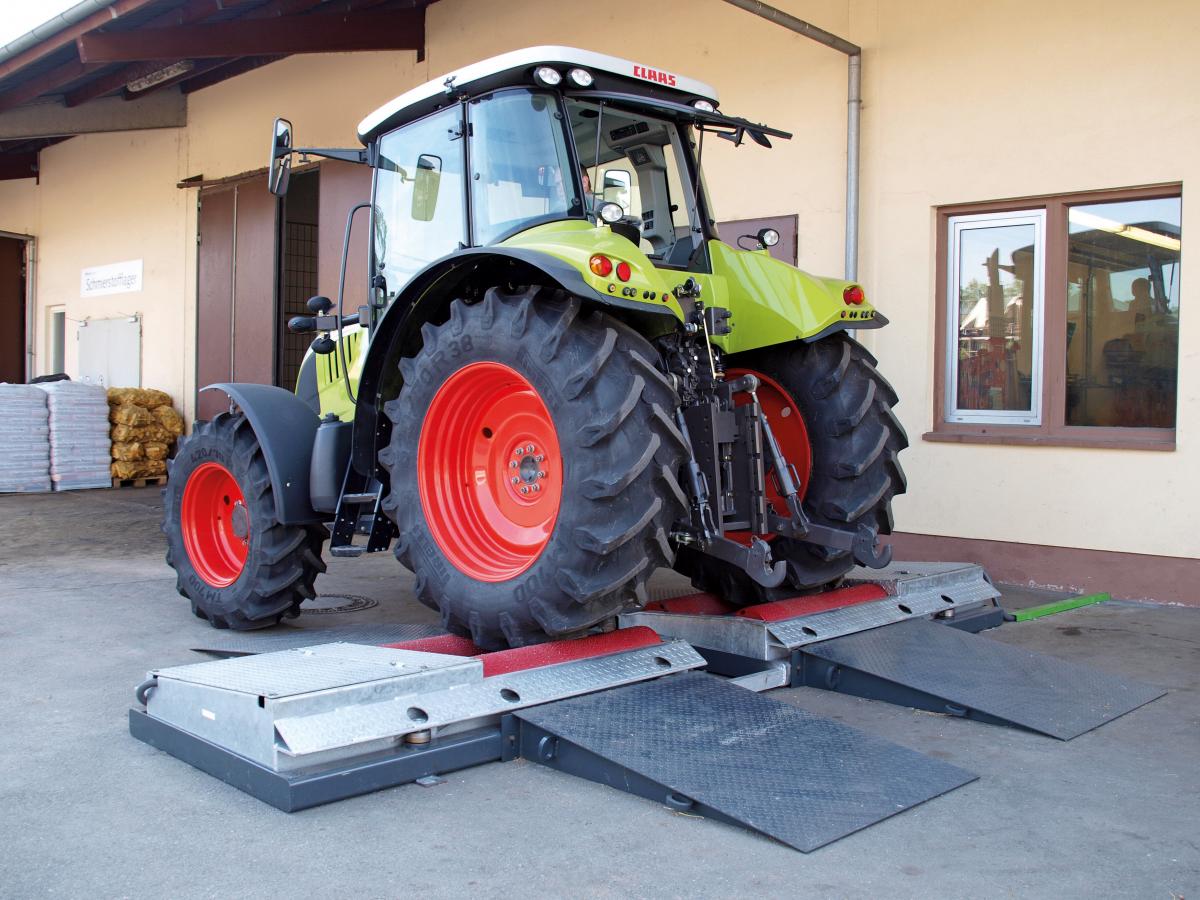

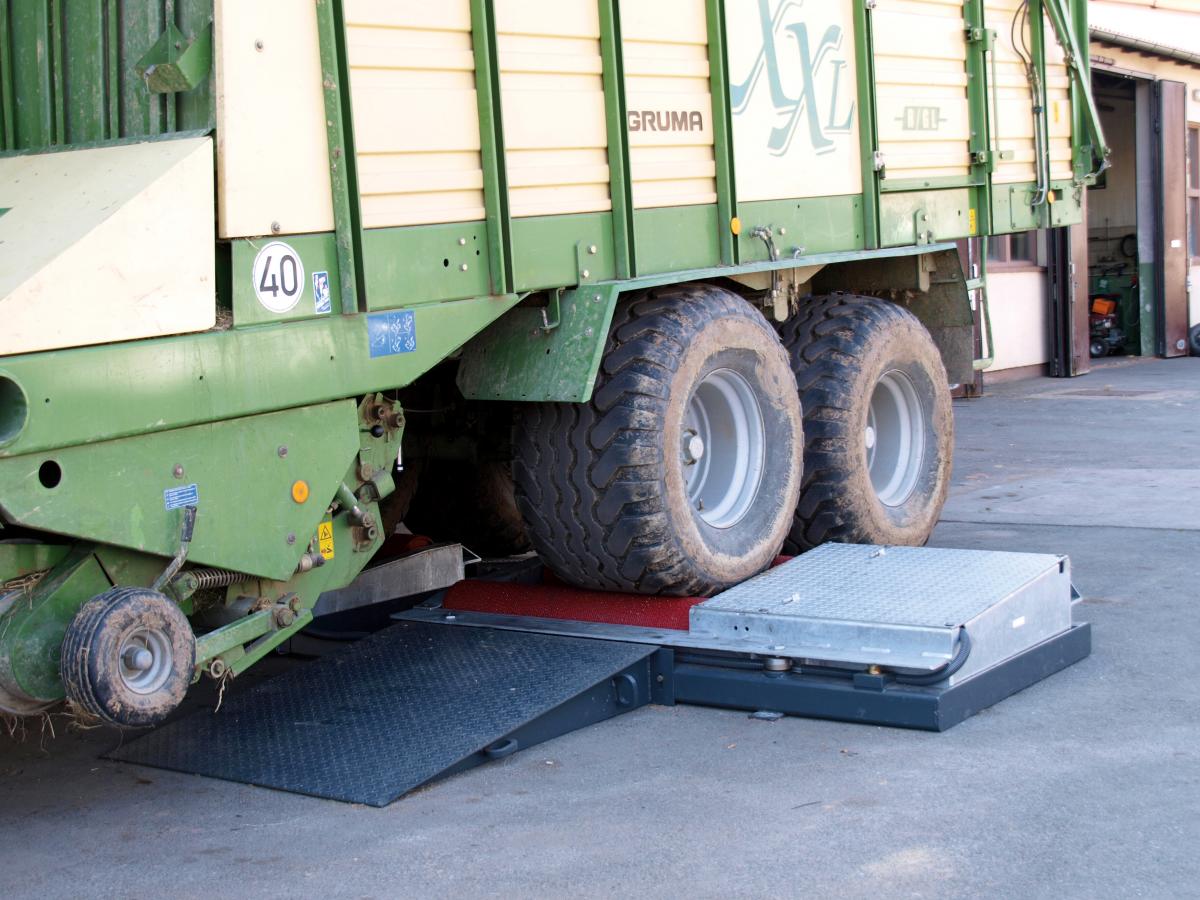

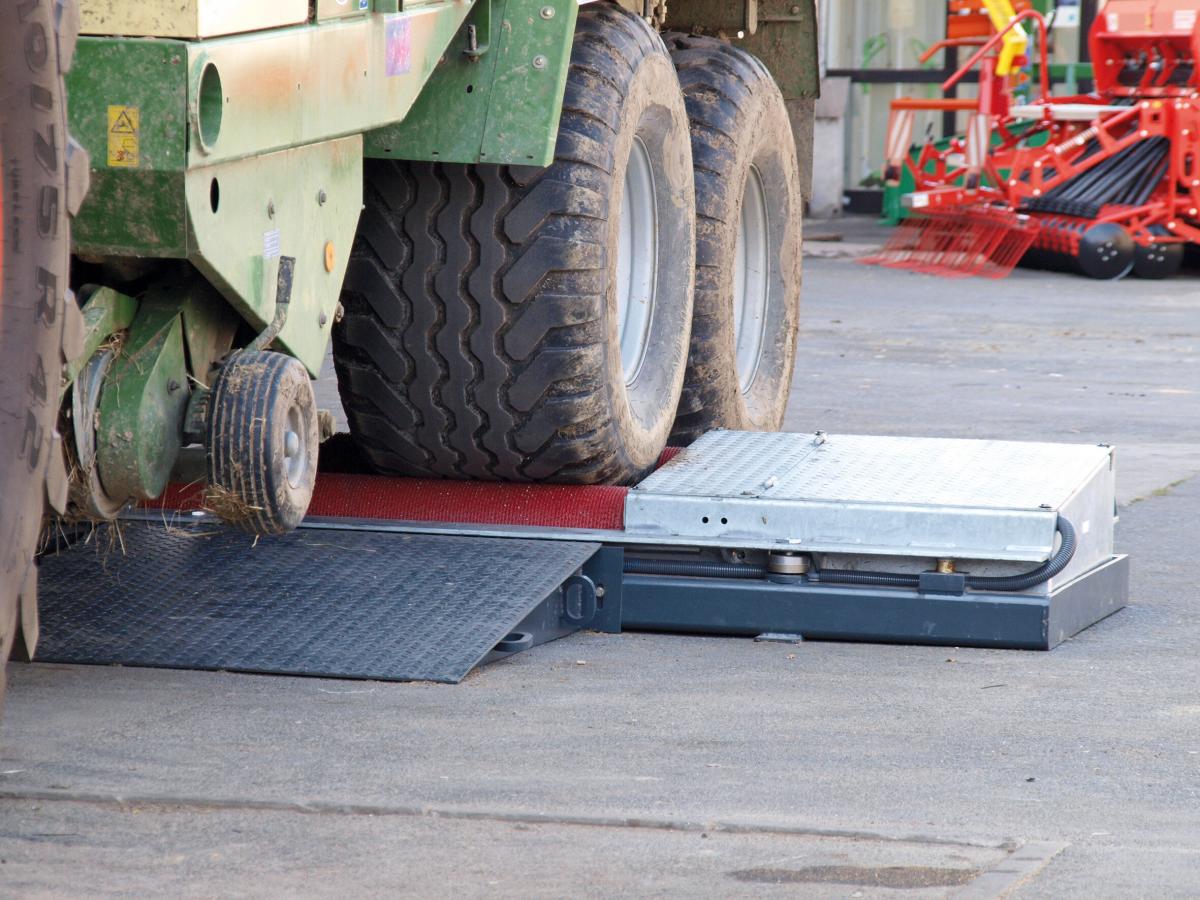

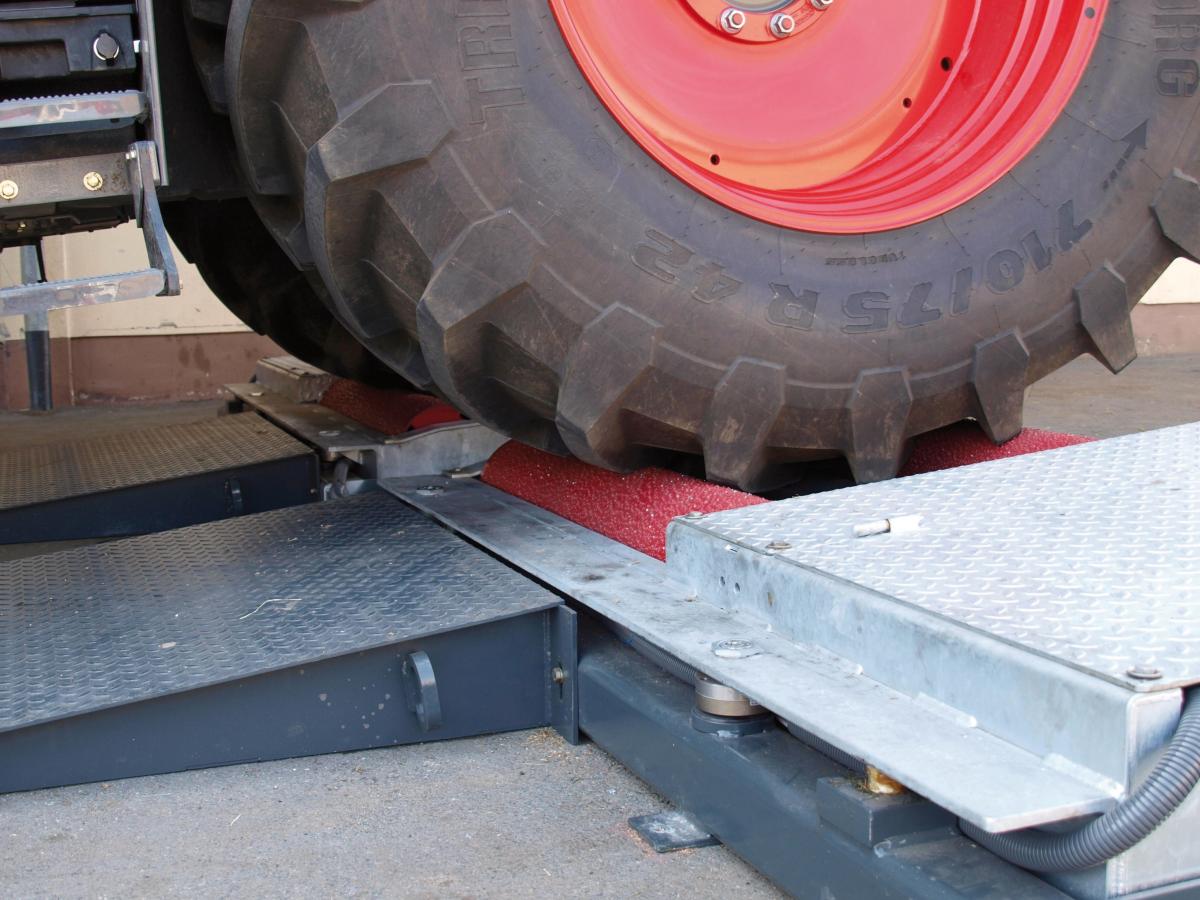

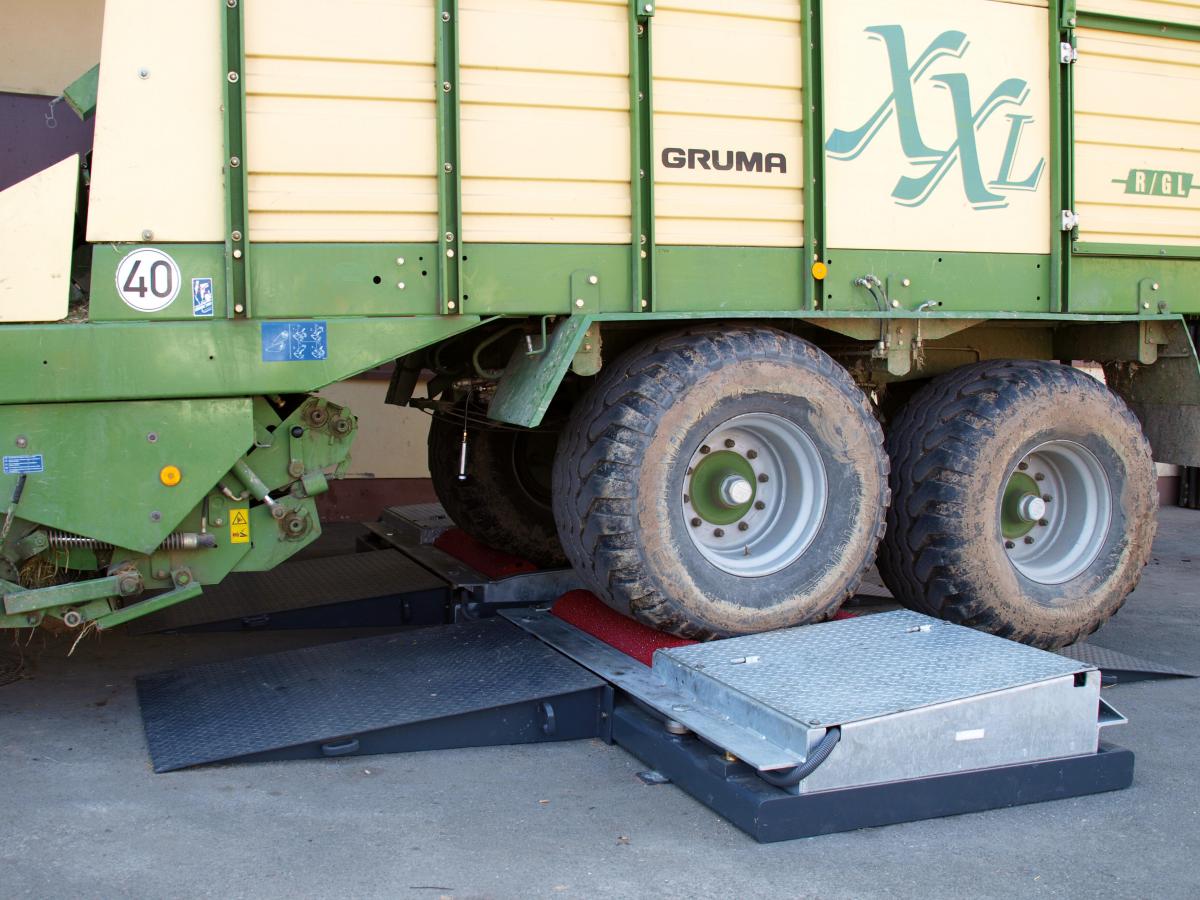

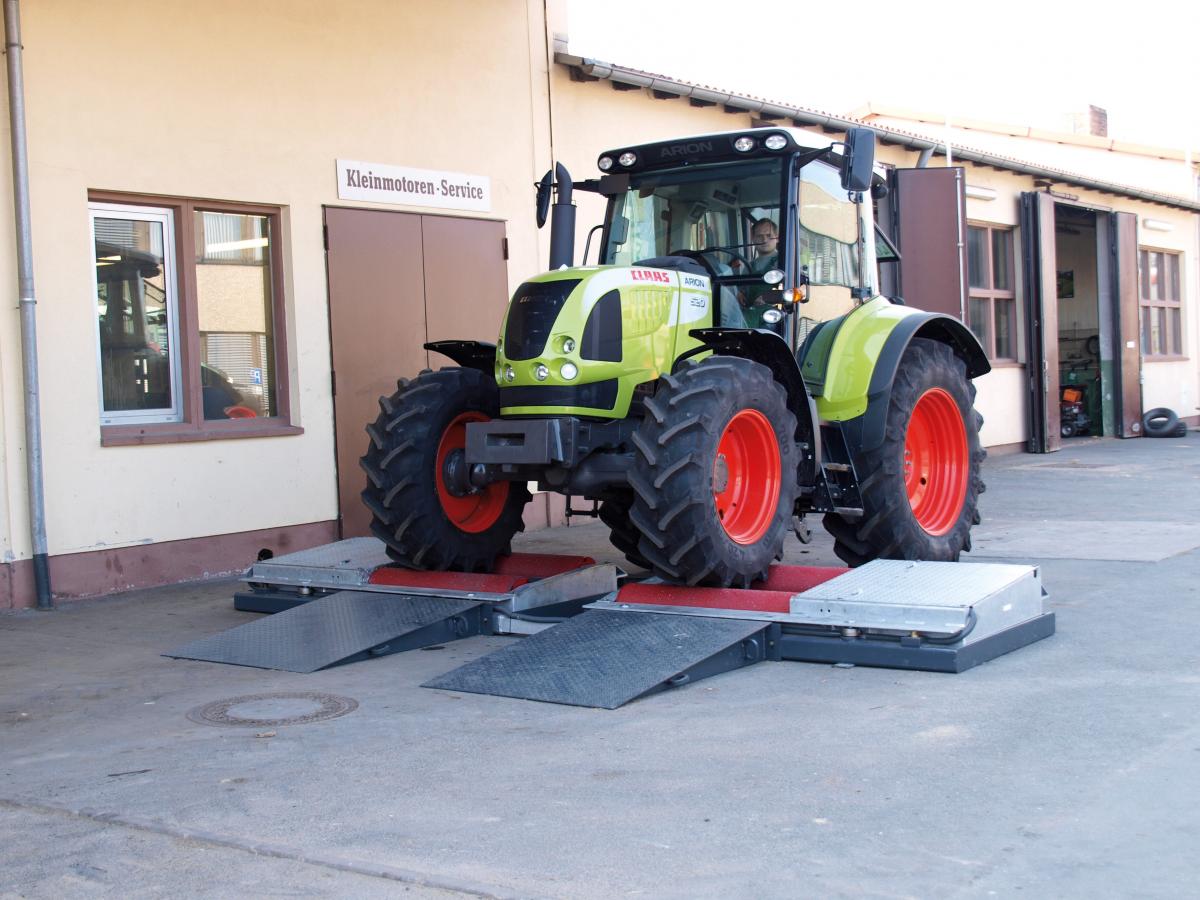

The roller brake tester MBT 6200 LON W CLASSIC is designed for the brake testing of agricultural and special-purpose vehicles with axle loads of up to 18.0 t. It optimally meets the requirements of vehicles with large wheel dimensions thanks to the increased centre distance between rollers. In addition, the significantly raised test rollers prevent the wheel from jamming on the frame, even when testing vehicles with low-pressure tyres. Description of the MBT 6200 LON:Roller brake tester, particularly for agricultural vehiclesand special vehicles with an axle load of up to 18 t The large roller axle distance means it is designed particularly for agricultural vehicles or special vehicles with large wheel dimensions. The considerably elevated test rollers prevent the wheel from jamming on the frame, even when testing vehicles with low-pressure tyres DC brake supplied as standard makes it easier to drive on and off with the axle driven by the vehicle. Multi-analogue display with two pointer indicators   (Diameter: 2 x 350 mm)   - Measured value display 0 - 4 kN / 0 - 40 kN   Display option for: Brake tester Wheel arch tester Shock absorption tester Difference display (three-digit + LED bar) for displaying: Difference in braking force in % Difference in shock absorption in % Deviation in wheel arch in m/km Results evaluation using additional coloured LED bars User guidance using alphanumerical display Program control using 32-bit microprocessor electronics   enables the finest resolution for the measurement results   Dimensions of display (H x W x D) 910 x 870 x 300 mm   Comprehensive package of functions for professional testing, such as: Delayed automatic switch-on after entering the tester Automatic start-up monitoring supplied as standard to avoid tyre damage Automatic slip cut-off with pointer stop and automatic restart already included as standard Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester Automatic cut-off after exiting the tester Single-wheel switching for differentiated consideration of each wheel   Robust and long-lasting design due to: Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions Roller surface welded Optional, free plastic coating on the test rollers 32-bit microprocessor electronics for process control and monitoring of all the safety functions Lockable main switch RS 232 interface connection Splash-proof motors work reliably, even under high-stress environmental influences Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester Internationally recognised TÜV certificate as per issue 9/2011 of the Verkehrsblatt [German Transport Gazette] Star-delta circuit to avoid high inrush currents Centre cover between the roller sets RS 1 roller set design with motors on the side Rear roller elevated by 50 mm - guarantees highly precise measurement results, particularly for trailer axles. Self-supporting divided roller set Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 Scope of delivery: Analogue display with two pointer indicators and an integrated switch cabinet MBT 6000 RS 1 roller set with preparation for weighing equipment Technical data: Axle load (can be driven over) 18000 kg Min. track 400 mm Max. track 3600 mm Drive power 2 x 11 kW Test speed 3 km/h Roller length 1600 mm Roller diameter 265 mm Roller axle distance 685 mm gG fuse 63 A Power supply 3/N/PE 400 V 50 Hz Dimensions of roller set (L x W x H) 5580 x 1340 x 370 mm
