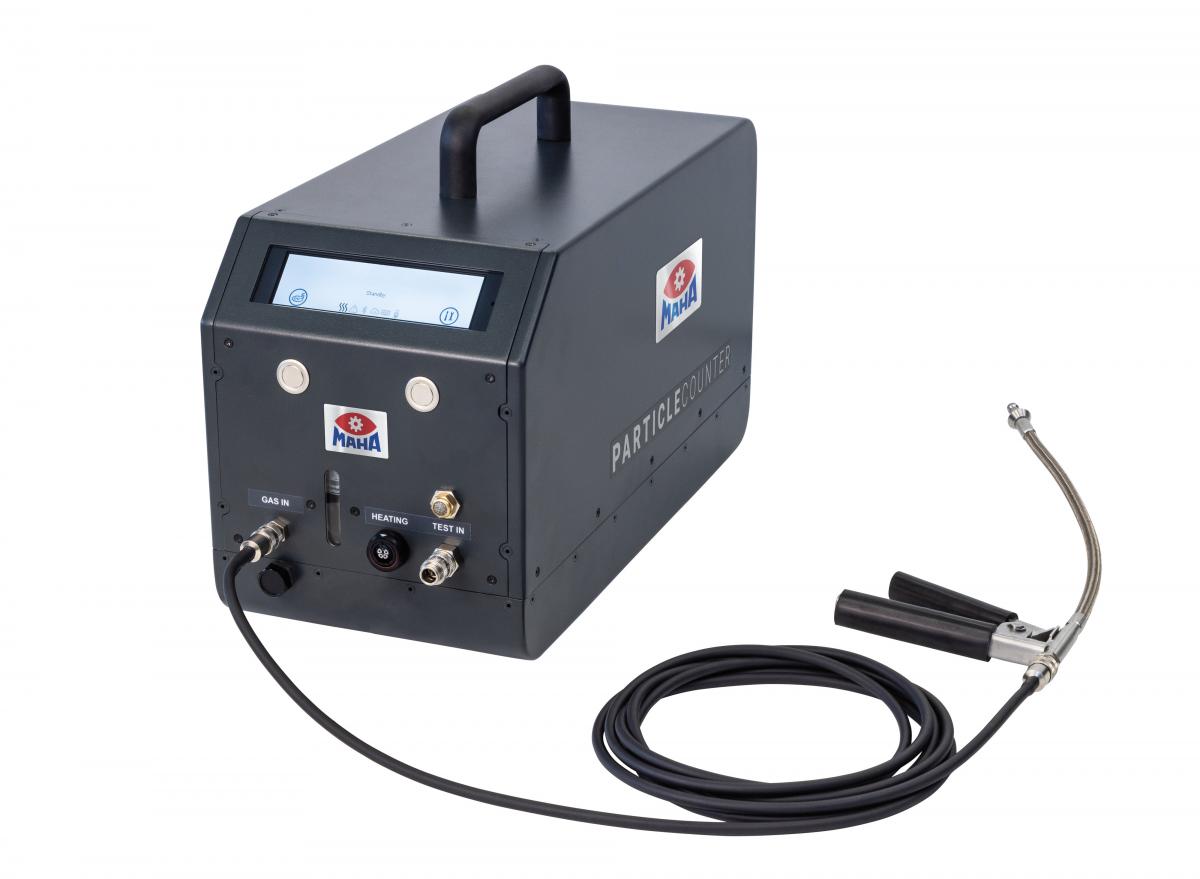

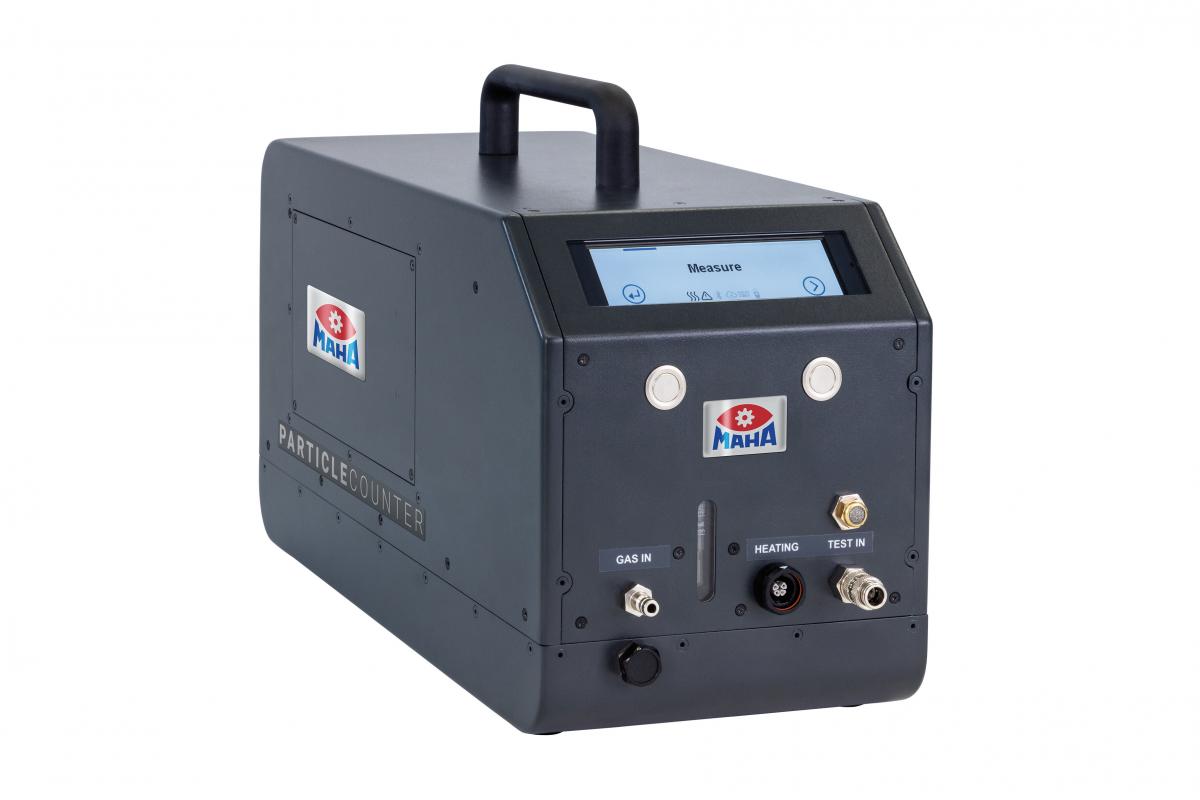

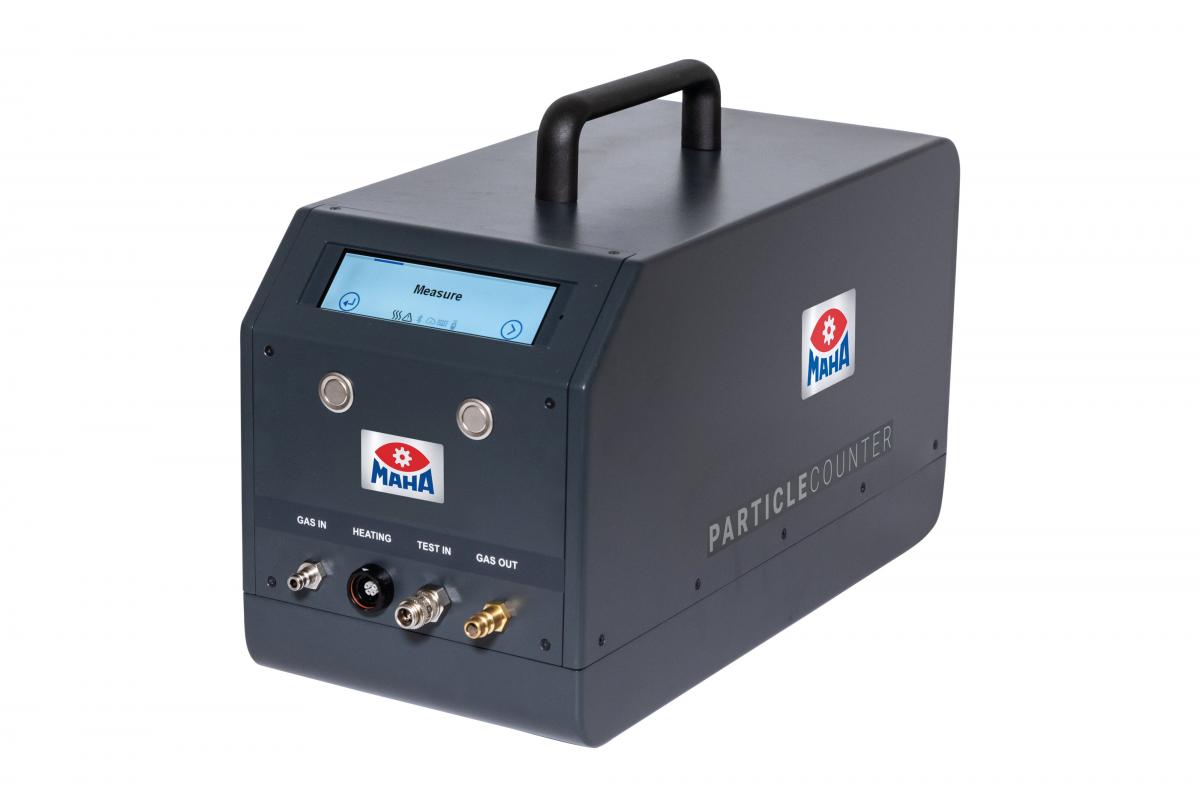

MAHA PARTICLE COUNTER

With the PARTICLE COUNTER emission tester, you can really count every particle. Compact, rugged design, clearly readable display, rapid readiness for measurement and precise measurement results are the distinguishing features of the MAHA particle counter. PRODUCT DETAILS / SCOPE OF DELIVERY   Description: Advanced Diffusion Charging measurement principle Particle counter with integrated display unit Time-saving and simple examination and diagnostics of particle count via partial flow method Low maintenance No consumables USB and Bluetooth interfaces Heat-up time < 4 min. DAkks-conform calibration acc. to ISO 17025 via EWR MESSGERÄTE GmbH Options: Connection to MES 7.51 (for Germany) Scope of delivery: Basic particle counter unit in high-quality metal casing Integrated display unit with keypad USB interface Bluetooth interface Packaging included Technical data: Measurement principle Advanced Diffusion Charging Heat-up time of measurement cell < 240 s Dimensions (LxWxH) 505 x 210 x 310 mm Weight approx. 8.5 kg Power supply 110-230 V/50/60 Hz Measurement range 0...10.000.000 #/cm3 Volatile particles Removing Efficiency > 95% Efficiency 23nm 5%: 0.2 - 0.6 . 50nm 5%: 0.6 - 1.3 . 70nm 5%: 0.7 - 1.3 Error (absolute) 10000#/cm3 Error (relative) 75% (of measured value) Measurement frequency 1 Hz
