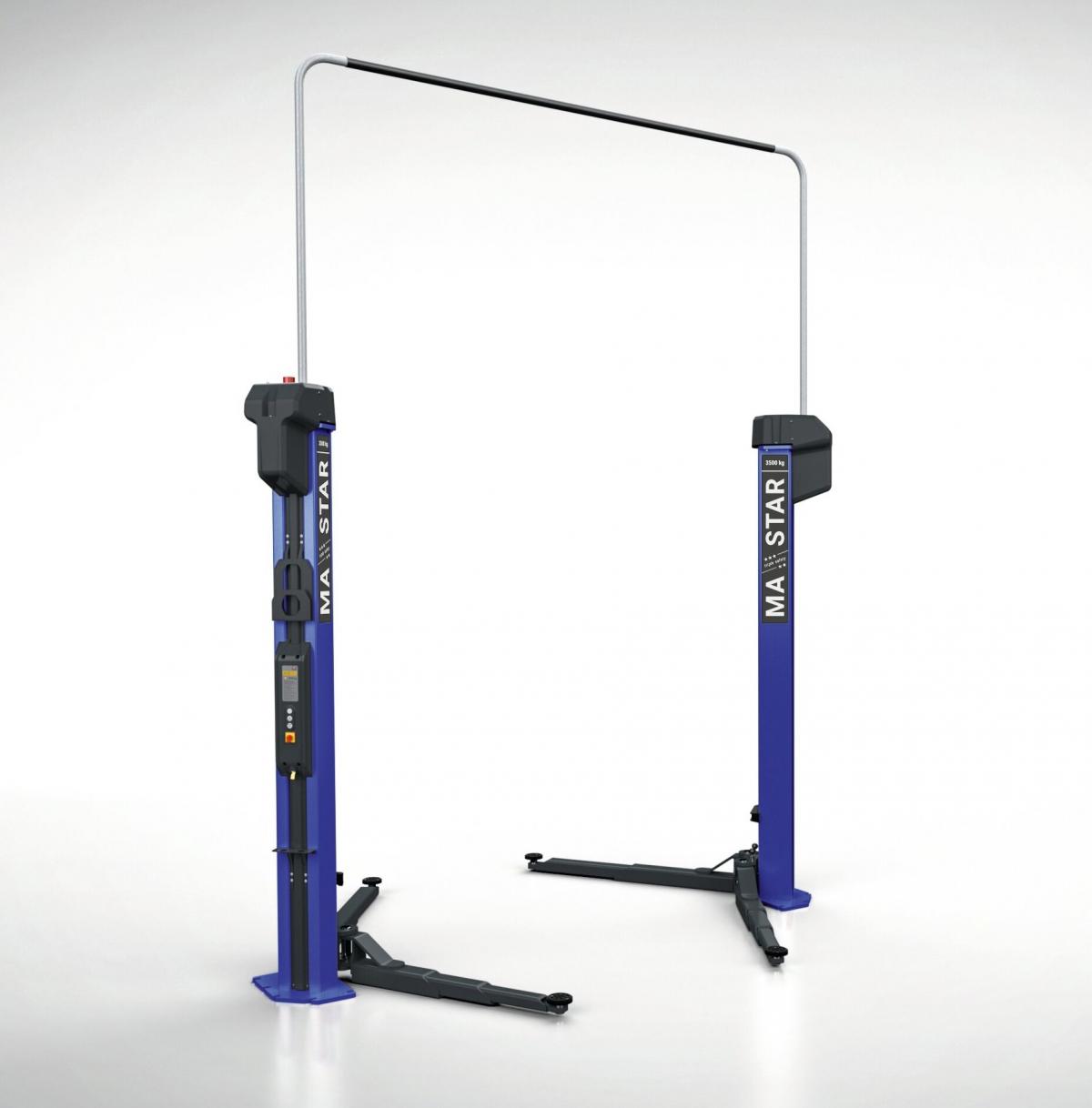

MAHA MA STAR 3.5

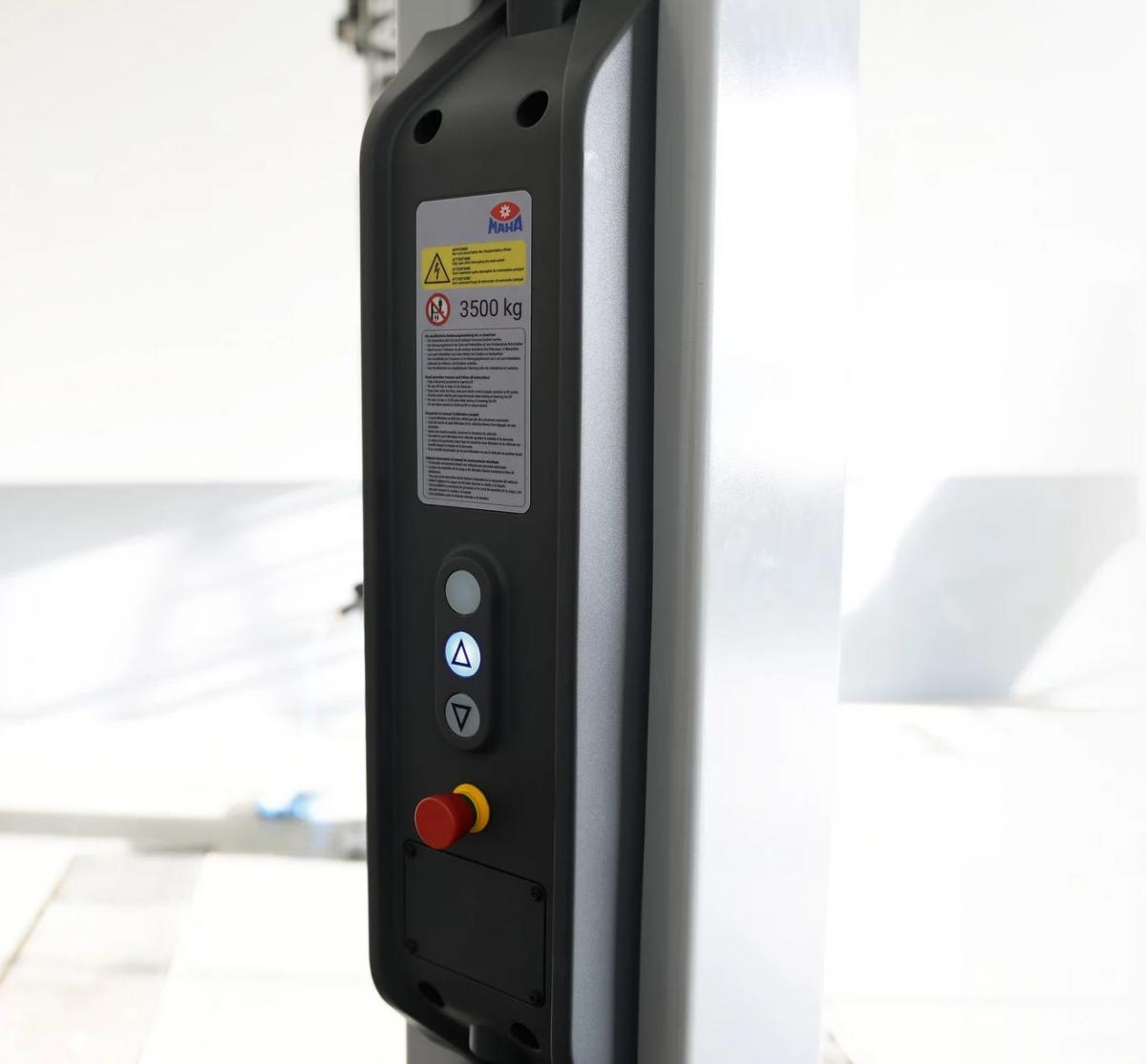

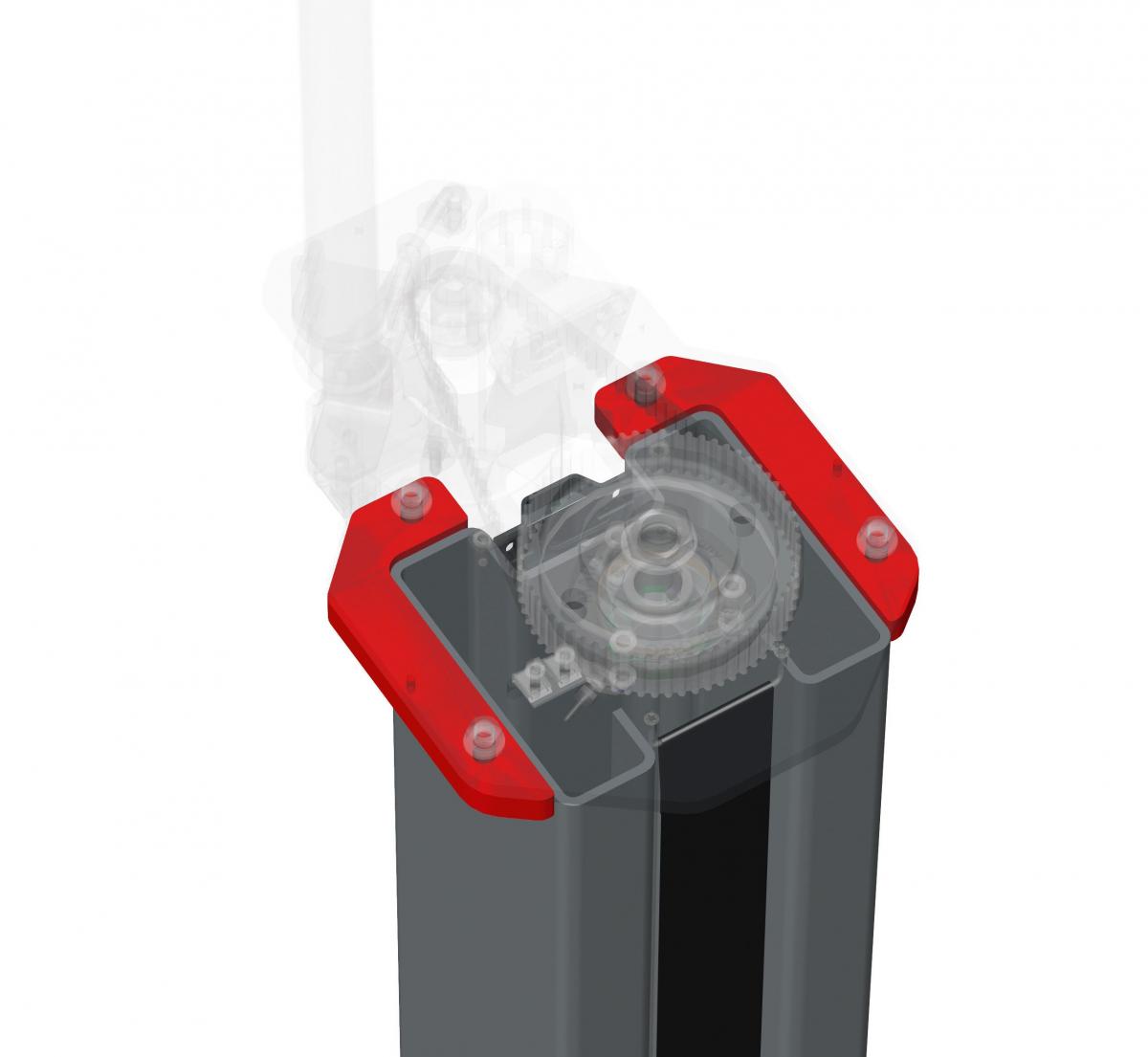

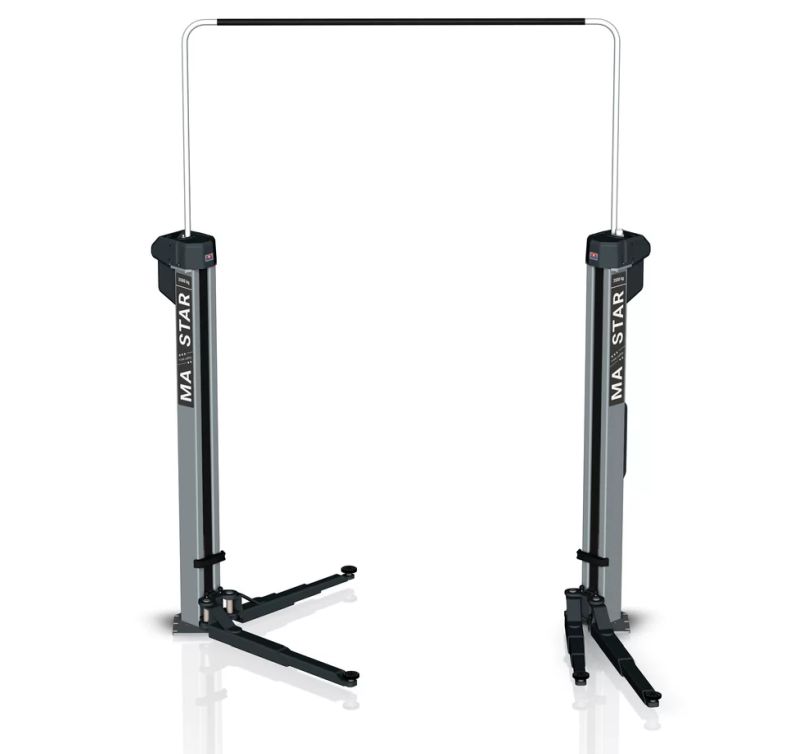

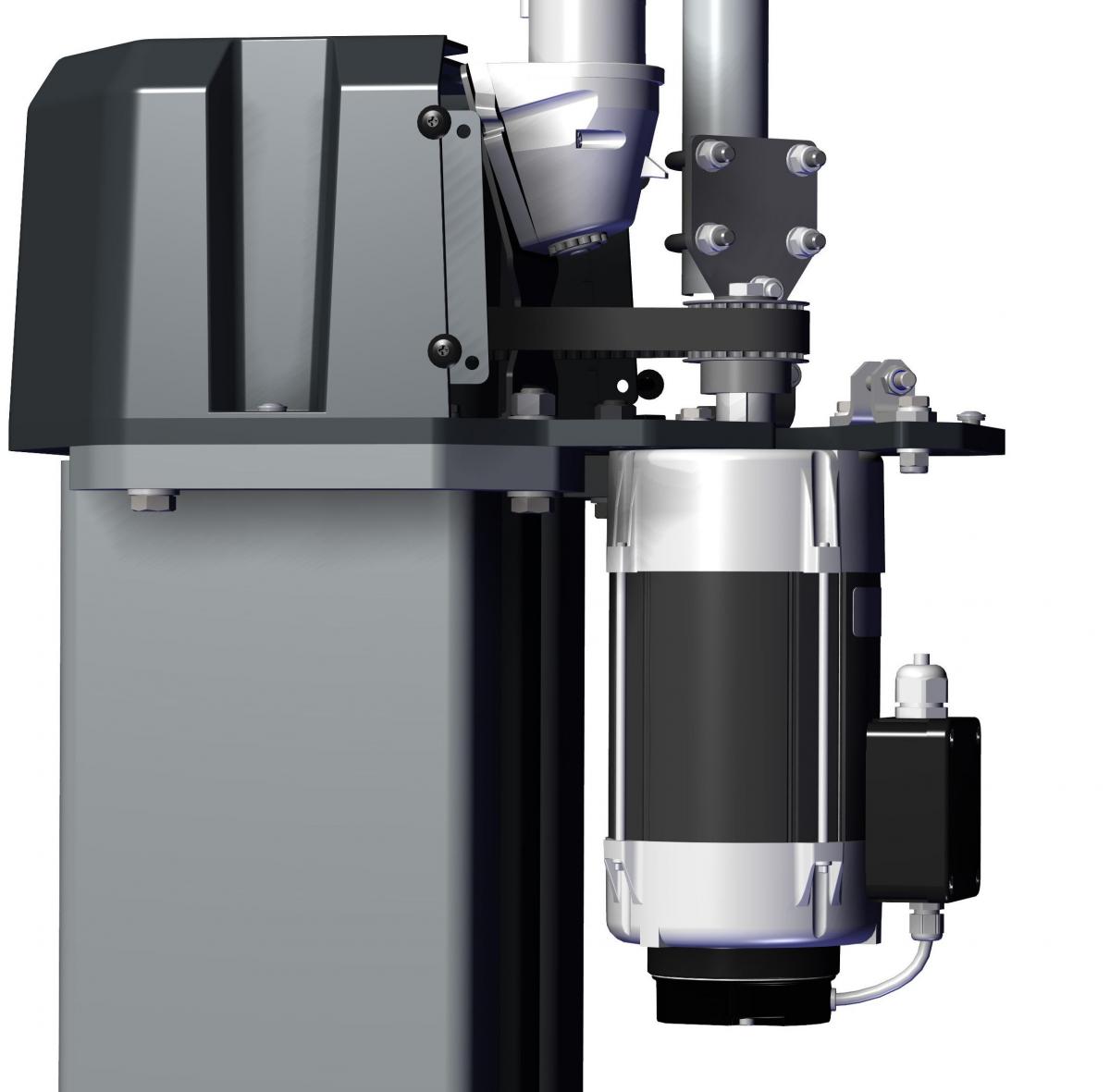

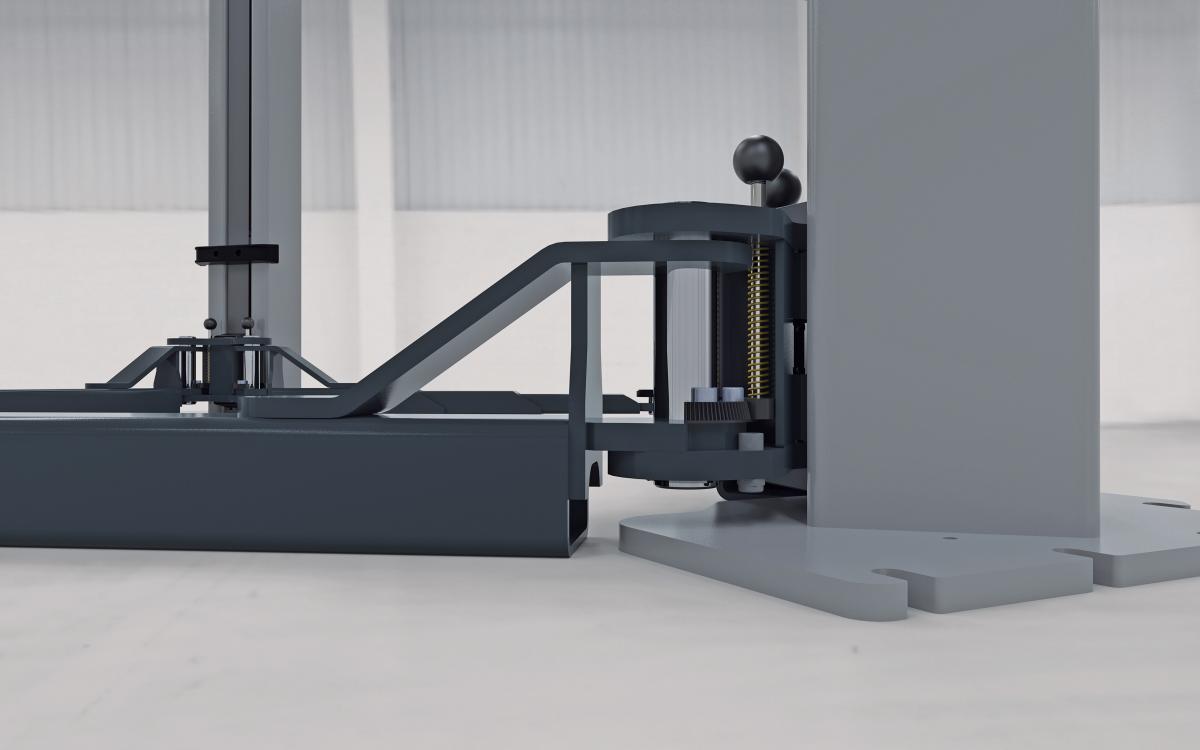

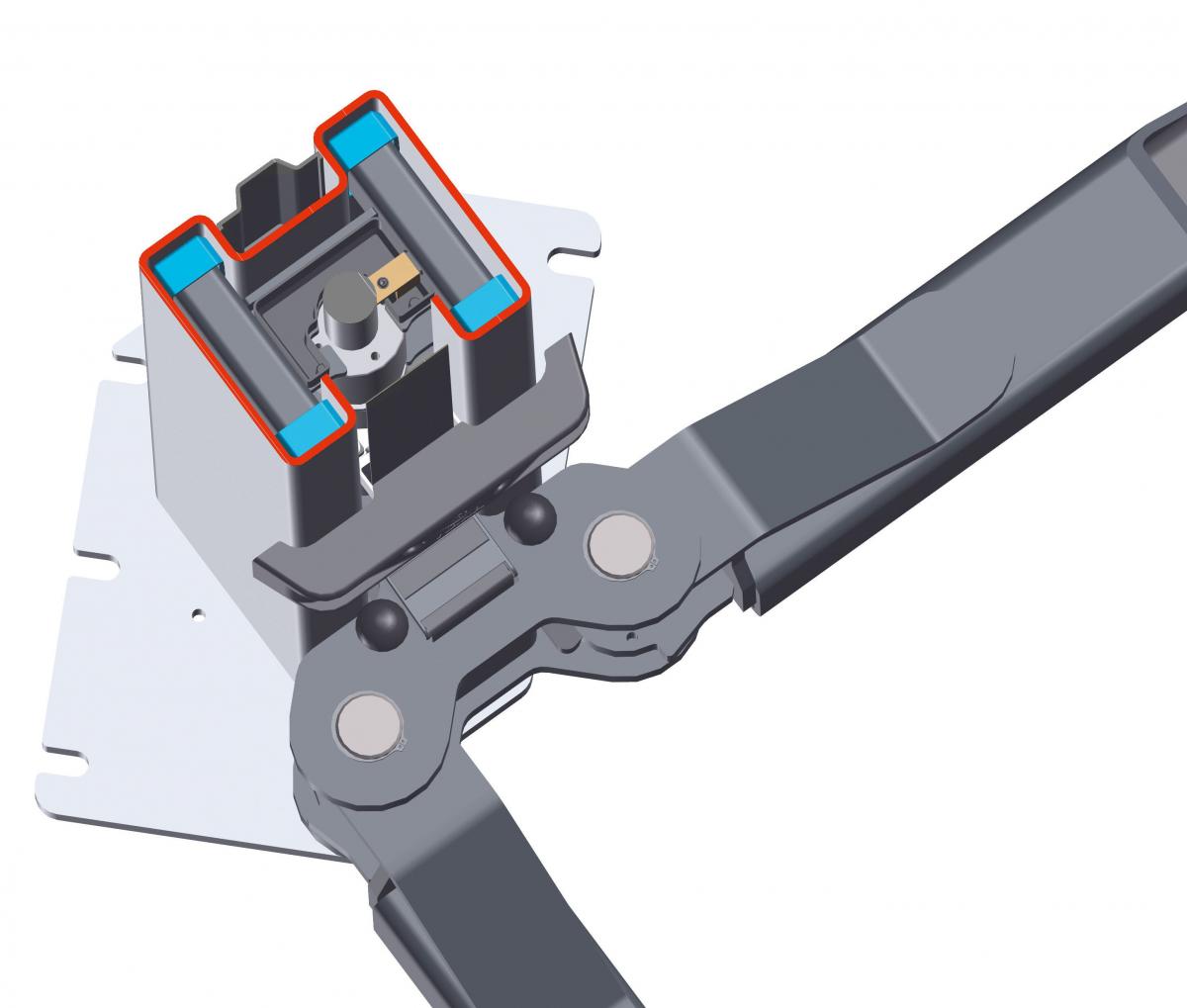

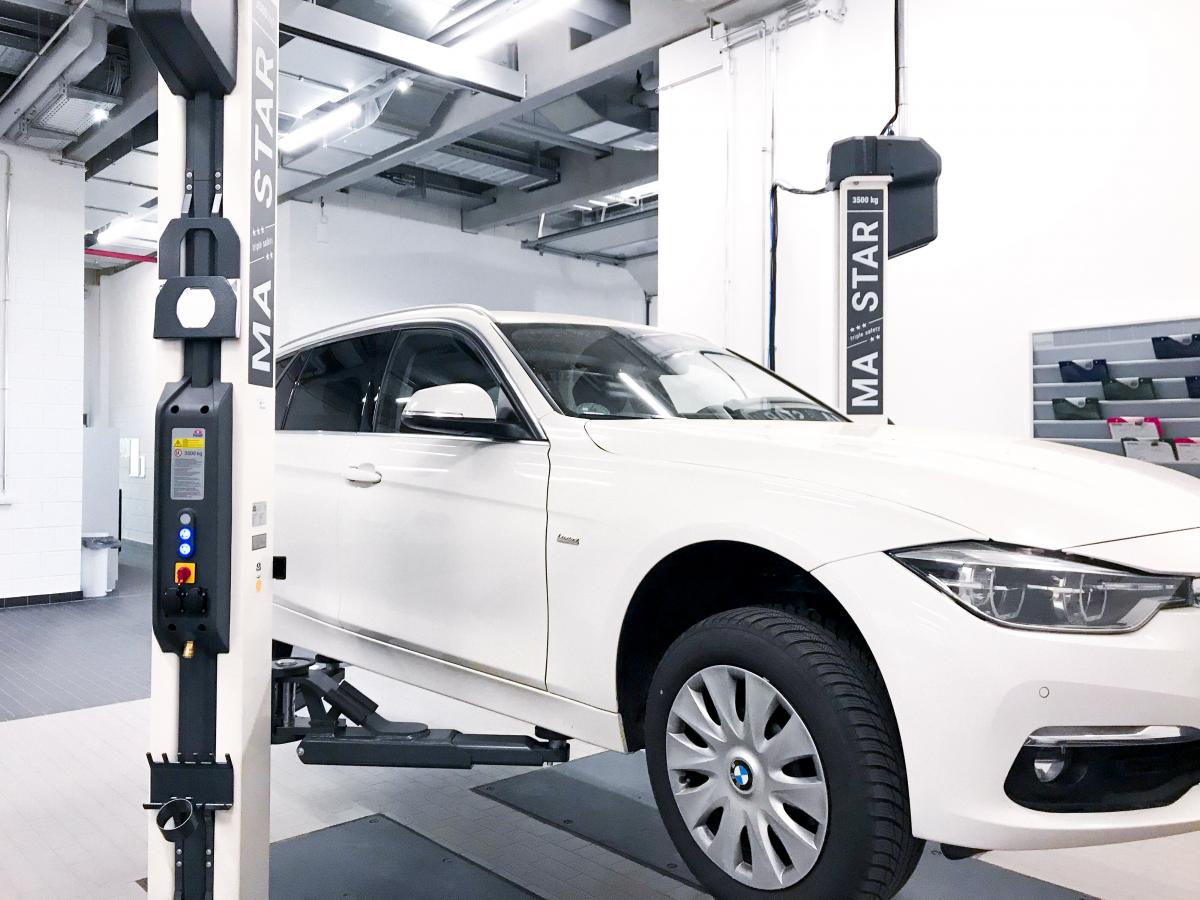

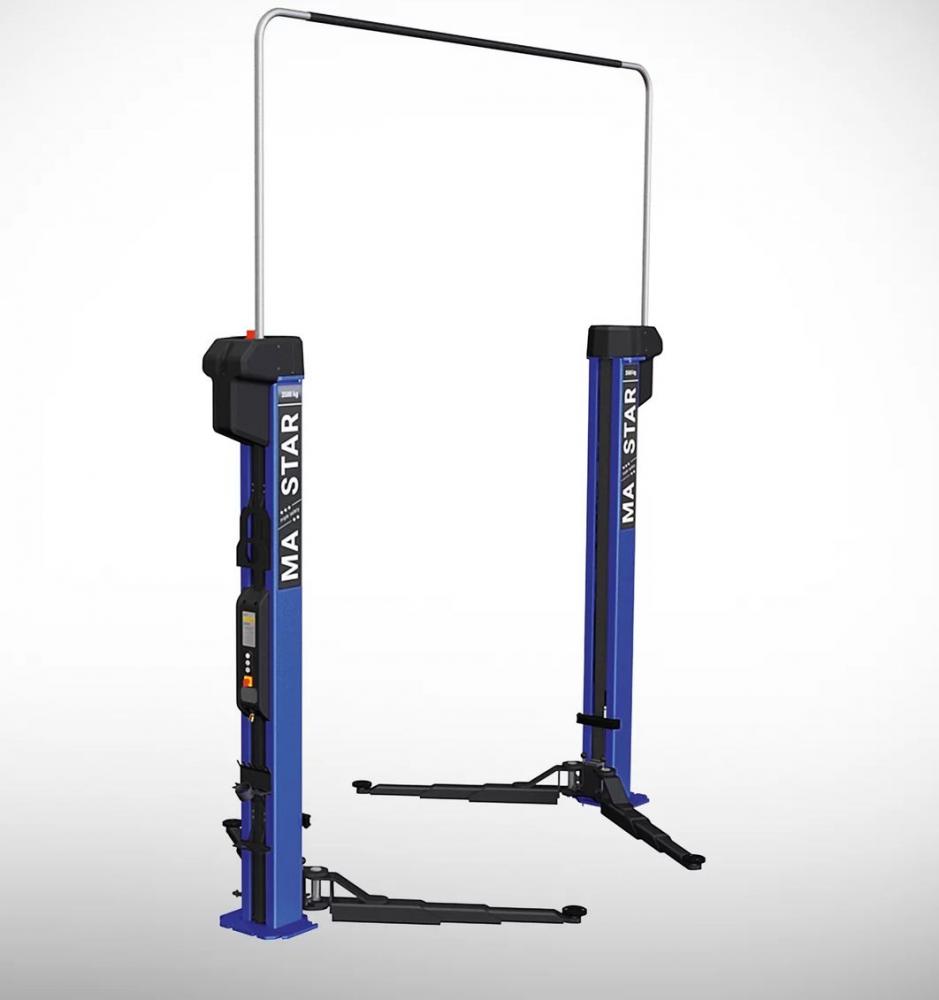

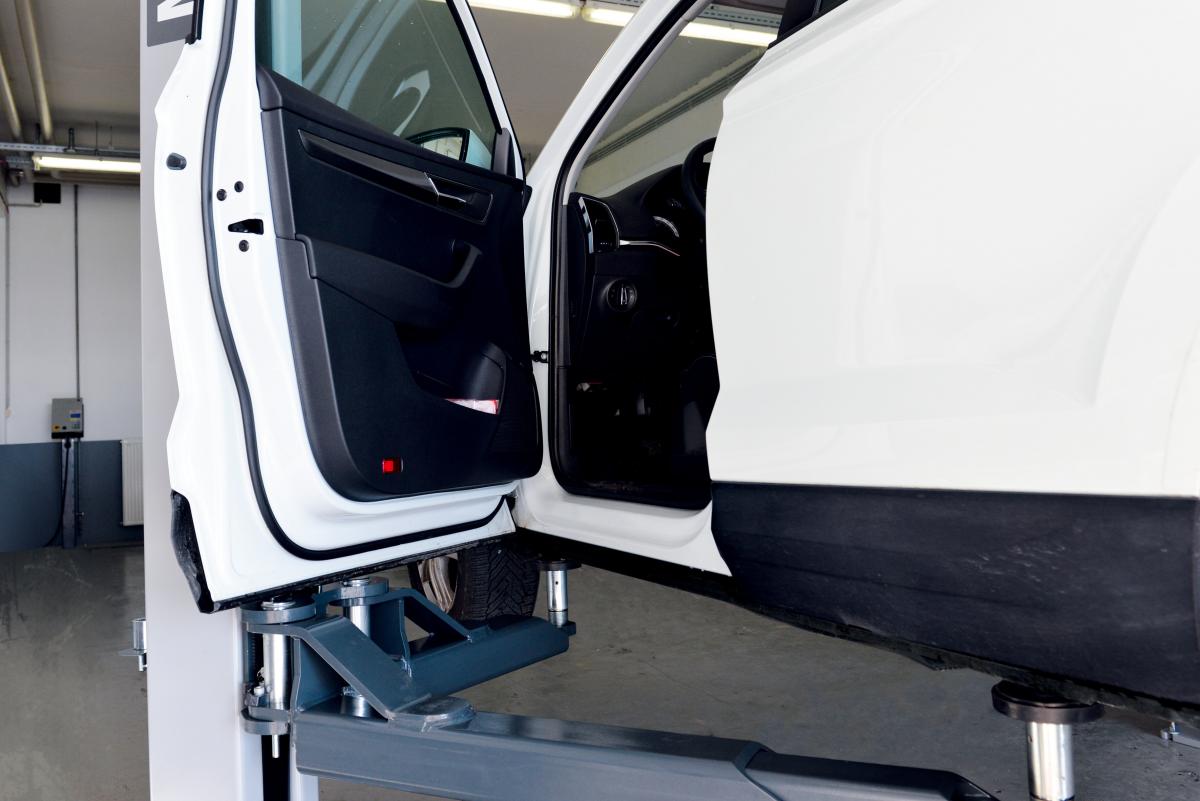

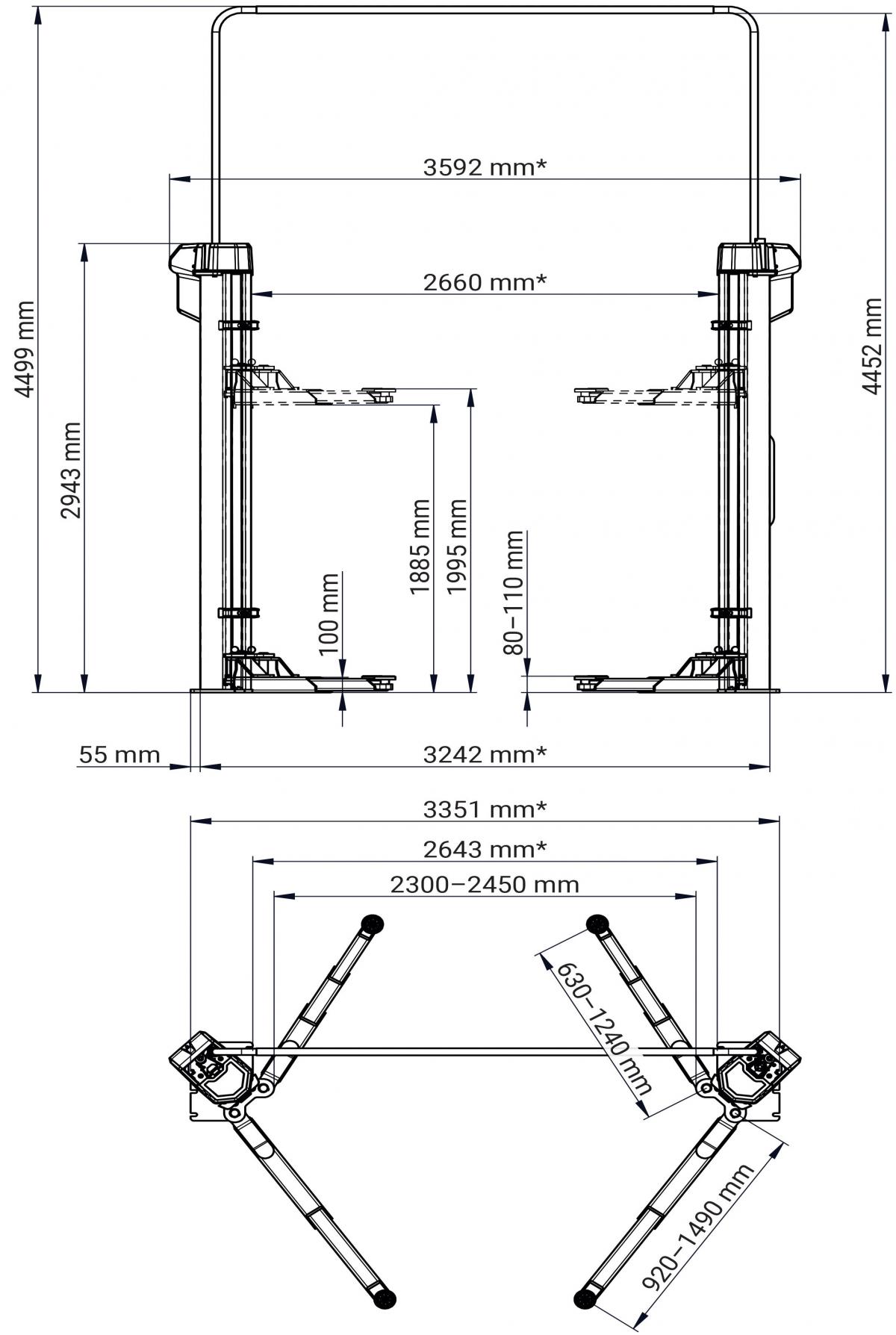

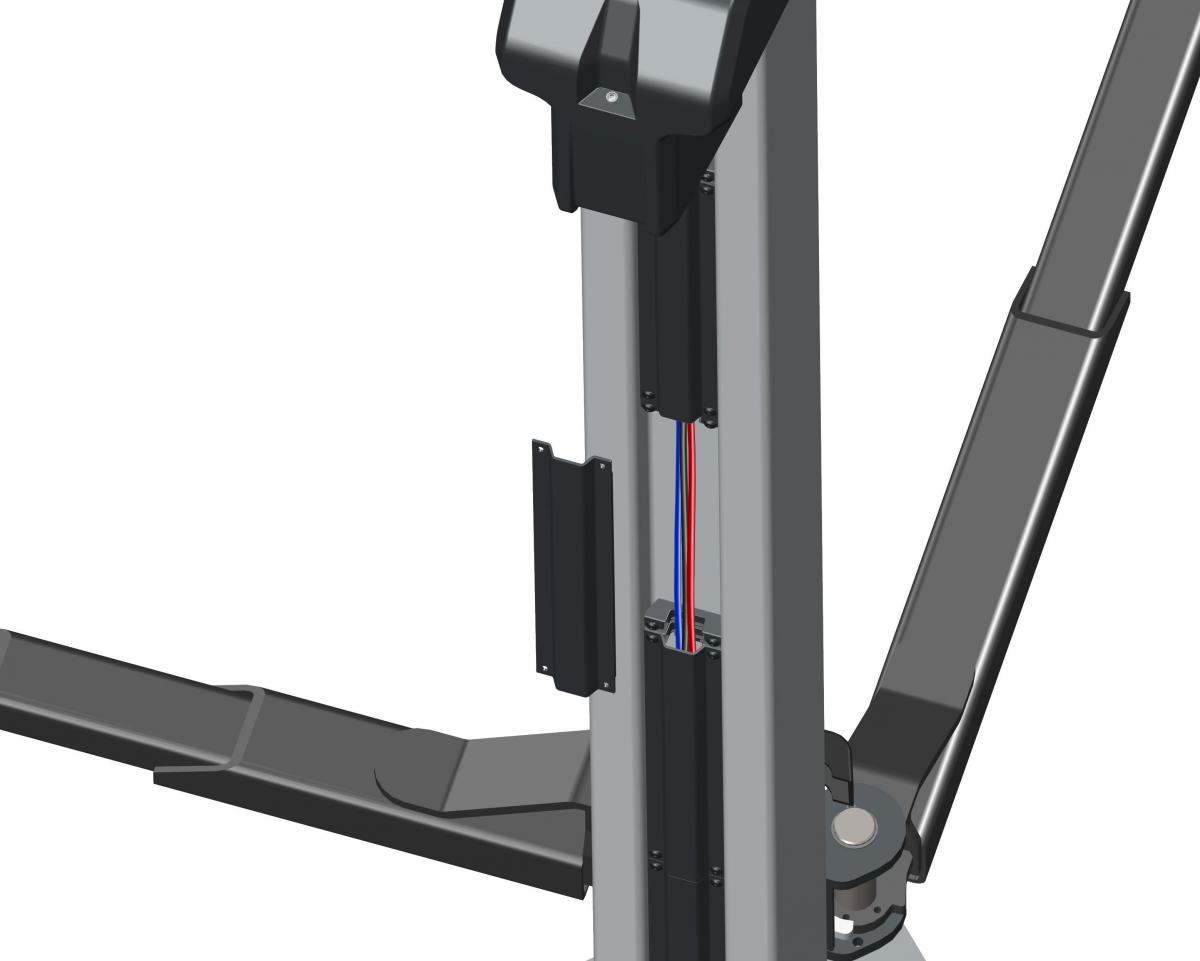

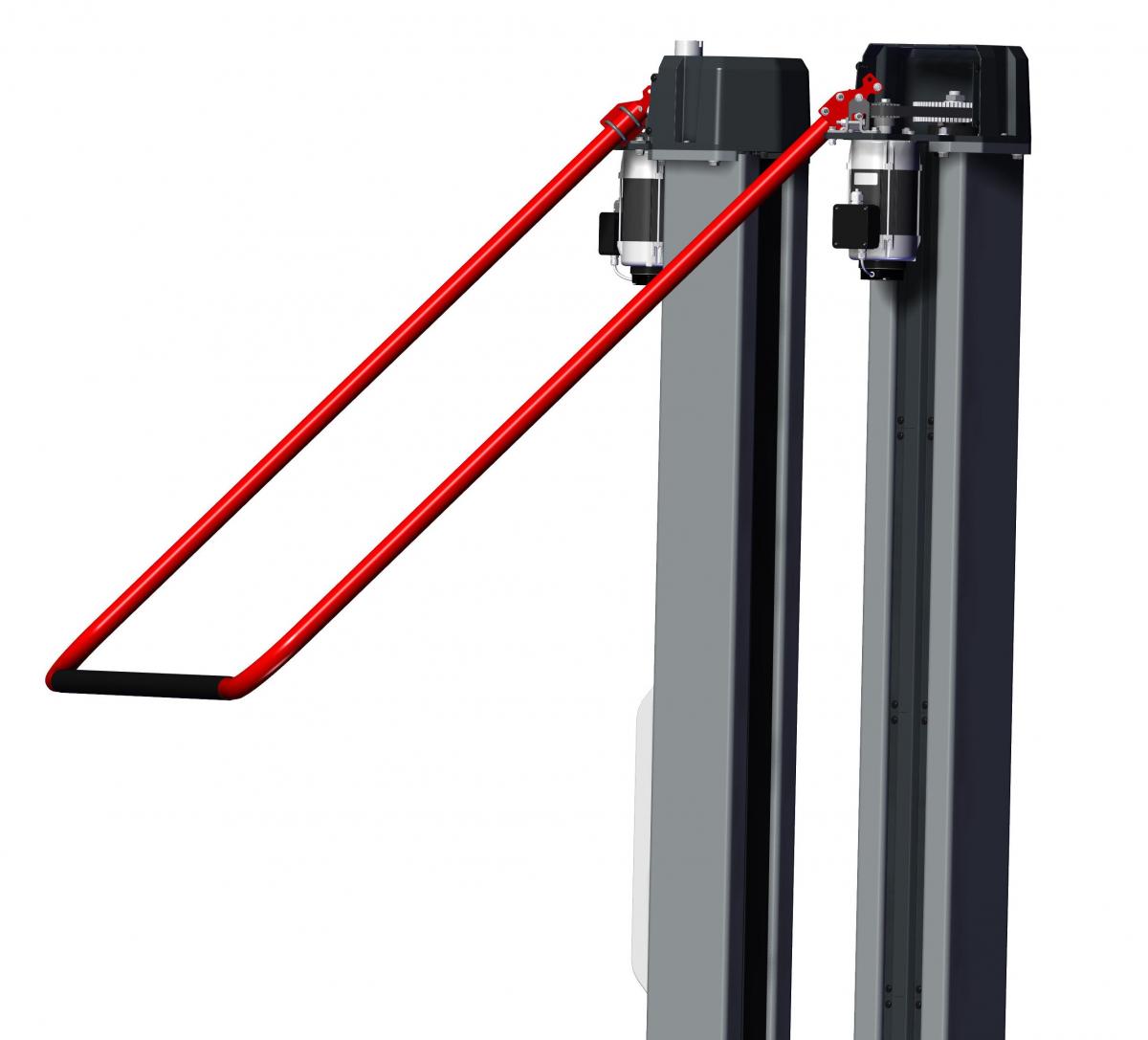

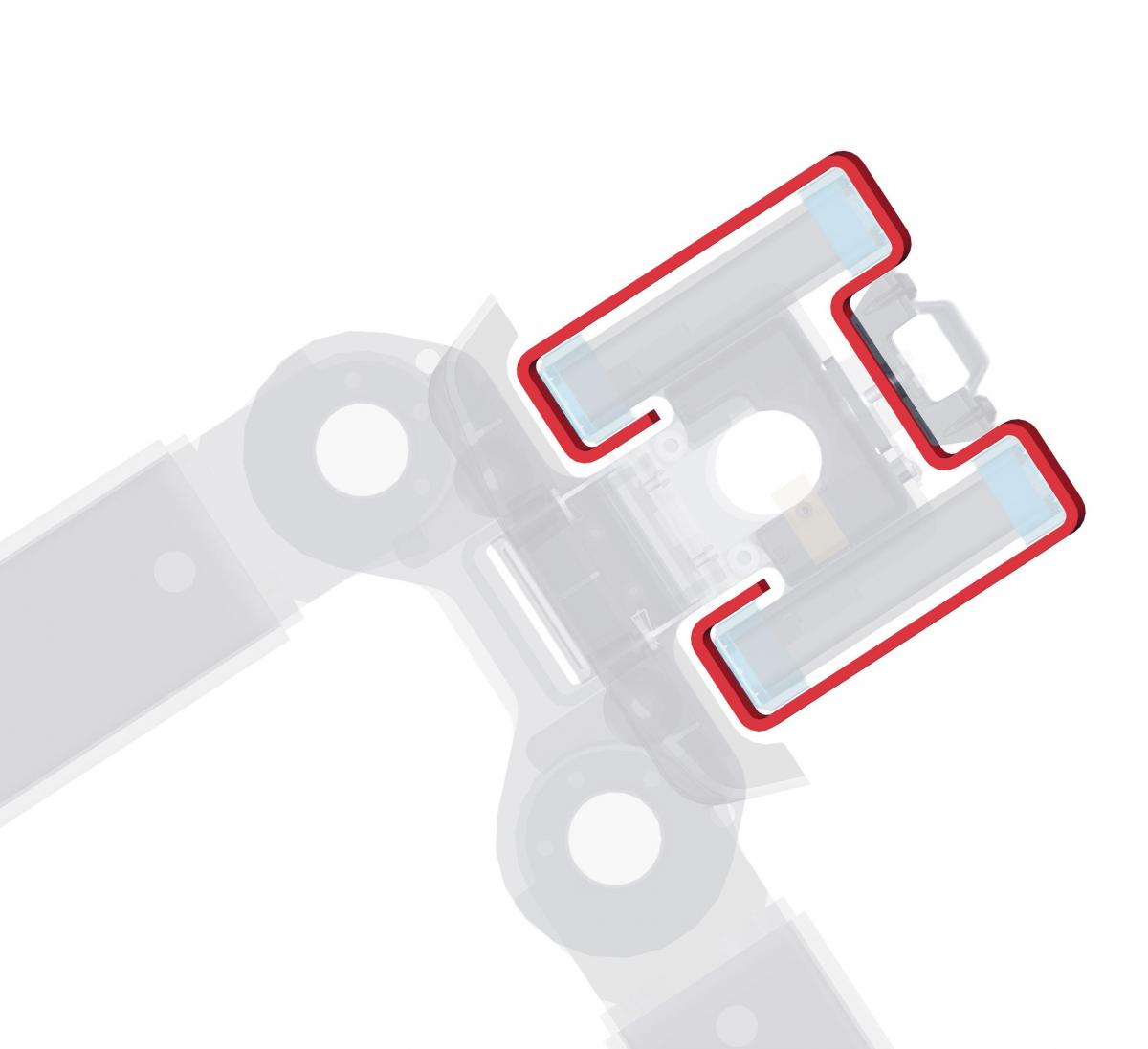

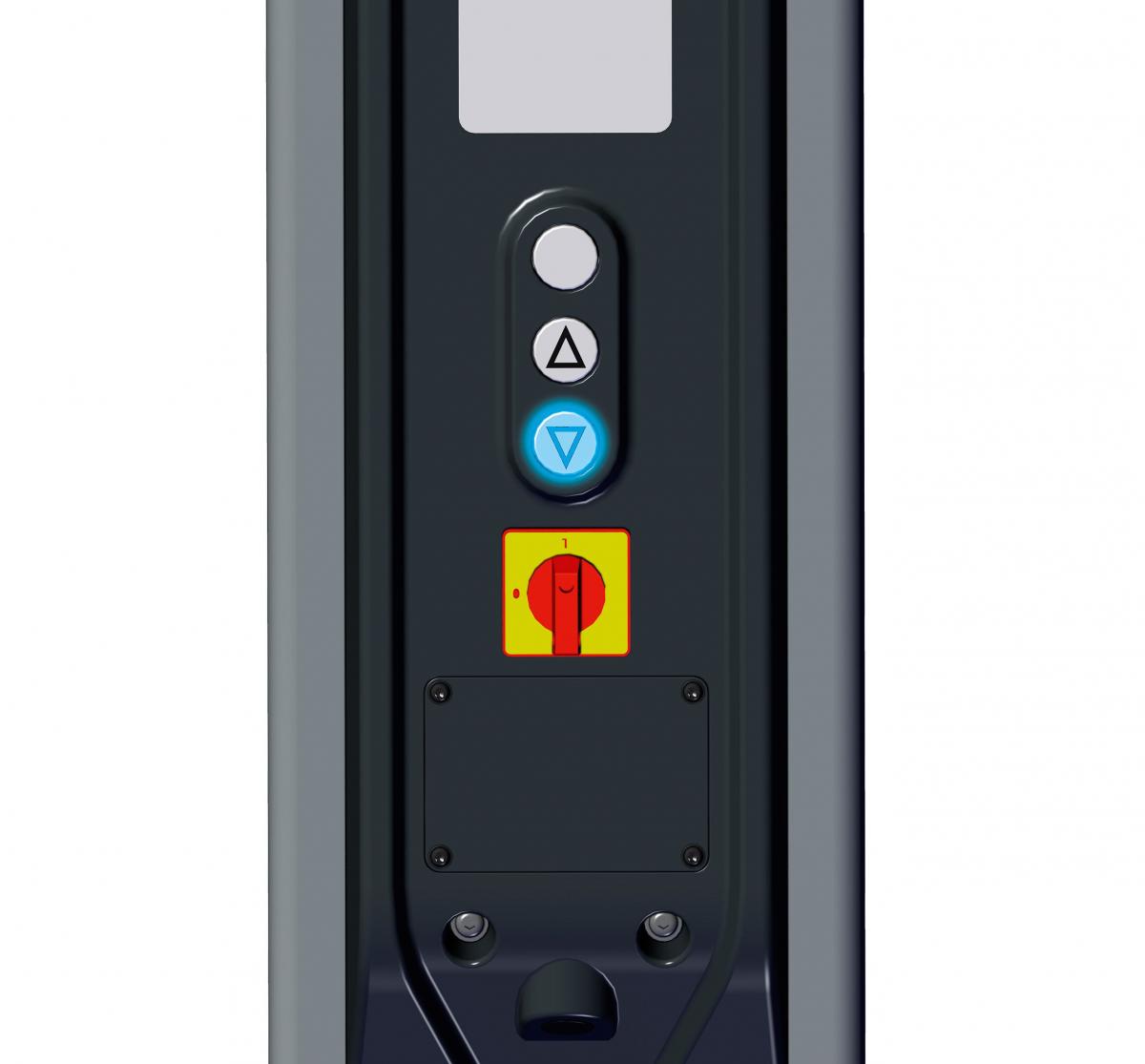

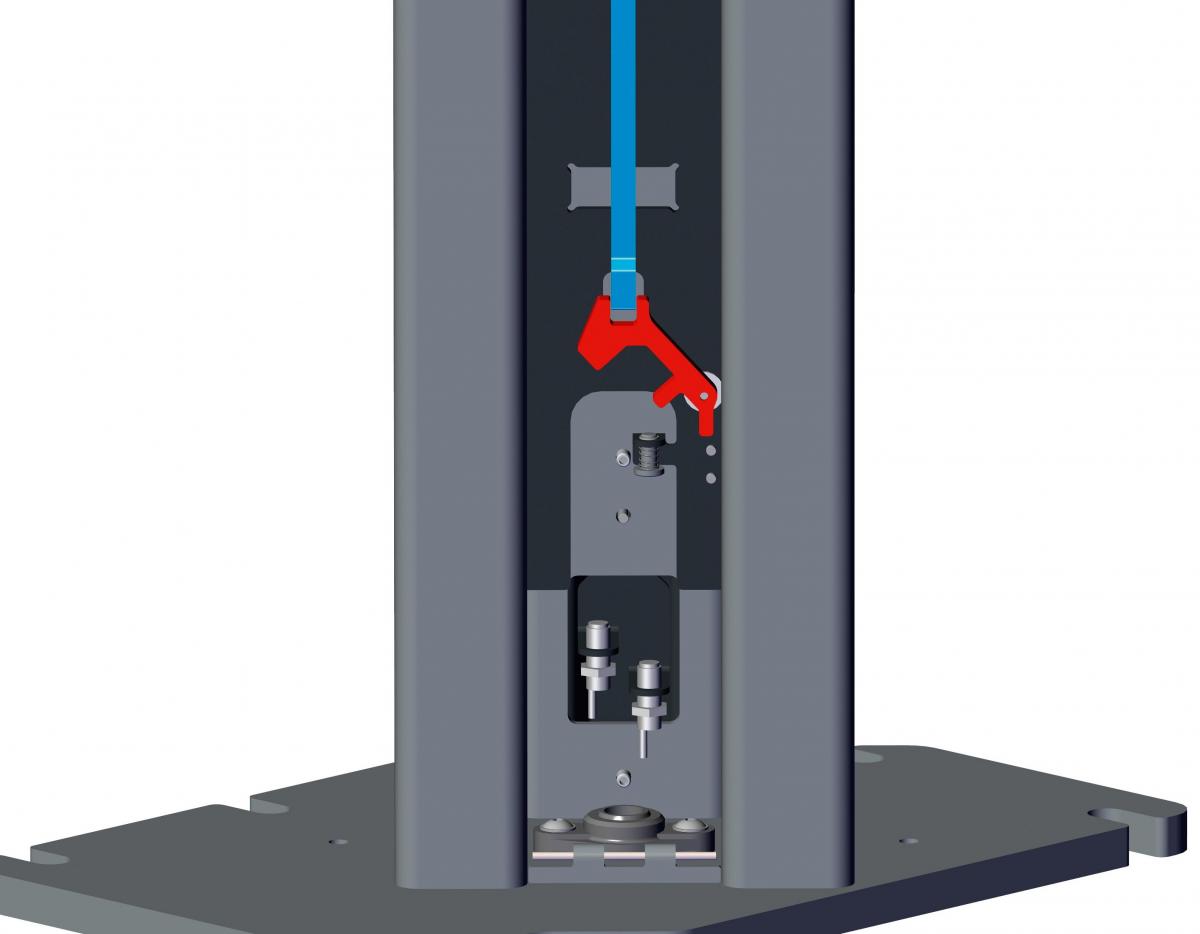

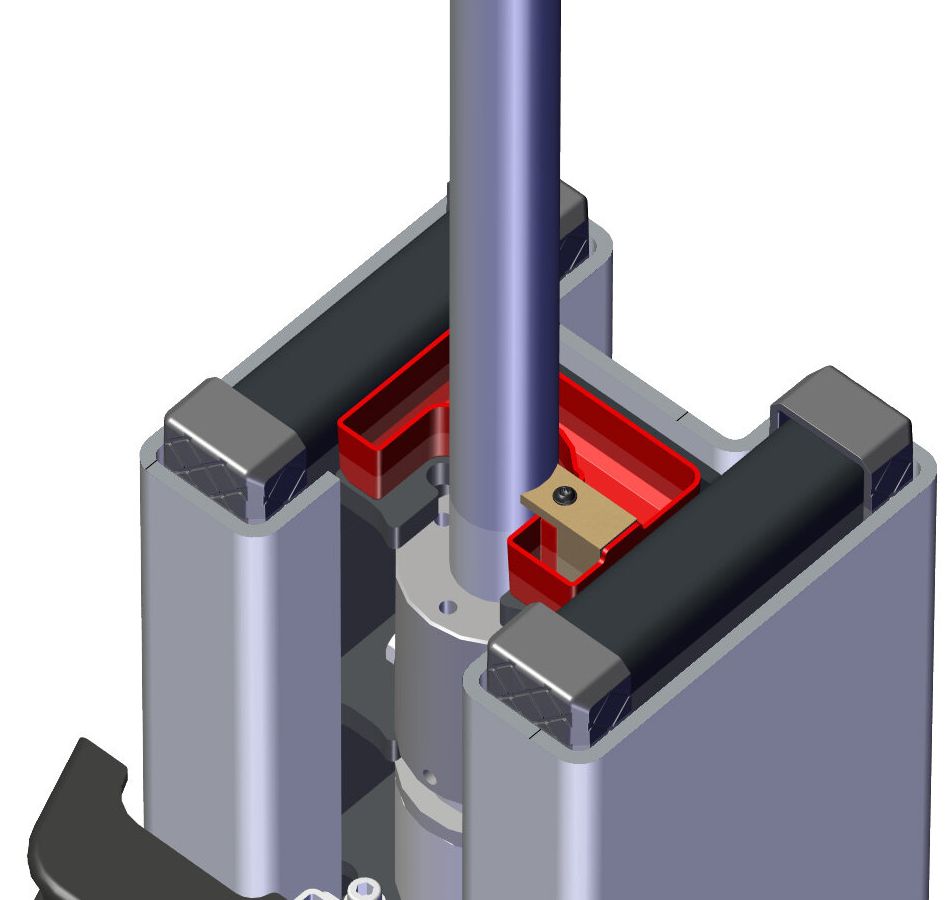

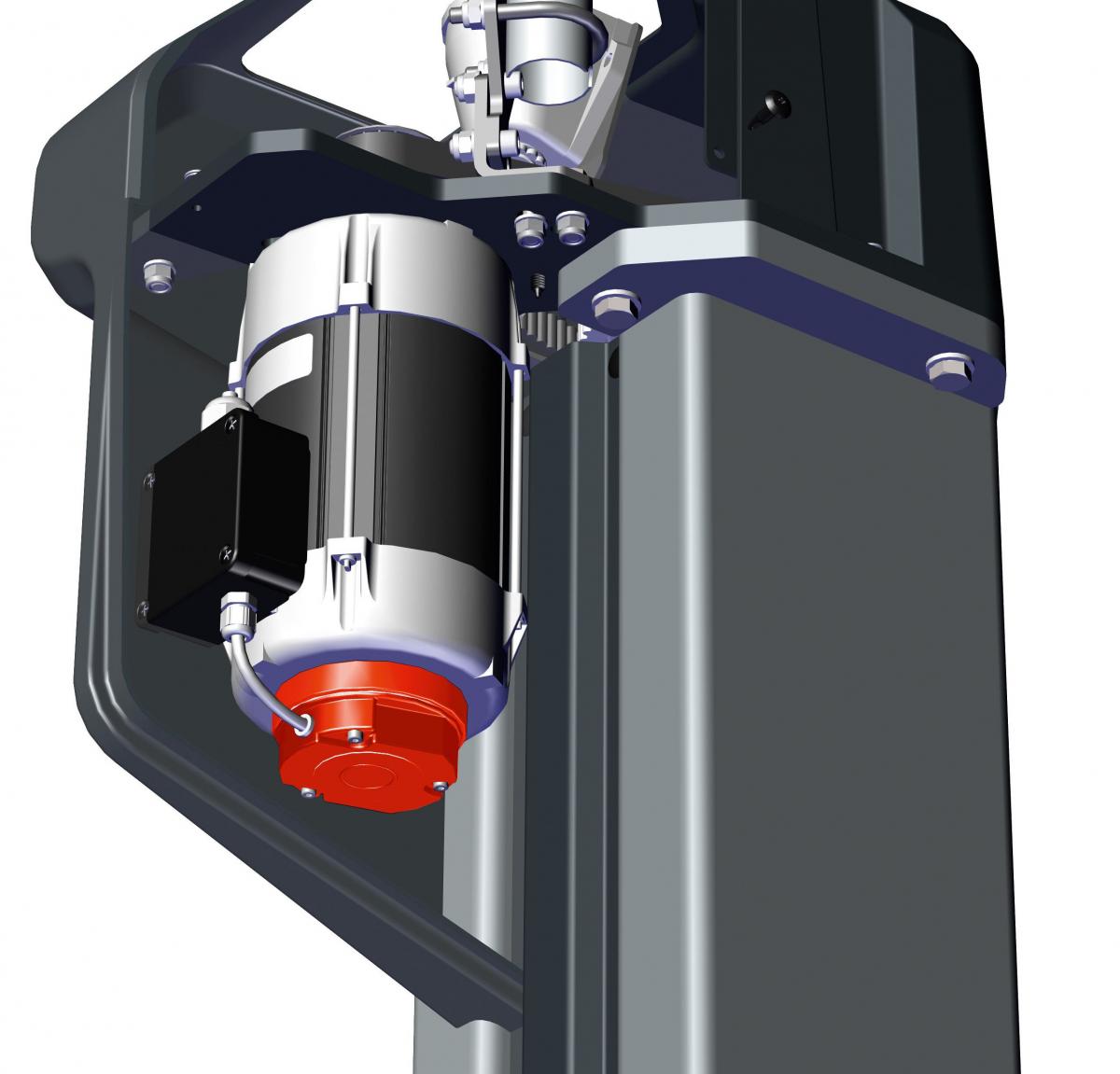

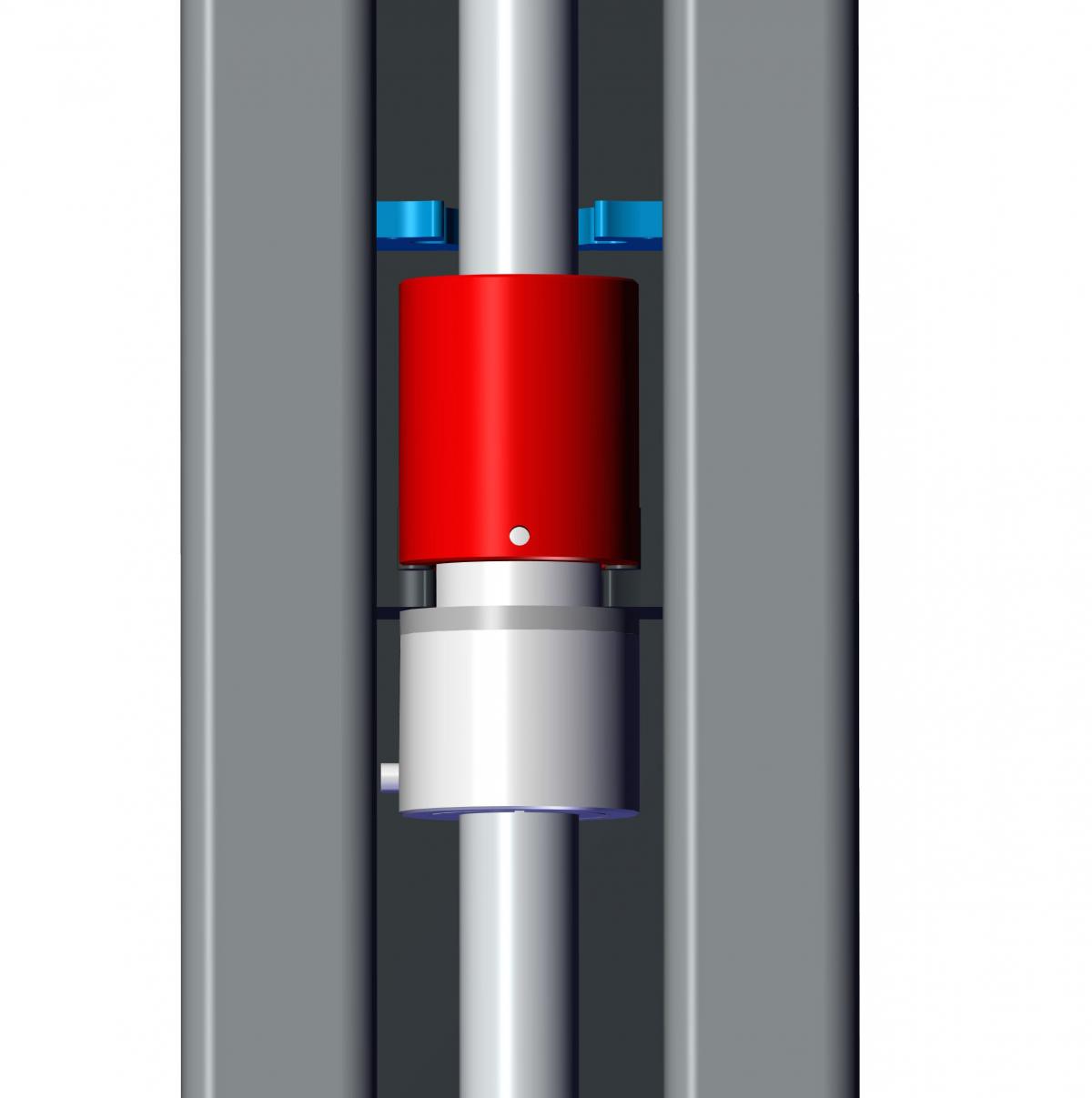

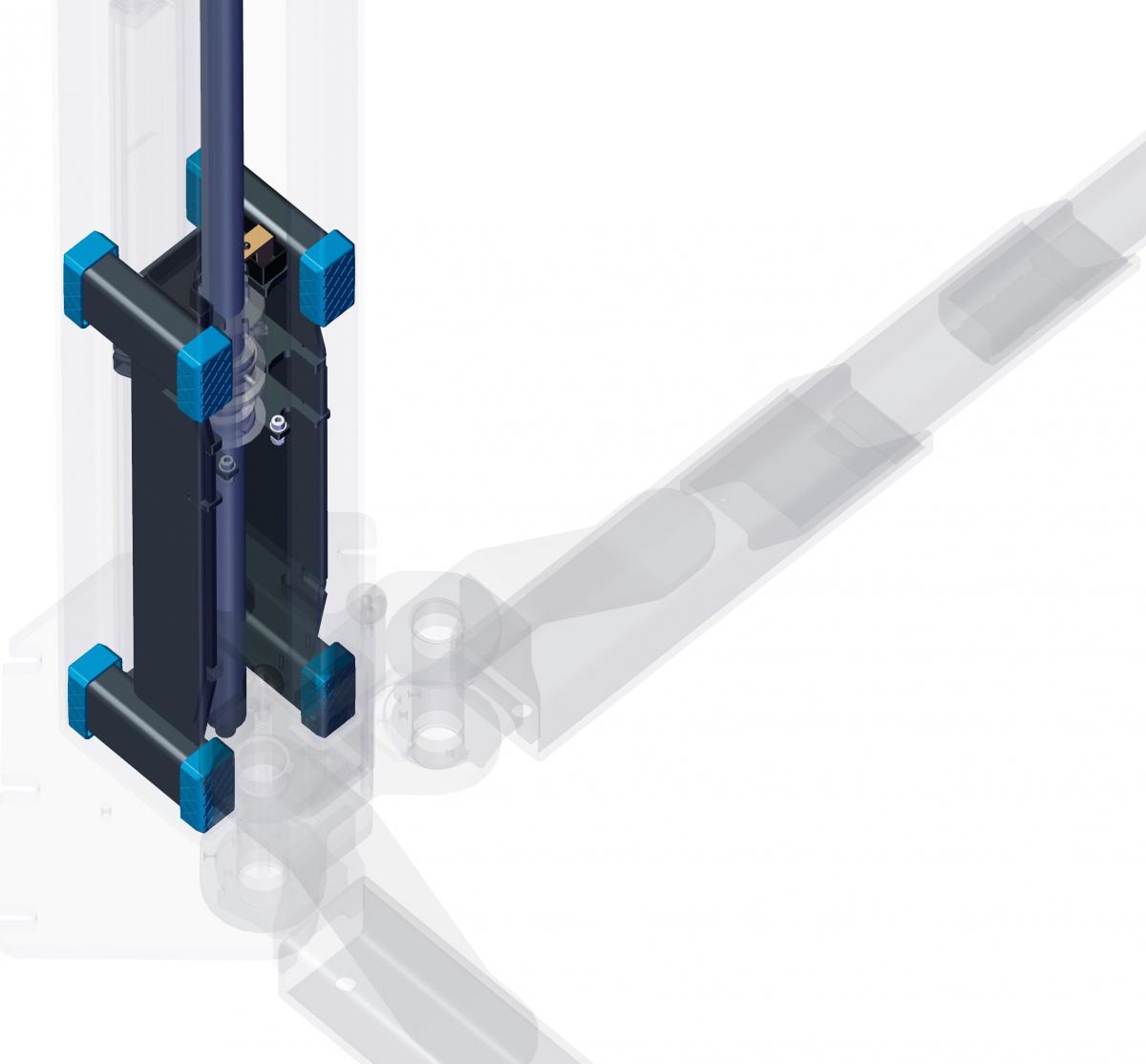

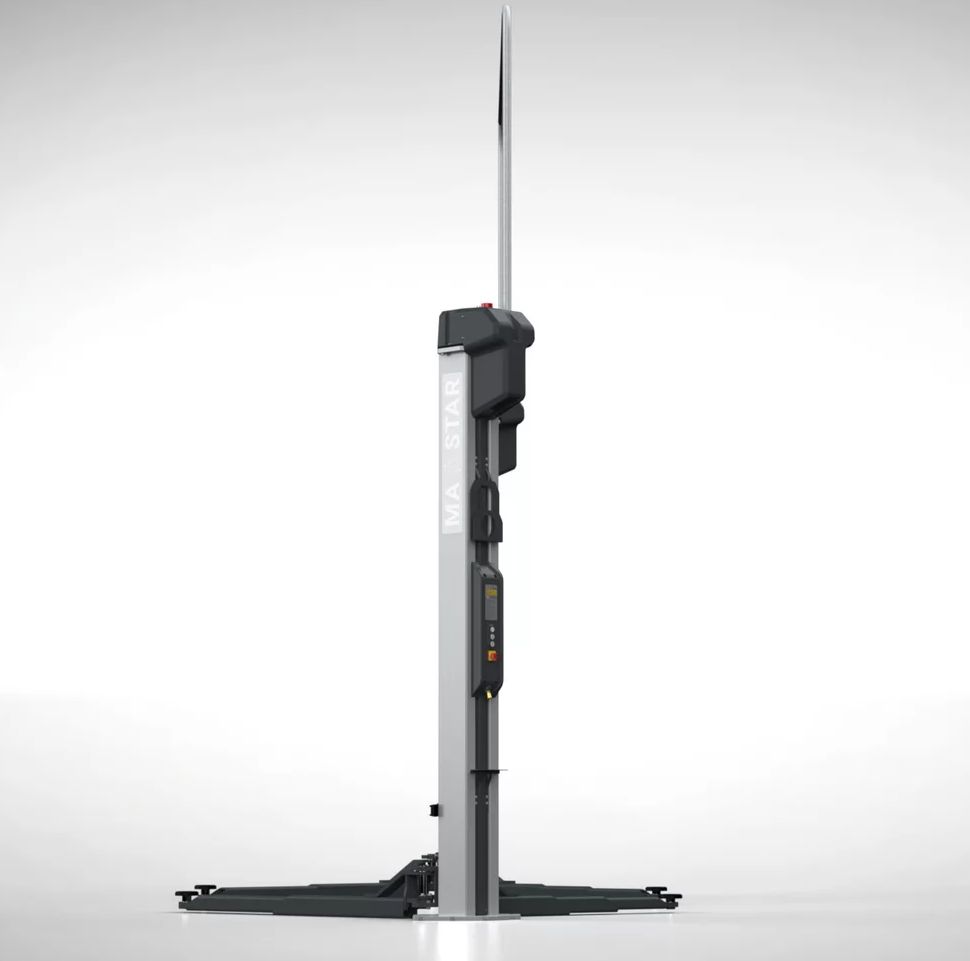

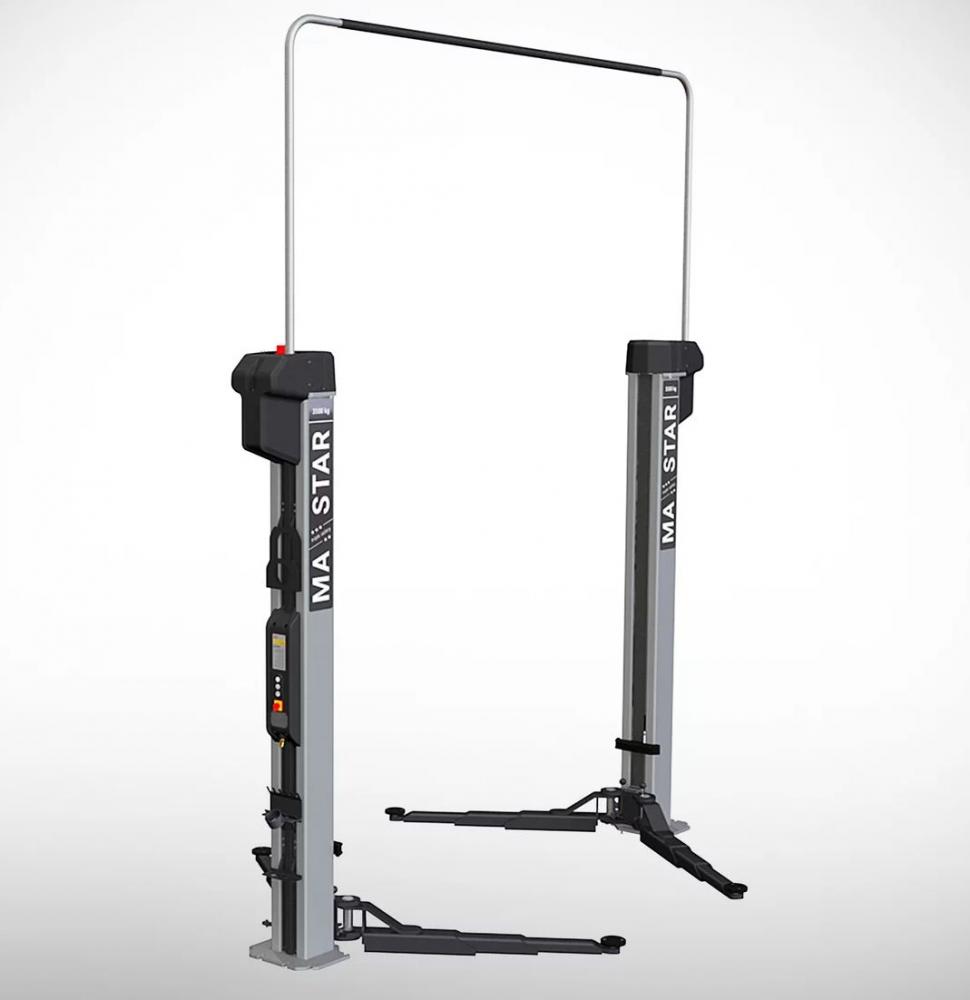

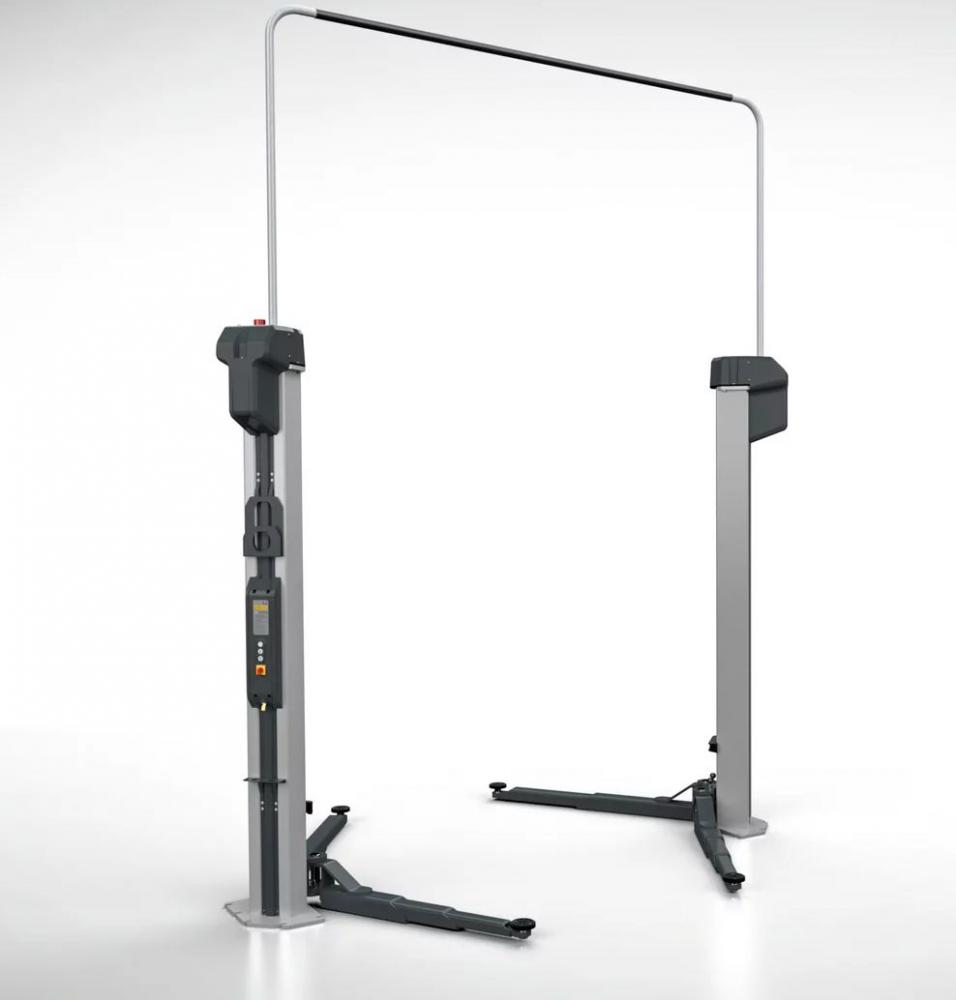

he 5-star lift MA STAR 3.5 A, which features stable torsion-resistant columns of rolled H-section steel, lifts cars and vans of up to 3.5 t. Symmetrical columns ensure that the lift width is kept to a minimum. The two post lift guarantees triple safety thanks to its spindle nut package, patented "giraffe" nut breakage detection and motor brake. The MA STAR also impresses with its straightforward plug and play commissioning as well as its intuitive, LED-based operation.COMFORT version - options available.   Description: Load capacity 3500 kg triple safety Columns turned by 45° for wide opening at the vehicle Asymmetrical support arms Short support arms swivelling 180° Variable installation width High-quality powder coating: Gentian blu, RAL 5010 (columns) Anthracite grey, RAL 7016 (lifting carriages, support arms) Scope of delivery: 2 asymmetrical columns with operating unit 4 asymmetrical support arms (2 double, 2 single telescopic) Support disc plug-in system Cable bridge Spindle oil (0.5 l) Operating instructions CE Declaration of Conformity Transport packaging Technical data: Load capacity CE 3500 kg Max. lifting height 1995 mm Lifting / lowering time (depends on load) approx. 40/40 s Bottom clearance of the support arms 100 mm Adjustment range, support disc 80 - 110 mm Extension range, short support arms 630 - 1240 mm Extension range, long support arms 920 - 1490 mm Overall width* 3592 mm Outside base plates* 3351 mm Outside columns* 3242 mm Inside columns* 2660 mm Drive-through width 2300 - 2450 mm Column height 2943 mm Max. overall height (with cable bridge) 4499 mm Drive power 2 × 3.0 kW Power supply 3/N/PE 400 V 50 Hz Fuse C16 A Weight 650 kg Packaging dimensions (L x W x H) 2900 x 1100 x 710 mm Required concrete quality C 20/25 Required thickness of concrete slab w/o screed min. 180 mm *Dimension based on recommended Drive-through width 2400 mm
