MAHA Axle and Joint Play Tester LMS 20.0

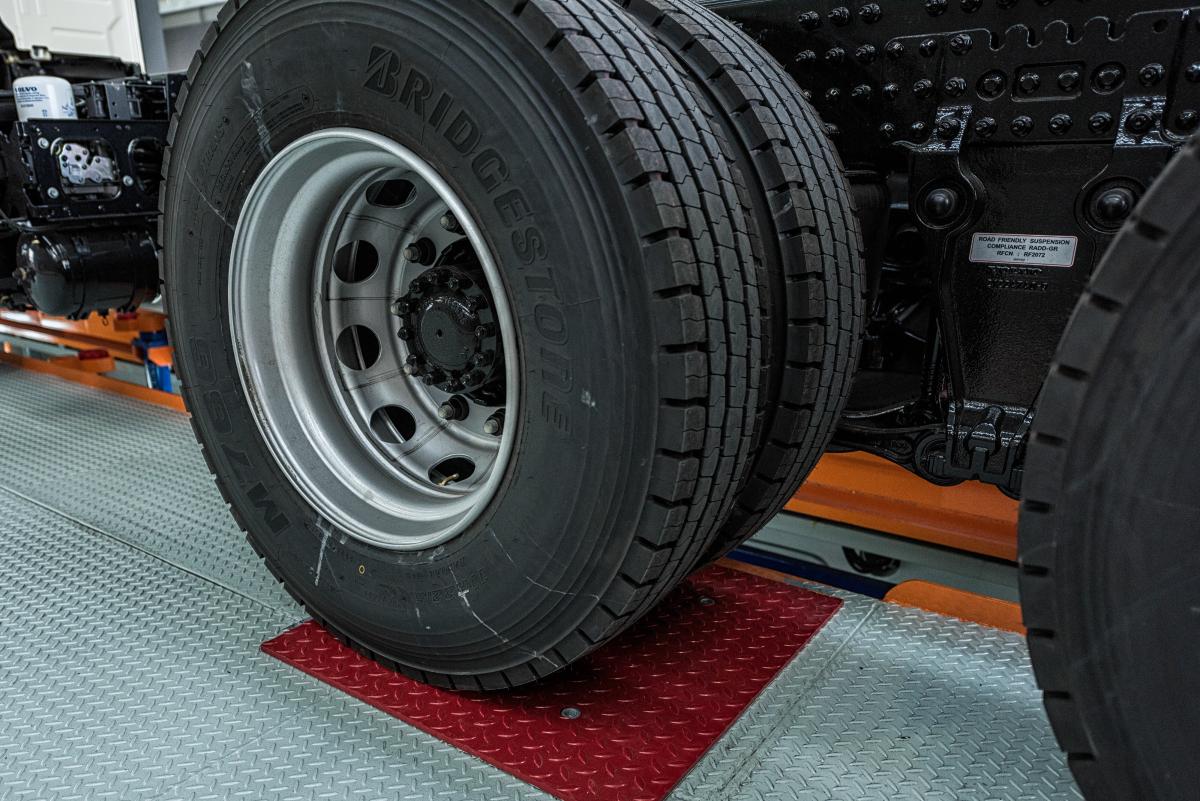

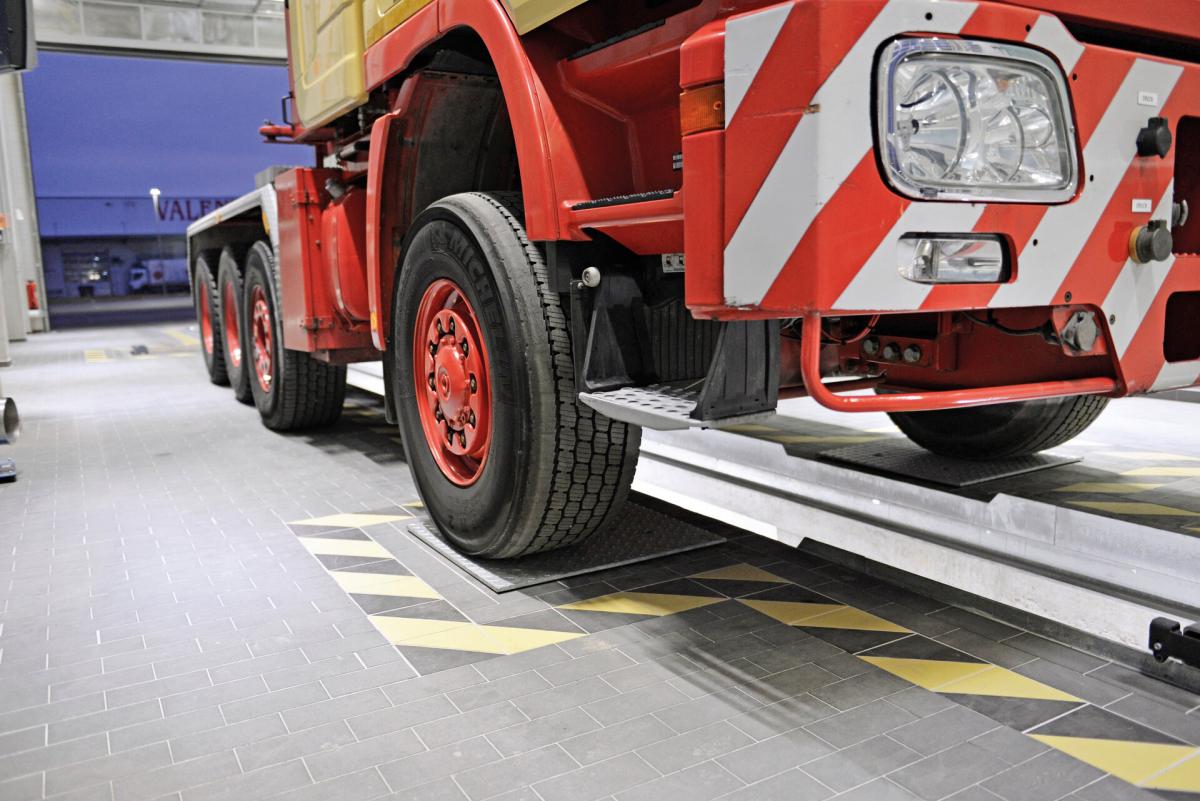

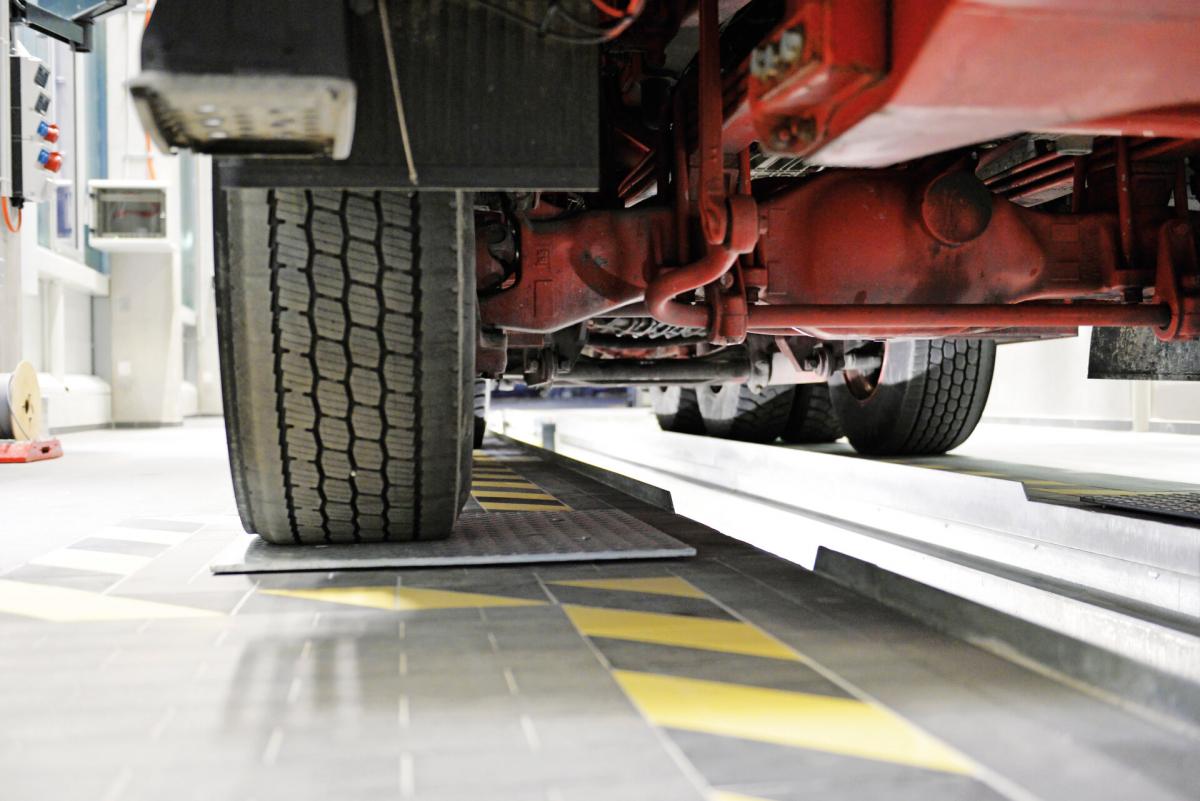

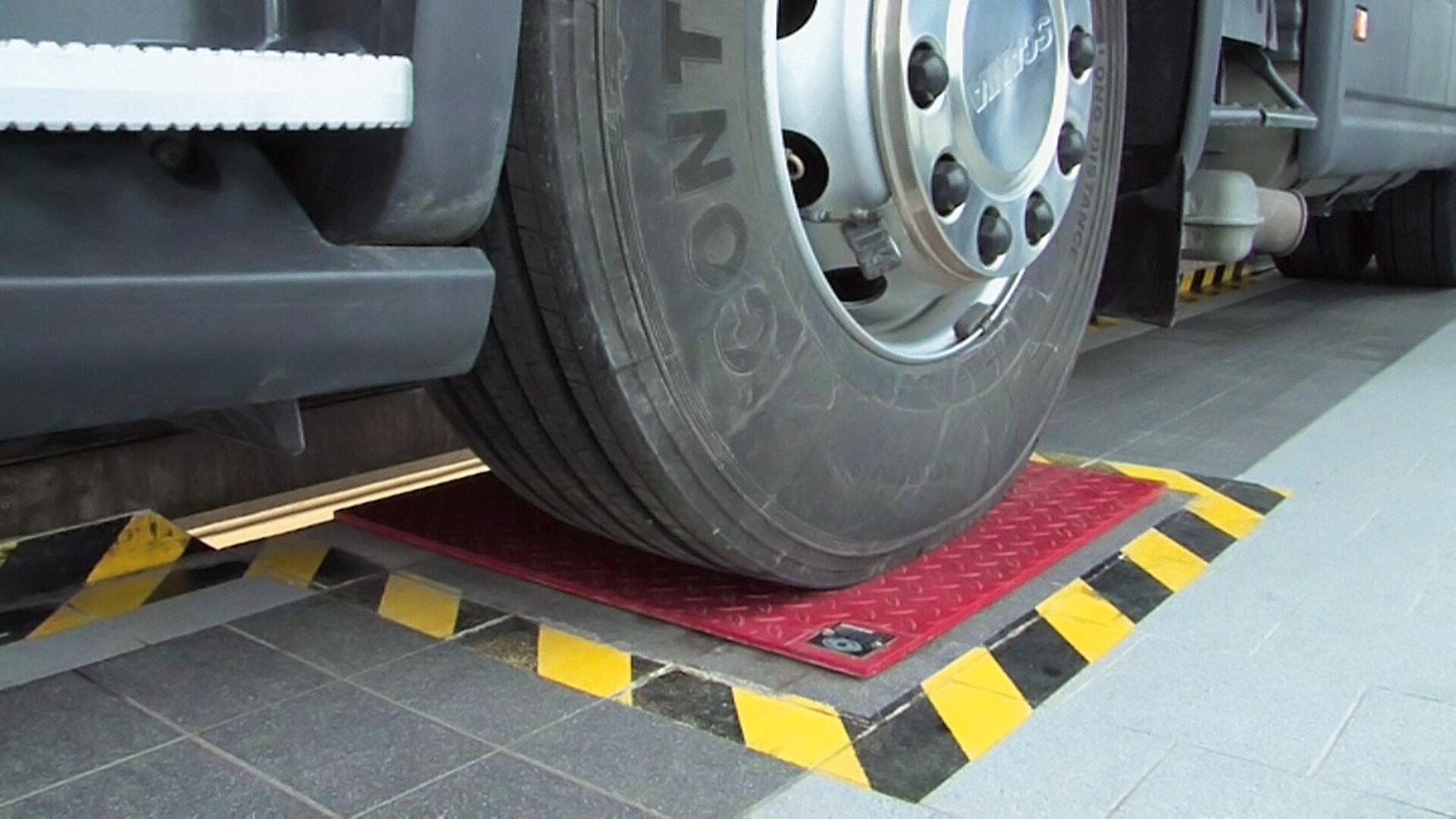

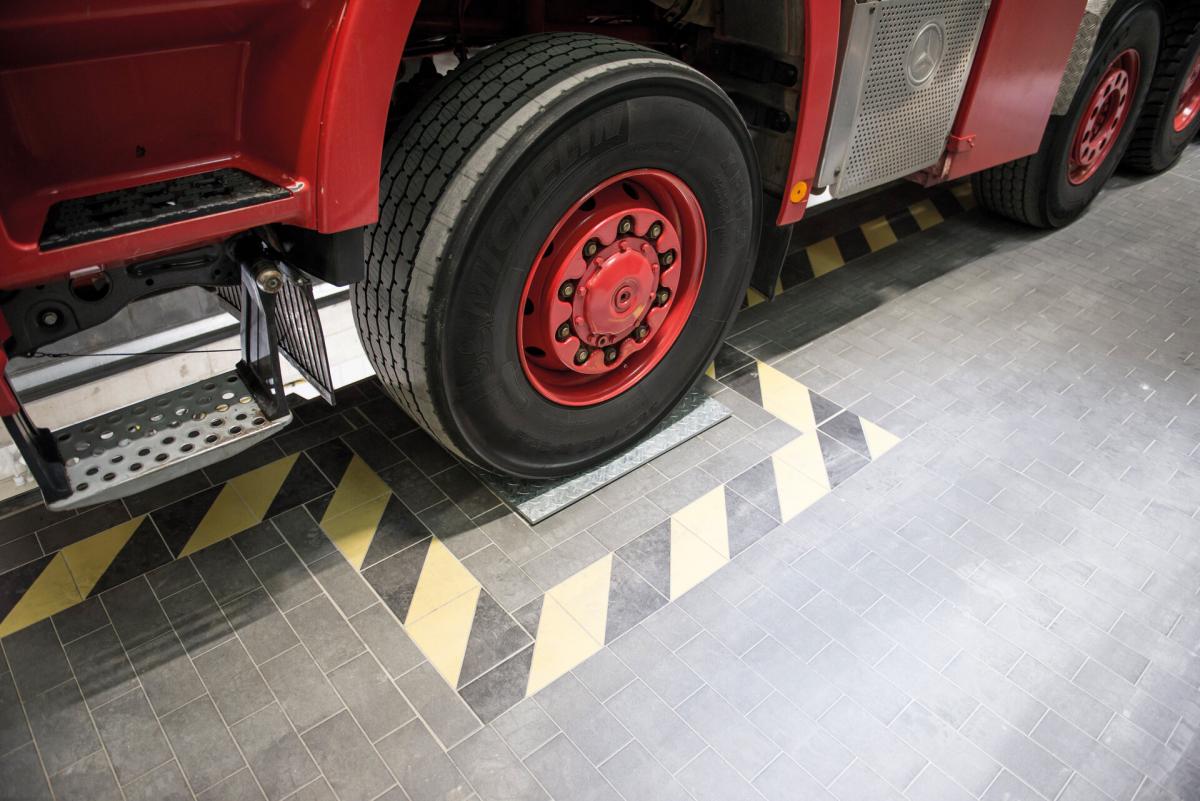

The axle play tester MAHA LMS 20.0 is intended for the reliable determination of defects and wear on steering parts, wheel bearings, shock absorbers and suspension by lateral and longitudinal movement of the test plates in opposite directions. The built-in hydraulic drive ensures a powerful and smooth movement of the test plates. An automatic mode as well as other different operating modes ensure the uncomplicated operability of the MAHA LMS 20.0

Description:

Rapid determination of defects and wear and tear on steering parts, wheel bearings, spring system and suspension
Powerful and even movement thanks to hydraulic drive
Low-noise oil-submerged hydraulic unit
Slide bearings and particularly robust chrome-plated circular guides
Extremely robust and low-maintenance design with optimum service life
Counter-set cross and longitudinal movement of the test plates
One-hand operation without lifting the vehicle

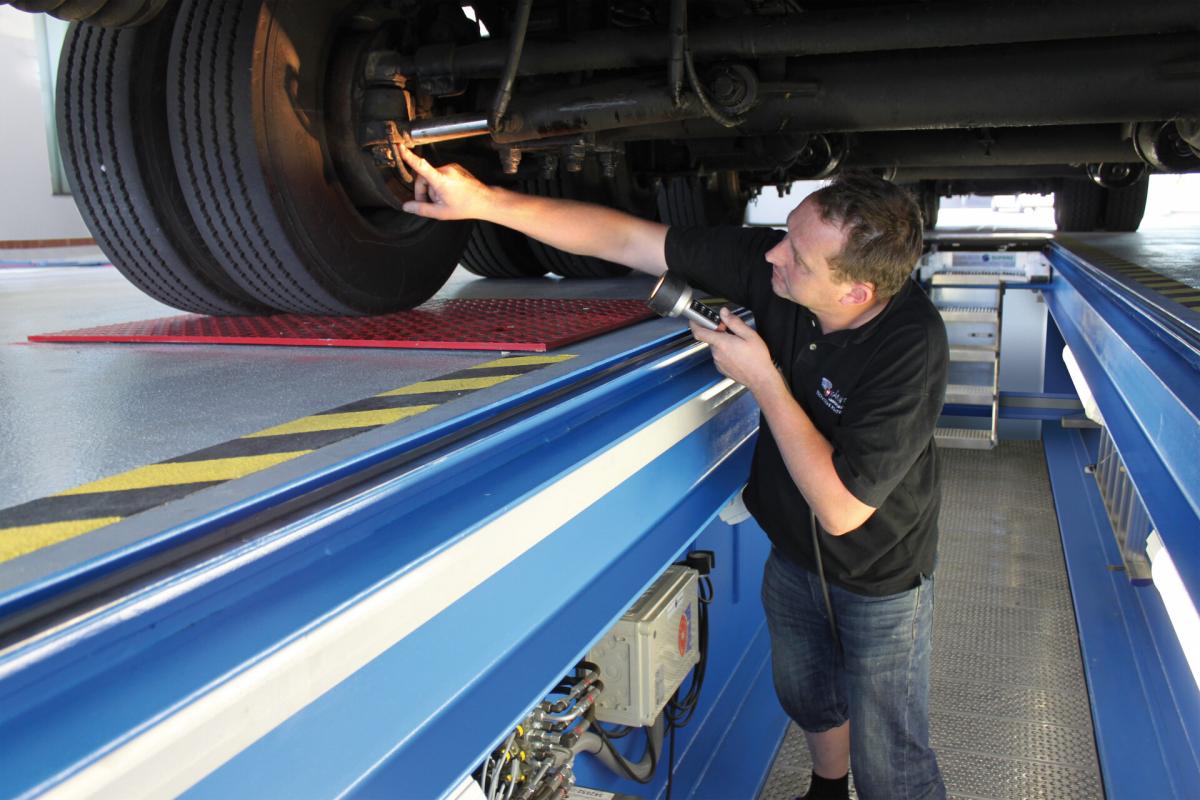

Wireless radio inspection light with LED for performing and controlling the test plate movements
Different operating modes including automatic mode
Compliant with directive 2014/45/EU
Optional: additional different test plate movements
Optional: aluminium cable inspection light

Scope of delivery:

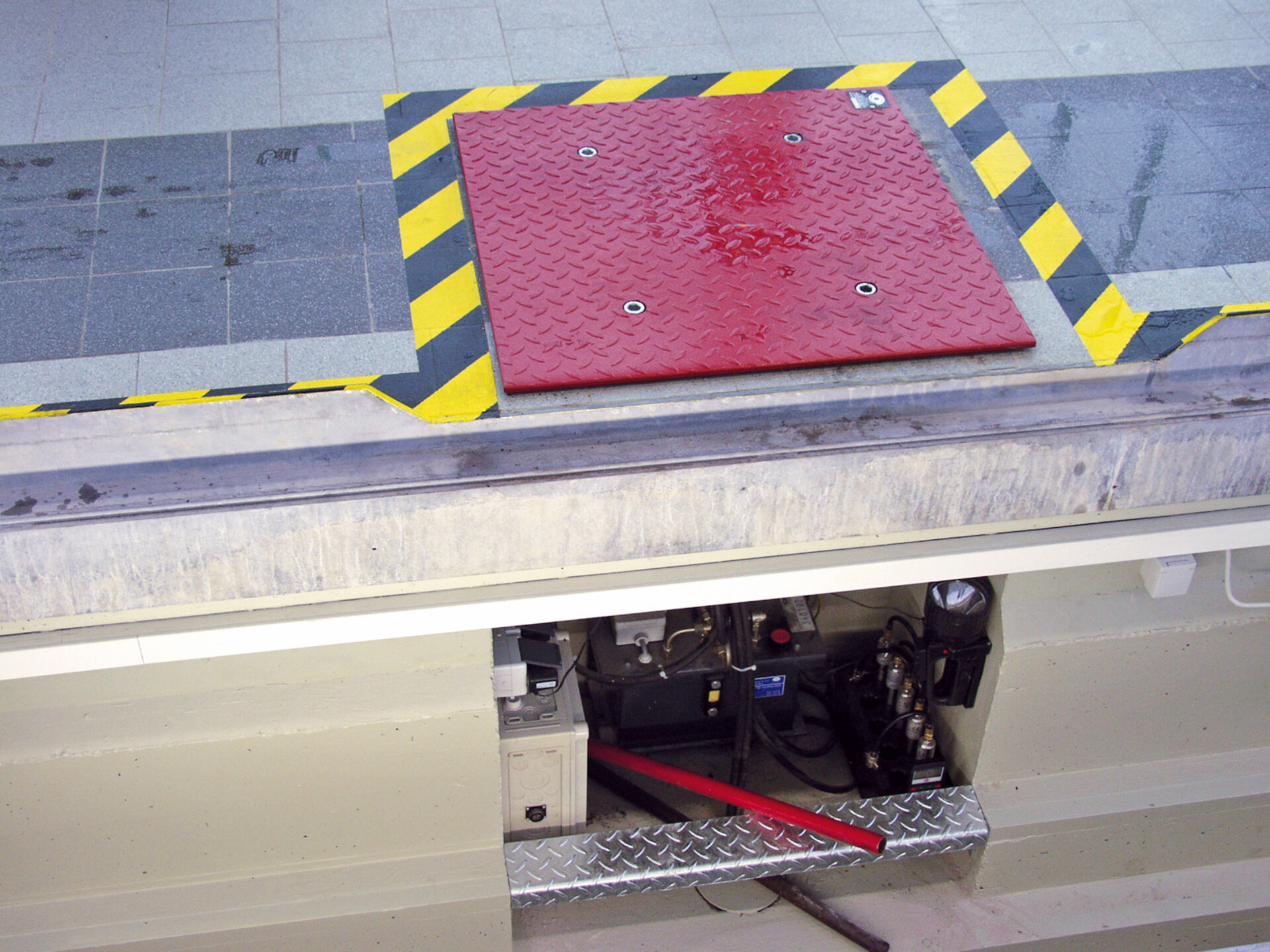

2 pieces test plates
Electrical control box
Hydraulic power unit
Radio inspection light with charger and power supply unit
Operating manual

EC Declaration of Conformity CE

Technical Data

Max. axle load	20000 kg
Max. wheel load	10000 kg
Test plate movement	104mm
Test plate speed	50 mm/s
Dimensions of test plate (L x W x H)	740 x 740 x 10 mm
Installation depth	260 mm
Max. thrust per side	30 kN
Drive power	2.5 kW
Operating pressure	120 bar
Power supply	3/N/PE 400 V 50 Hz
Fuse gG	16 A
Hydraulic oil volume (not included)	25 l
