Electro-mechanical mobile column lifts RAV 230

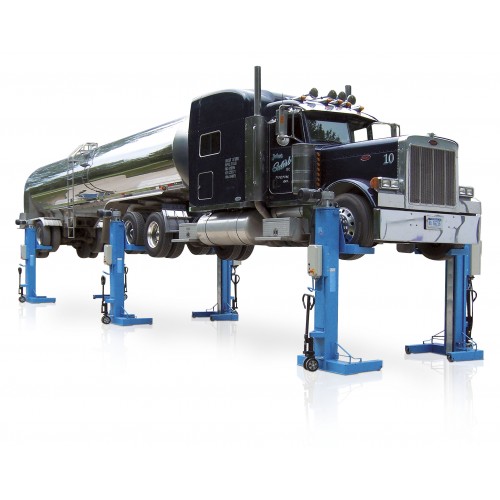

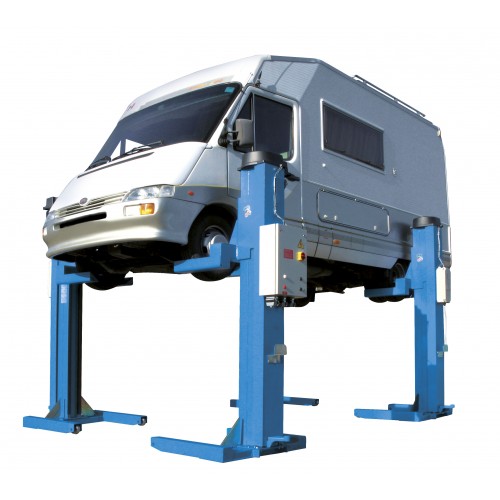

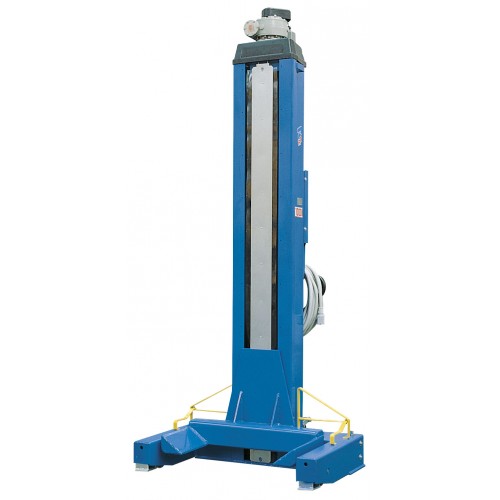

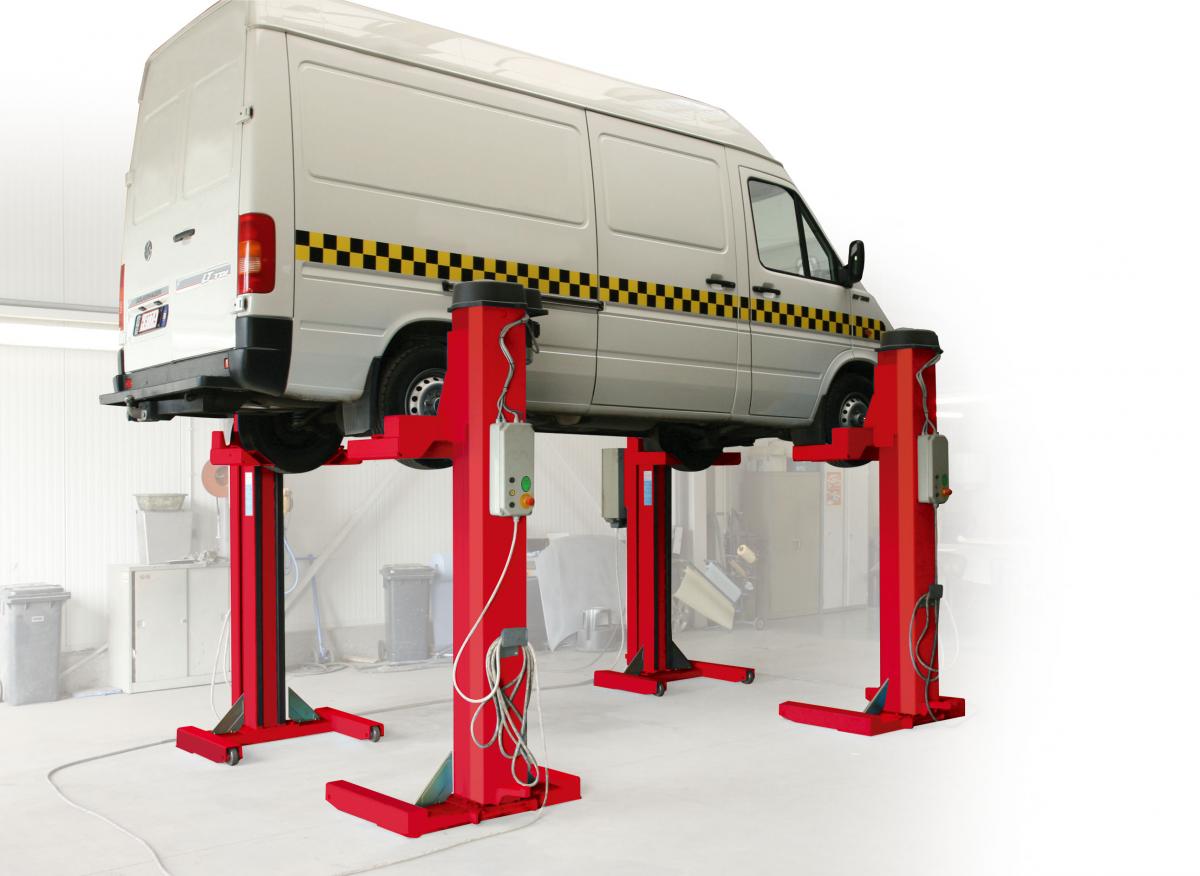

RAV 210 - 220 - 230 - 240 - 260 Features 6 MODELS with capacities ranging from 3 to 10 tonnes per column 2 VERSIONS: indoor and outdoor installation 3 CONFIGURATIONS: 4, 6 or 8 columns Large and solid base for maximum stability under load Lifting spindles in rolled steel with bronze main and safety nuts Models RAV 210-220-230 Screws are automatically lubricated by felt pads feeded by an oil tank which guarantees lubrication during movement. A series of Ertalon runners (10 per carriage), with low friction coefficient and excellent resistance to wear, guarantee balanced lifting of the vehicle in any position. RAV 240-260 Columns in boxed sheet steel with rollers sliding profiles in high resistance steel. Steel rollers for carriage movement fitted on self-lubrificating bearings requiring no maintenance. Direct drive to the spindle by means of a self-braking motor-gear unit. Automatic lubrication of spindle and nuts.   Technical Data     RAV 210 RAV 220 RAV 230 RAV 240 RAV 260 Capacity per column kg 3000 4000 5500 7000 8500 Motor kW 3,5 3,5 3,5 2,4 3,7 Required mains power per column 400v 50 Hz 7,5kW 13A 8,5kW 15A 7,5kW 14A 5 kW 8,5 A 6 kW 9,5 A Master col weight kg 410 430 450 473 510 Slave col weight kg 360 380 400 455 460 Rise time   60” 80” 120” 135” 135” Maximum tyre Ø mm 1.200 1.200 1.200 1200 1200 Minimum tyre Ø mm 900 900 900 900 900 Minimum rim Ø mm 580 580 580 580 580
