Easy 3D+ X-OEM Version

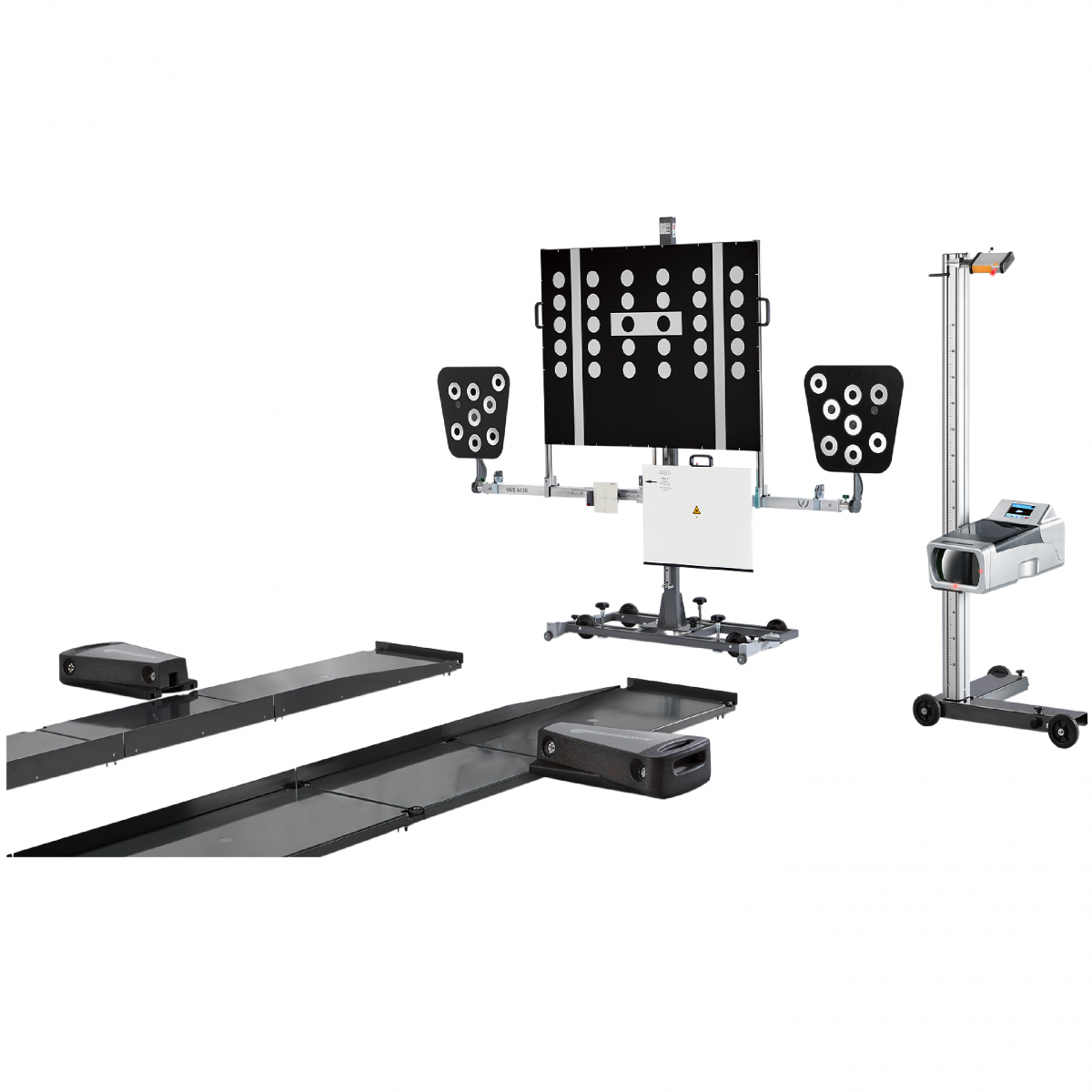

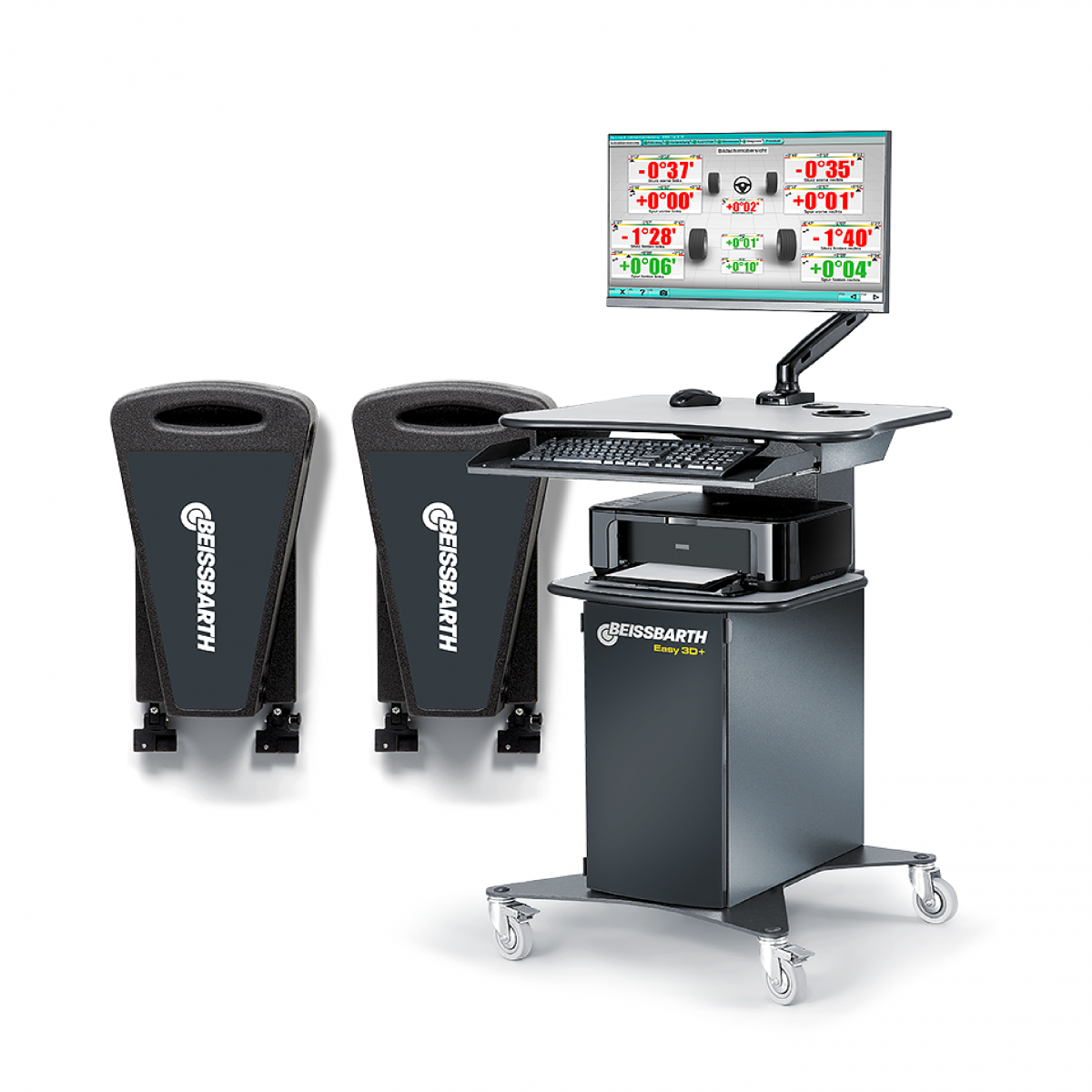

Wheel aligner Easy 3D+ | X-OEM Version Wheel Alignment with 3D technology - High speed, high precision and easy to use | Cable version | with cabinet, HighPerformance PC, 27" monitor and printer | incl. lift adapter, cable set, turntable Standard, wheel clamps and OEM magnetic clamp Article number: 1 690 700 077 NEW: Now with SmartTest - Quick alignment check with printout in under 90 seconds Highly automated routine Automatic target recognition Automated printout of protocol and reset for next vehicle check Perfectly integrated in ADAS calibration and head light testing: The space in front of the lift can be used for the ADAS calibration jig and head light tester Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle No need for extra cameras, cables, clamps or targets required for ADAS calibration Best in class: +/- 2 minute accuracy Engineered and produced in Germany No fixed position for targets on the vehicle eliminates room for error Plug & play: no calibration required for installation or for exchanging targets Space-saving and easy storage of sensor heads on wall mount kit Beissbarth DualView camera system for ultimate control, especially of complex chassis OEM magnetic clamps for safe mounting on the wheel Highly repeatable initial measurement Rolling or driving run-out compensation at ground level Three selectable measurement routines: program-driven, quick measurement, choice-free access to single-value check Sophisticated software for maximum measurement and adjustment efficiency Real-time display of measured values combined with vehicle specs Visually animated adjustment instructions for third-party vehicles Several languages as standard for staff from all over the world ASA network ready   Cable version Scope of delivery: Sensor head with DualView camera technology +Software with SmartTest and ADAS calibration option Target boards Vehicle specs database Cabinet HighPerformance PC 27" Monitor Printer Multi-Fit wheel camp 13" - 22" with standard and Softline claws OEM magnetic clamp Lift adapter Cable set, 15 m Turntable Standard, without electronics Remote control Brake pedal depressor and steering wheel holder Weight 197 kg Operating temperature 5 - 40 °C Electrical connection 120 - 220 V | 50 - 60 Hz Data transmission type - corded Measuring system - 3D Power 0,5 kW Storage temperature -20 - 60 °C Packaging length 1150 mm Packaging width 1200 mm Packaging height 1600 mm Gross weight 219 kg Relative humidity, use (40 °C) 10 - 90 % Height cabinet 1520 mm Width cabinet 880 mm Depth cabinet 770 mm Weight cabinet 100 kg Height sensor head 130 mm Width sensor head 320 mm Depth sensor head 630 mm Weight sensor head 9,3 kg Height WLAN box 627 mm Width WLAN box 250 mm Depth WLAN box 131 mm Weight WLAN box 7,4 kg Degree of protection WLAN box IP 54   Vehicle database update Cars & Vans Europe | Key Card 1 690 002 015 Mechanical aluminum turntable Standard 1 690 501 001 Mechanical aluminum turntable Precision 1 690 401 028 Filling piece for aluminum turntable 1 690 702 082 Protective rubber cover for aluminum turntable 1 690 402 001 Sliding plate for rear axle | short 1 690 401 003 Sliding plate for rear axle | long 1 690 401 004 Drive-on ramps for two aluminum turntables 1 690 701 052 Drive-on ramps for turntables and sliding plates 1 690 401 008 Lift adapter extension from one to two positions 1 690 701 503 Special lift adapter for Beissbarth / Consul 1 690 701 123 Special lift adapter Extension for Beissbarth / Consul 1 690 701 311 Special lift adapter for lifts with U-profile 1 690 701 020 Floor adapter for LTB 100/300 1 690 701 506 Floor adapter for alignment pits 1 690 701 027 Magnetic clamps for wheel bolts | 75mm 1 690 701 508 Magnetic clamps for wheel bolts | 100mm 1 690 701 521 Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs. 1 690 311 112 Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc. 1 690 311 089 Extension set for Multi-fit clamps | 23 - 28" 1 690 311 113 Set softline claws for 1 x Multi-fit clamp | Softline rims 1 690 311 164 Set truck claws for 1 x Multi-fit clamp | Truck 1 690 311 115 Central clamp Porsche Carrera GT 1 690 301 002 Central clamp Porsche 911 GT3 and Turbo 1 690 380 002 Self-centering quick clamp for Porsche 1 690 380 010 Self-centering quick clamp for Tesla 1 690 380 161 Self-centering quick clamp for Ferrari 1 690 381 299 Target boards 340 cm 1 690 701 032 Extension for vehicles with narrow track width (Smart) 1 690 701 127 Standard target board for Easy 3D 1 690 711 005 Special target boards for DAS calibration jig in combination with 4-post lifts 1 690 701 152 Standard target boards for DAS calibration jig 1 690 701 119 Cable set 7.5 m / 7.5 m 1 690 701 205 Cable set 12 m / 12 m 1 690 701 029 Cable set 15 m / 15 m 1 690 701 030 Cable set 25 m / 25 m 1 690 701 163 Brake pedal depressor 1 690 401 006 Steering wheel holder 1 690 401 007 Step protection for Easy 3D 1 690 701 045 Toe press bar for Mercedes Benz 1 693 600 001 Ballast bag 5 kg 1 693 740 001 Ballast bag 8 kg 1 693 740 693 Ballast bag 10 kg 1 693 740 002 Ballast bag 20 kg 1 693 740 003
