BOSCH KTS 590

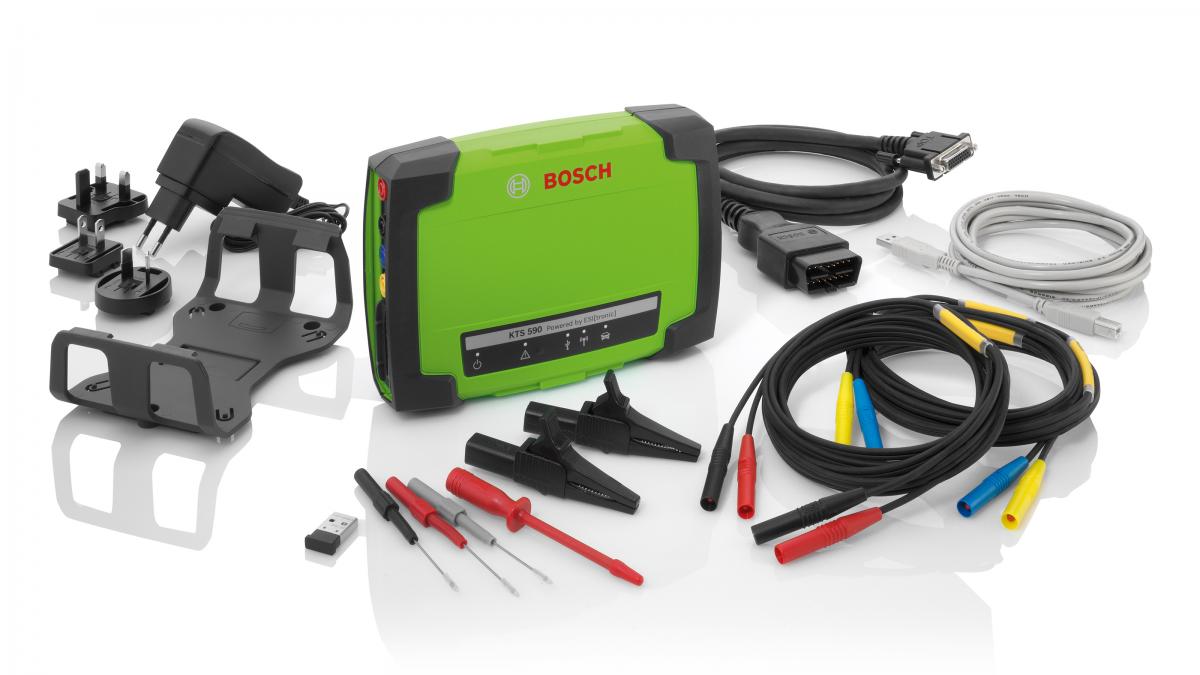

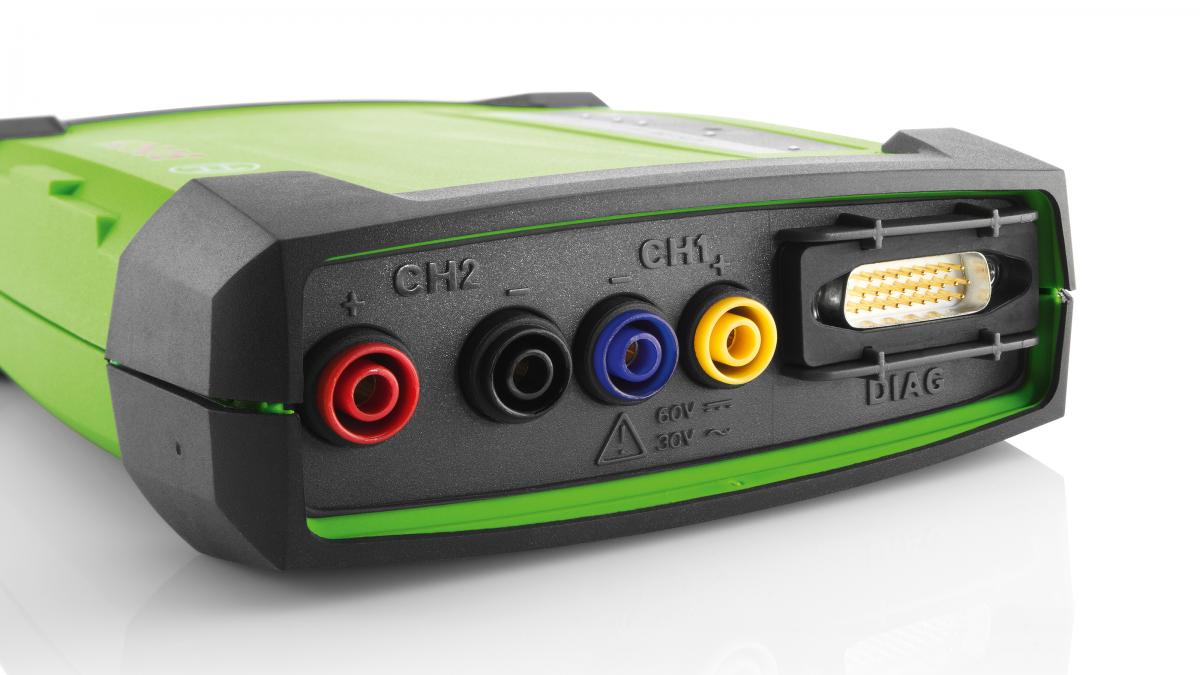

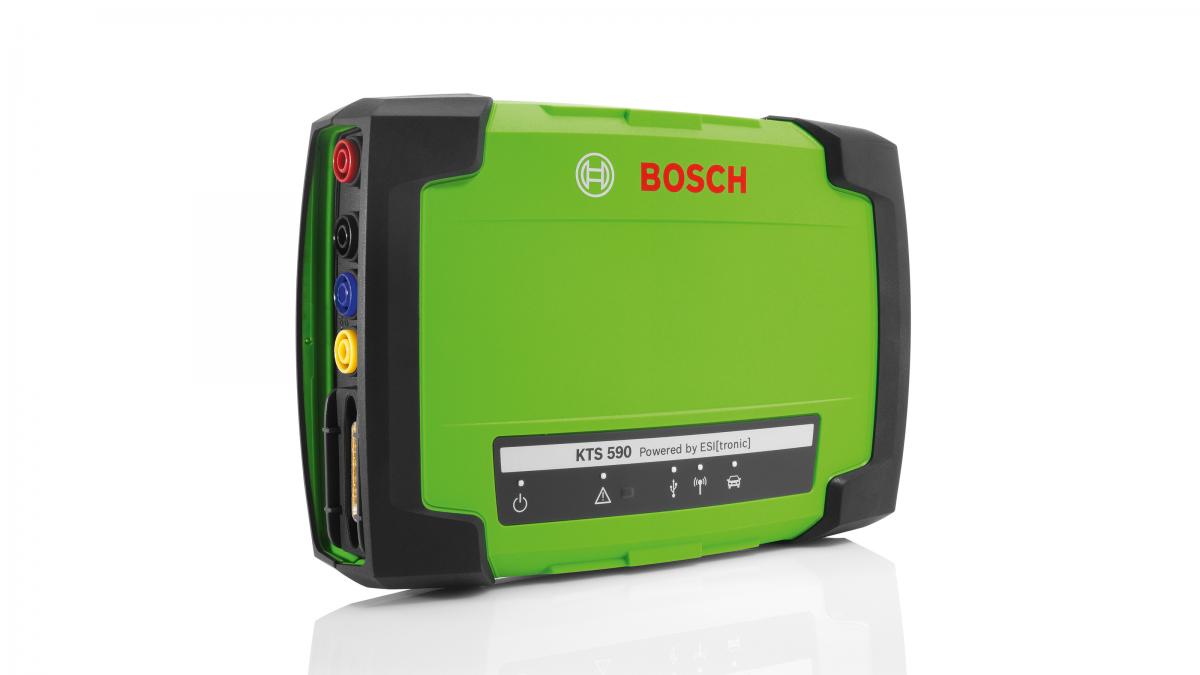

KTS 590– ECU Diagnostic tool for all current and future vehicles, with multimeter and oscilloscope The KTS 590 communication module ensures the most advanced ECU diagnosis for Ethernet-based (DoIP – Diagnostics over Internet Protocol) vehicle interfaces with features that will significantly enhance your workshop’s output. With access to the latest measuring technology, technicians can efficiently test and measure all sensor and actuator signals, and quickly and effectively evaluate voltage, resistance and current. As the most up-to-date control unit around, it is the future-proofed choice. Built-in 2-channel oscilloscope: Benefit from real-time viewing of electrical signal variation for highly precise testing of complex electrics Built-in 2-channel multimeter: Locate and fix electrical issues quickly Fully PassThru compliant: Access and reprogram vehicle manufacturer control unit software for efficient daily workshop routines Parallel diagnosis: The module can communicate with up to three CAN and K-Line interfaces simultaneously enabling fast and productive diagnosis 100 m-range Bluetooth connectivity: Ultimate convenience – increase your workshop coverage and increase your productivity Supports Bosch Easy Connect and other Bosch vehicle-specific adapters: Easily extend diagnostic capabilities with choice of vehicle-manufacturer-specific non-OBD cables Optimally designed for ESI[tronic] Evolution software (purchased separately): Enjoy intelligent diagnostics, trouble-shooting and support for rapid repair and maintenance Works on any Windows PC with ESI[tronic] Evolution installed and licensed: The versatile way to control diagnosis and repair within your workshop KTS 590 2-channel multimeter & 2-channel oscilloscope Connections to PC USB 2.0, Bluetooth® Class 1 Weight approx. 0.5 kg Operating voltage 8V DC-28V DC Power consumption via vehicle battery or power supply < 10 Watt Dust and water protection IP53 Multimeter bandwidth 100 kHz Oscilloscope sampling rate 20 MS/s Vehicle protocols ISO 15031, ISO 22900,SAE J2534-1 and -2(PassThru), ISO 9141-2(K and L), SAE J1850VPW and PWM,CAN High Speed ISO 11898,ISO 15765-4 (OBD),CAN Single Wire, CANLow Speed, ISO 13400(Diagnostics over IP),and other vehicle-specificprotocols Dimensions 125 x 44 x 180 mm(W x H x D) Operating temperature 5 °C – 40 °C Scope of Delivery OBD connection cable (1.5 m) Power supply unit Test lead/probe set Measuring lead (red /black) only KTS 590 Tapping clamp black Test tip red USB connecting cable (3m) Mounting kit Trolley mounting parts set Bluetooth® USB adaptor Operating manual Storage case Special Accessories    BMW 20-pin 1 684 463 631 Daewoo/GM/Holden 12-pin 1 684 463 632 Fiat-Group 3-pin 1 684 463 613 Honda 3/5-pin 1 684 463 634 Hyundai/Mitsubishi 12-pin 1 684 463 638 KIA 20-pin 1 684 463 636 Mazda 25-pin 1 684 463 637 Nissan 14-pin 1 684 463 639 OBD-Adapter PKW-NKW 24/12V 1 684 463 650 Renault PkW 12-pin 1 684 465 582 Toyota “Avensis” without pin 1 and 9 1 684 463 686 Toyota 17-pin 1 684 463 642 Toyota 23-pin 1 684 463 643 VW/ Audi 2pin 1 684 463 611 Suzuki 6-pin 1 684 463 641 Mercedes Benz 14-pin (Sprinter, Atego) 1 684 463 594 SD-Adapter Set 1 in case(BMW, Citroën, Peugoet, Fiat, Lancia, Alfa, Renault) 1 687 011 517 SD-Adapter Set 2 in case(BMW, Citroën, Peugoet, Fiat, Lancia, Alfa, Toyota, VW, Audi, MB) 1 687 011 516 Connection line OBD cable to Uni 4 for vehicle-specific adapters with banana sockets 1 684 463 539 USB Bluetooth Extension 1.8m for Bluetooth USB Adapter 1 684 465 564 USB Bluetooth Extension 3.0m for Bluetooth USB Adapter 1 684 465 565 Bracket for Bluetooth USB adapter 1 681 312 005 Test cable set 1 687 011 208 OBD adapter box with OBD plug and additional OBD socket 1 684 462 514 AC / DC current tongs 100/600 A with banana plug 1 687 224 864
