BOSCH KTS 560

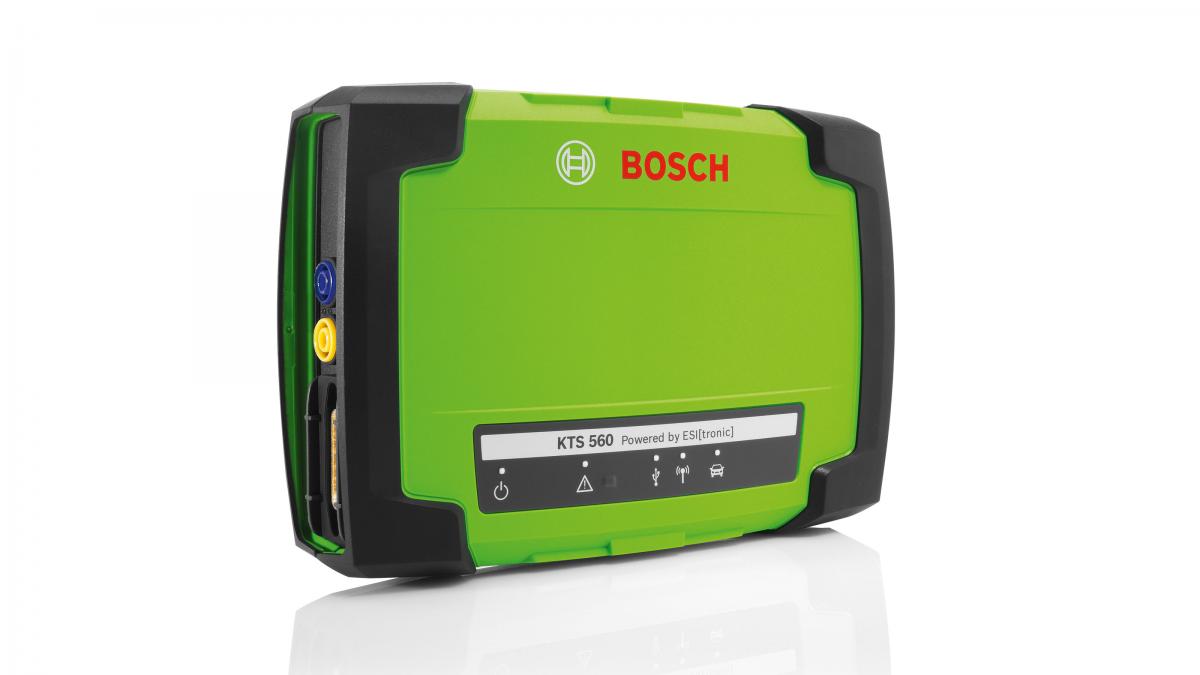

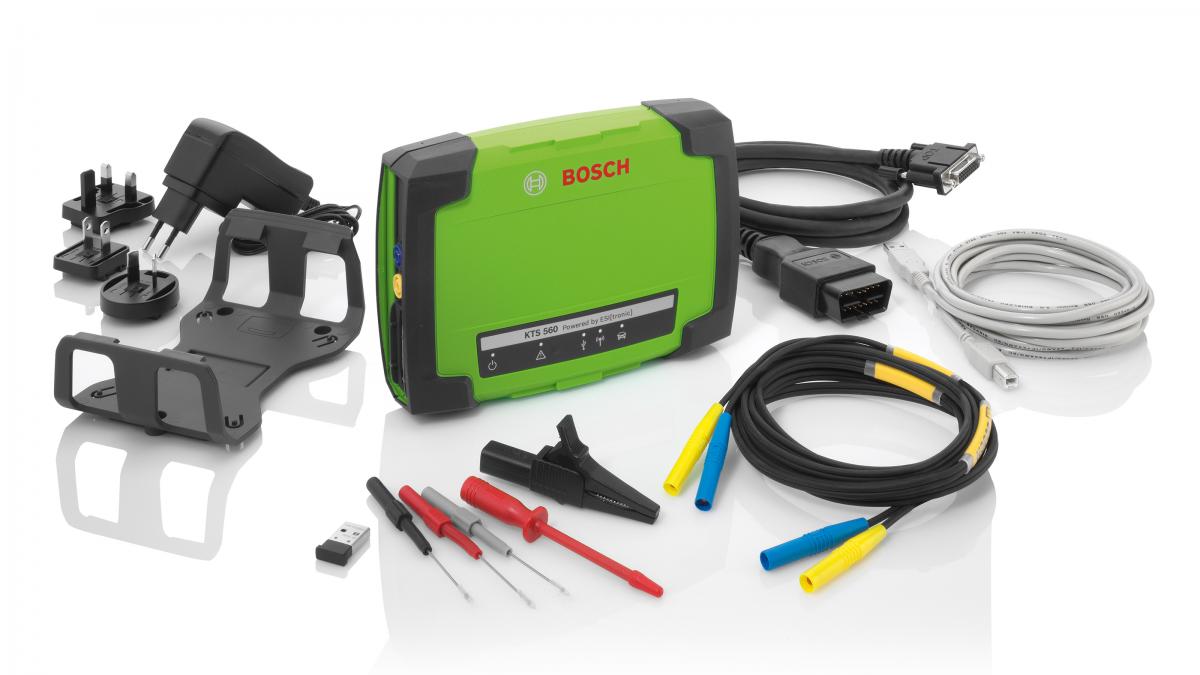

KTS 560– ECU Diagnostic tool for all current and future vehicles, with multimeter     Scope of delivery   The many innovative features of the KTS 560 diagnosis module will speed up your workshop operations, improve accuracy and enhance potential. The module’s advanced, fully compliant PassThru interface enables easy reprogramming of vehicle manufacturer software, and the ability to run parallel diagnosis – the module can communicate with up to three CAN and K-Line interfaces simultaneously – meaning faster, more productive output. KTS 560 – it’s the way to boost diagnostic efficiency in your professional workshop. Features and Benefits Built-in 1-channel multimeter: Quick and convenient way to resolve issues with voltage, current and resistance Ethernet-interface (DoIP – Diagnostics over Internet Protocol): Be prepared today to meet the requirements of tomorrow. Supports current and future vehicle interfaces based on Ethernet Compatible with Bosch Easy Connect and other Bosch vehicle-specific adapters: Easily extend diagnostic capabilities with choice of vehicle-manufacturer-specific non-OBD cables Powerful and stable 100 m-range Bluetooth connectivity: Operate at maximum efficiency and get increased coverage around the workshop Optimally designed to use ESI[tronic] Evolution software (purchased separately): Enjoy much more than just diagnostics with intelligent troubleshooting and support for rapid repair and maintenance Works on any Windows PC with ESI[tronic] Evolution installed and licensed: Control diagnosis and repair in a truly versatile way that suits your workshop set-up Technical Data   KTS 560 1-channel multimeter Operating voltage 8V DC-28V DC Power consumption via vehicle battery or power supply < 10 Watt Connections to PC USB 2.0, Bluetooth®Class 1 Weight approx. 0.5 kg Dust and water protection IP53 Multimeter bandwidth 100 kHz Vehicle protocols ISO 15031, ISO 22900, SAE J2534-1 and -2 (PassThru), ISO 9141-2 (K and L), SAE J1850 VPW and PWM, CAN High Speed ISO 11898, ISO 15765-4 (OBD), CAN Single Wire, CAN Low Speed, ISO 13400 (Diagnostics over IP), and other vehicle-specific protocols Dimensions 125 x 44 x 180 mm(W x H x D) Operating temperature 5 °C – 40 °C Scope of Delivery OBD connection cable (1.5 m) Power supply unit Test lead/probe set Tapping clamp black Test tip red USB connecting cable (3 m) Mounting kit Trolley mounting parts set Bluetooth® USB adaptor Operating manual Storage case Special Accessories    BMW 20-pin 1 684 463 631 Daewoo/GM/Holden 12-pin 1 684 463 632 Fiat-Group 3-pin 1 684 463 613 Honda 3/5-pin 1 684 463 634 Hyundai/Mitsubishi 12-pin 1 684 463 638 KIA 20-pin 1 684 463 636 Mazda 25-pin 1 684 463 637 Nissan 14-pin 1 684 463 639 OBD-Adapter PKW-NKW 24/12V 1 684 463 650 Renault PkW 12-pin 1 684 465 582 Toyota “Avensis” without pin 1 and 9 1 684 463 686 Toyota 17-pin 1 684 463 642 Toyota 23-pin 1 684 463 643 VW/ Audi 2pin 1 684 463 611 Suzuki 6-pin 1 684 463 641 Mercedes Benz 14-pin (Sprinter, Atego) 1 684 463 594 SD-Adapter Set 1 in case(BMW, Citroën, Peugoet, Fiat, Lancia, Alfa, Renault) 1 687 011 517 SD-Adapter Set 2 in case(BMW, Citroën, Peugoet, Fiat, Lancia, Alfa, Toyota, VW, Audi, MB) 1 687 011 516 Connection line OBD cable to Uni 4 for vehicle-specific adapters with banana sockets 1 684 463 539 USB Bluetooth Extension 1.8m for Bluetooth USB Adapter 1 684 465 564 USB Bluetooth Extension 3.0m for Bluetooth USB Adapter 1 684 465 565 Bracket for Bluetooth USB adapter 1 681 312 005 Test cable set 1 687 011 208 OBD adapter box with OBD plug and additional OBD socket 1 684 462 514 AC / DC current tongs 100/600 A with banana plug 1 687 224 864
