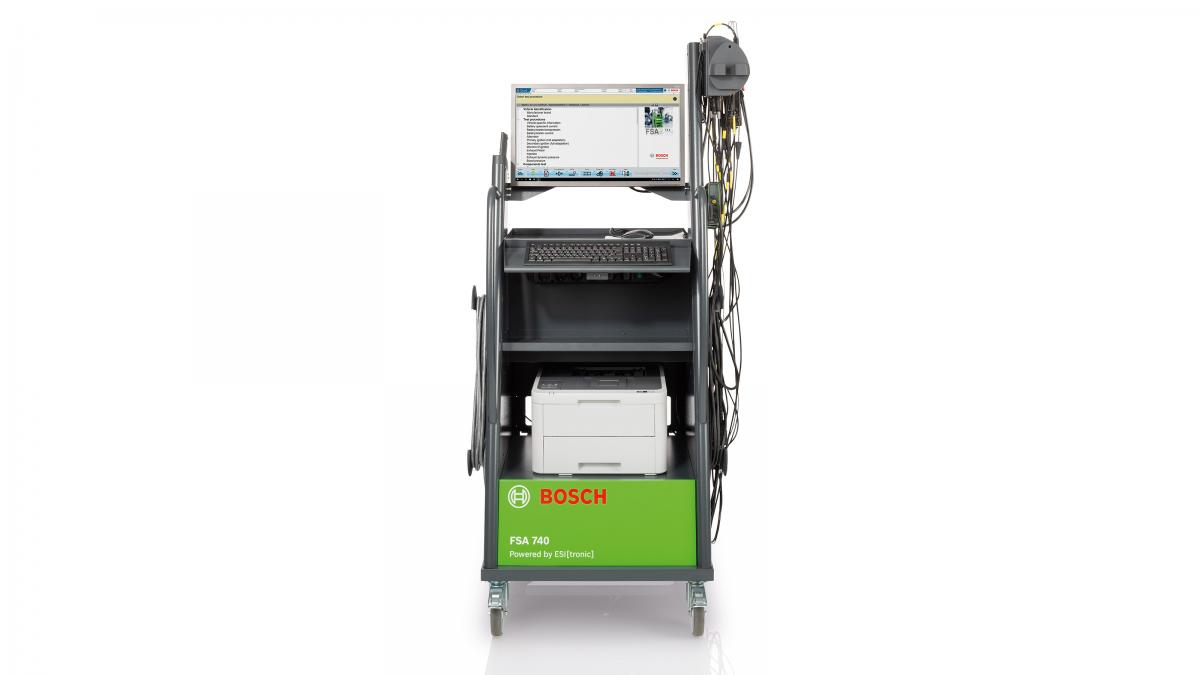

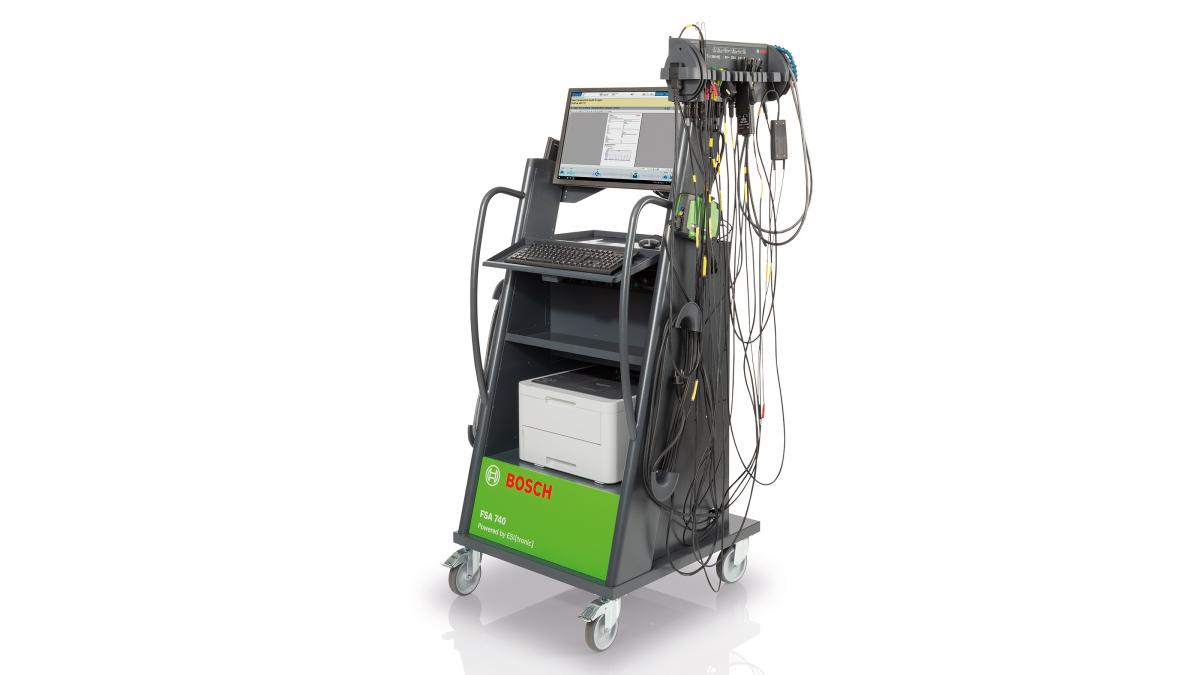

FSA 740– measuring system with KTS                 1/4         With the FSA 740 (with KTS 560), you’ll be ready for versatile and reliable ECU fault diagnosis as well as efficient and accurate vehicle electrical system testing, all with one complete system. The FSA 740 package places everything at your fingertips now for true workshop flexibility that’s a safe investment for the future. The high-spec 2-channel oscilloscope delivers an impressive sample rate of 50 MS/s, helping technicians to capture highly accurate waveform pictures and speedily resolve electrical issues. Get in touch More Information Features and Benefits Premium diagnosis system: Everything a workshop needs for incredibly efficient diagnosis In-situ component testing with 50 pre-set tests: Time-saving and accurate pinpointing of component problems boosts workshop productivity 24-hour battery discharge measurement: Extensive electronic measurement equipment helps with those difficult-to-locate and difficult-to-diagnose battery issues Signal generator for testing installed sensors: Maximum efficiency for electrical and electronic component testing Clear menu structure within SystemSoft[plus] software: Intuitive steps mean fast and efficient testing Modular concept: Extend with ESI[tronic] diagnostic software, with modules from the BEA series for exhaust gas measurement, or with FSA 050 for enhanced testing of electric/hybrid vehicless Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently Technical Data FSA 740 2-Channel Oscilloskope Scan rate 50 MS/s Signal generator 10 to 12 V with 4 signal forms, 1 Hz bis 1 kHz Measuring range voltage 0 to 60 V Measuring range current 0 to 1000 A Measuring range resistance 0 to 1 MΩ Measuring range ignition voltage up to ± 50 kV Measuring range rotation speed 100 to 12 000 1/min Measuring range oil temperature -20 °C to 150 °C Measuring range air temperature -20 °C to 100 °C Measuring range pressure (atmospheric) -800 hPa to 1500 hPa Measuring range liquid pressure 0 to 1000 kPa Number of component tests 60 Number of guided test procedures 18 (with set values) Number of concurrent viewable sensor signals 6 Storage of signal sequences yes Power supply 220 V AC - 240 V AC, 50 / 60 Hz, 700 W Operating temperature range 5 °C to 40 °C Dimensions (H x W x D) 1780 x 860 x 760 mm Weight 91 kg PC system in FSA Operating system Windows 10 IoT Enterprise Processor Intel® Pentium® G4560 @3.5 GHz (2 Cores / 4 Threads) Memory 8 GB DDR4, optional upgrade to 16 GB Storage 256 GB SSD DVD Player integrated Interfaces 6 x USB 3.0, 6 x USB 2.0, LAN 1000 Mbit, VGA, DVI-D, HDMI, Display Port WiFi IEEE 802.11 g,n; 2,4 GHz Scope of Delivery Trolley with measurement module FSA with sensor mount Diagnostic module KTS 560 with OBD cable PC with operating system Windows 10 24" screen Keyboard and mouse Color laser printer Remote control (transmitter and receiver) Current limiter DVD with PC Software CompacSoft[plus] 2 Y-adapter Universal kV probe Connecting cable Multi 1 Connecting cable Multi 2 Connecting cable B+/B- Connecting cable term. 1/15 Sensor 3 x kV+ (red) Sensor 3 x kV- (black) Clip-on trigger Current probe 1000 A Current probe 30 A Stroboscope Oil temperature sensor Air pressure measurement with hose Universal secondary sensor Special Accessories    Air temperature sensor 1 687 230 060 3 m extension cable for temperature sensor 1 684 465 517 Secondary sensor for pencil coil 1 687 224 987 Test cable set (transmitter and receiver) 1 687 011 208 Gasoline package (BEA 055 - for DE) 1 687 001 975 Diesel package (BEA 070 - for DE) 1 687 001 976 Gasoline package (BEA 050 - for AT) 1 687 001 865 Diesel package (RTM 430 - for AT) 1 687 001 577 Primary ignition package 0 688 100 017 Secondary ignition package 0 688 100 002 Fluid pressure kit (up to max. 10 bar) 1 687 430 008 FSA 050 0 684 010 050
