BOSCH FSA 720

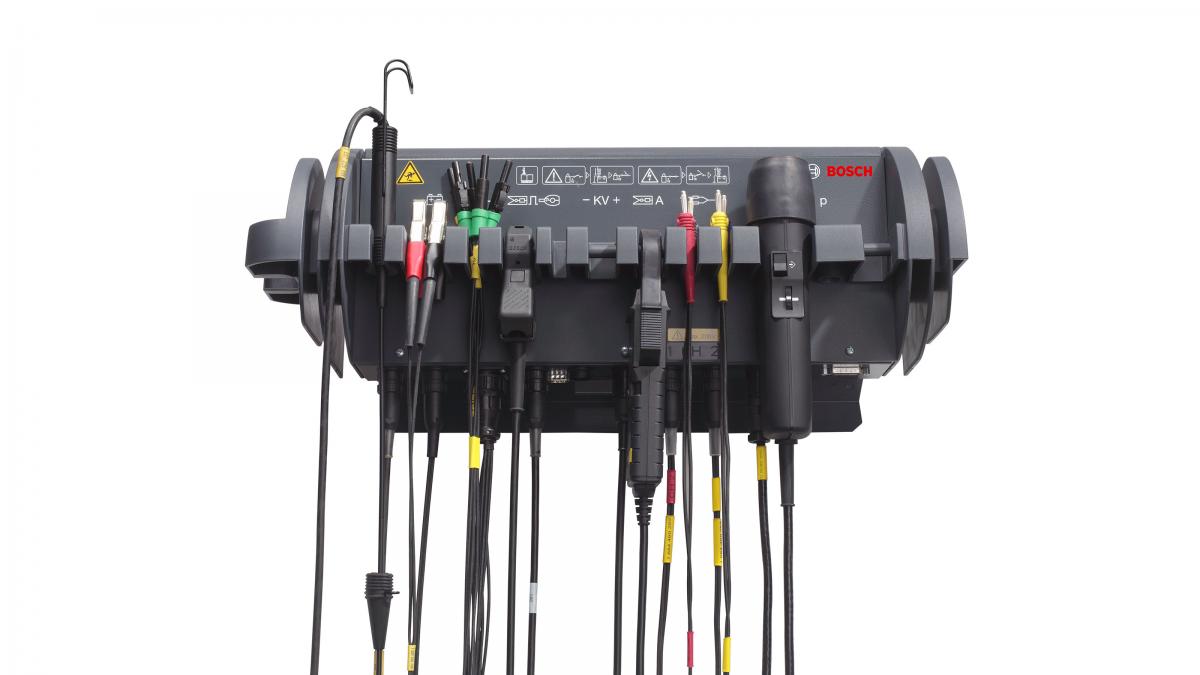

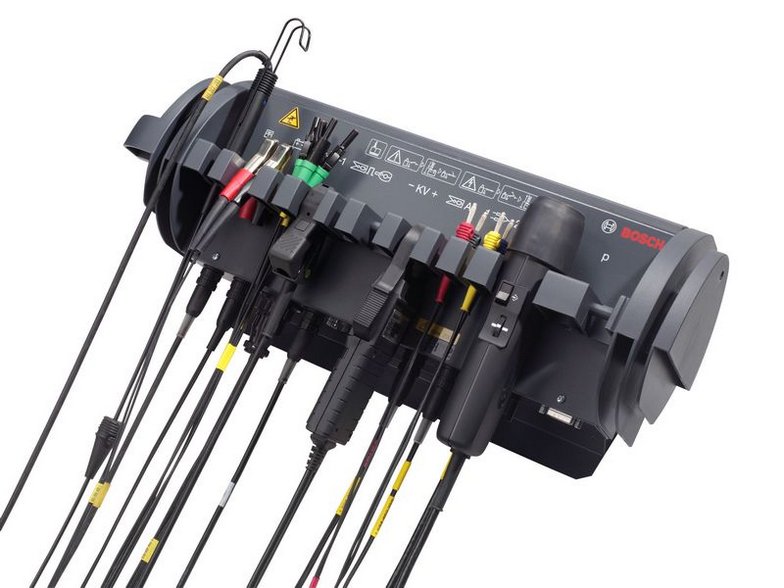

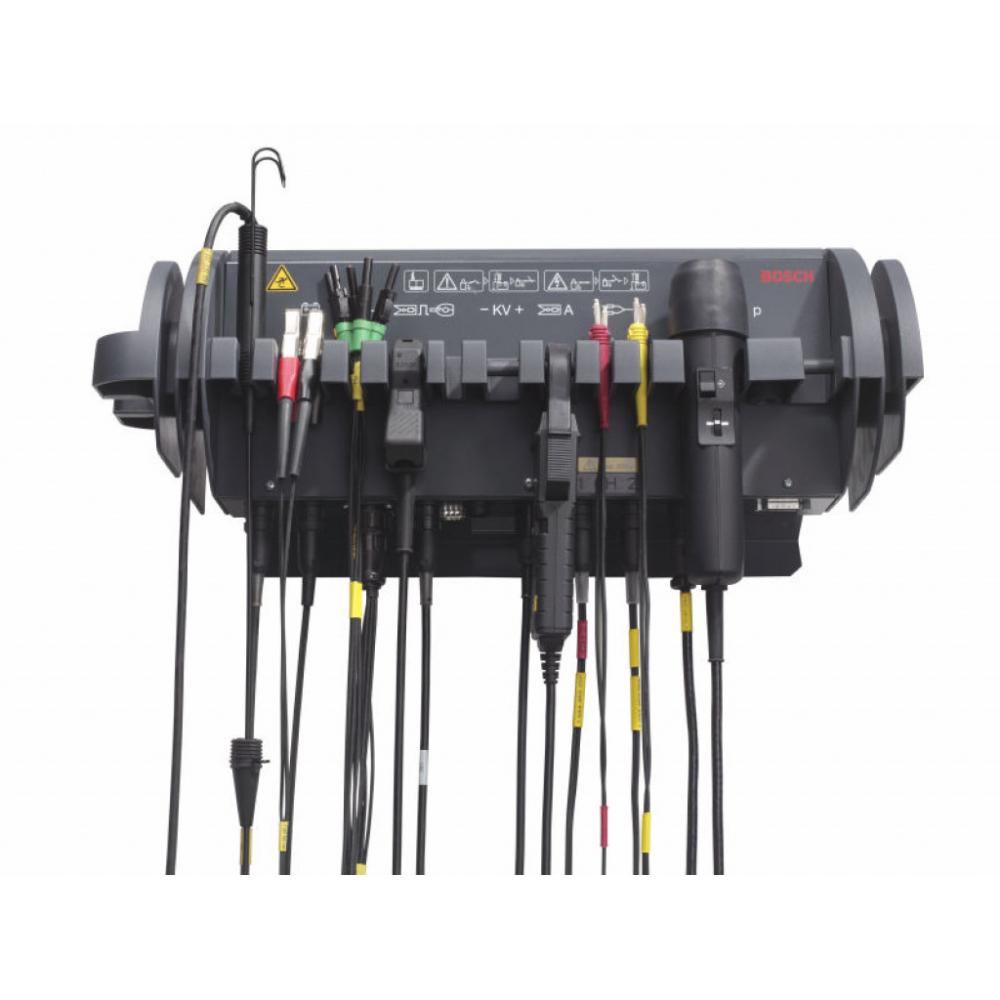

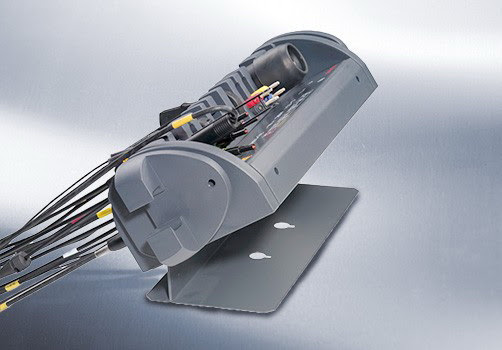

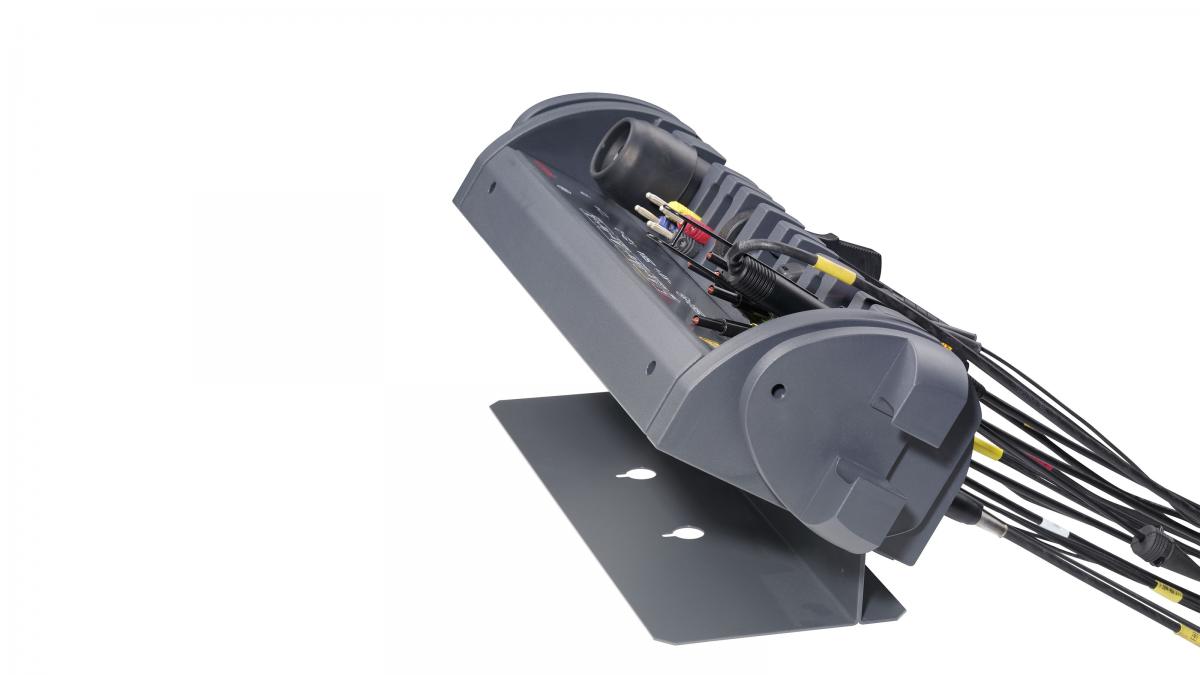

0 684 010 500 FSA 720– portable measuring module         1/2         Vehicle systems and components are increasingly complex, and a modular diagnosis platform is the practical way to ensure efficiency today and flexibility tomorrow. The FSA 720 system tester has extensive sensor equipment for productive, uninterrupted working – you won’t need to keep changing the sensor – and with 10 sensor slots, there’s also one available for future sensor technology. The versatile FSA 720 provides convenient measuring and testing of engine-related signals through to components. Features and Benefits 50 pre-set component tests (CompacSoft[plus] subscription required): Test in-situ vehicle components in no time at all High-performance 2-channel oscilloscope with high sample rate (50 MS/s): Capture electric waveforms quickly for a highly accurate and speedy resolution of electrical issues Battery discharge measurement over 24 hours: Extensive electronic measurement equipment helps diagnose difficult-to-locate battery issues and finds frequent causes of starting problems Intuitive SystemSoft[plus] software with menu-guided steps: Clear and concise for fast and accurate vehicle system testing Extendable solution: Combine with KTS modules for integrated display of actual value from ECU diagnostics. Use with FSA 050 for enhanced testing of electric/hybrid vehicles Tailored accessories: Check out the many probes, sensors and packages available for optimal use within a professional workshop Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently Technical Data    2-Channel Oscilloskope Scan rate 50 MS/s Signal generator 10 V to 12 V with 4 signal forms, 1 Hz to 1 kHz Measuring range voltage 0 V to 60 V Measuring range current 0 A to 1000 A Measuring range resistance 0 to 1 MΩ Measuring range ignition voltage up to ± 50 kV Measuring range rotation speed 100 to 12 000 1/min Measuring range oil temperature -20 °C to 150 °C Measuring range air temperature -20 °C to 100 °C Measuring range pressure (atmospheric) -800 hPa to 1500 hPa Measuring range liquid pressure 0 to 1000 kPa Number of component tests 60 Number of guided test procedures 18 (with set values) Number of concurrent viewable sensor signals 6 Storage of signal sequences yes Power supply 15 V / 4.3 A Operating temperature 5 °C to 40 °C Dimensions (H x W x D) 180 x 550 x 200 mm Weight 8 kg Scope of Delivery Measurement module with sensor mount Stand Power supply unit with power cord SystemSoft[plus] system software Connecting cable Multi 1 and Multi 2 Connecting cable B+/B- Connecting cable term. 1/15 Sensor 3 x KV+/red Sensor 3 x KV-/black Clip-on trigger Current probe 1000 A Stroboscope Oil temperature sensor Air pressure measurement with hose 30 A clamp Special Accessories    Current probe 30 A 1 687 224 969 Air temperature sensor 1 687 230 060 3 m extension cable for temperature sensor 1 684 465 517 Y-adapter 1 687 023 356 Y-adapter for differentiation measurement on the particle filter (VW Gruppe) 1 684 463 837 Y-adapter for differentiation measurement on the particle filter (Mercedes) 1 684 463 838 Universal secondary sensor 1 687 224 973 Secondary sensor for pencil coil 1 687 224 987 Test cable set (transmitter and receiver) 1 687 011 208 Remote control 1 687 201 985 Primary ignition package (BMW, Opel) 0 688 100 017 Secondary ignition package 0 688 100 002 Fluid pressure kit (up to max. 10 bar) 1 687 430 008 FSA 050 0 684 010 050
