BOSCH DCI 700

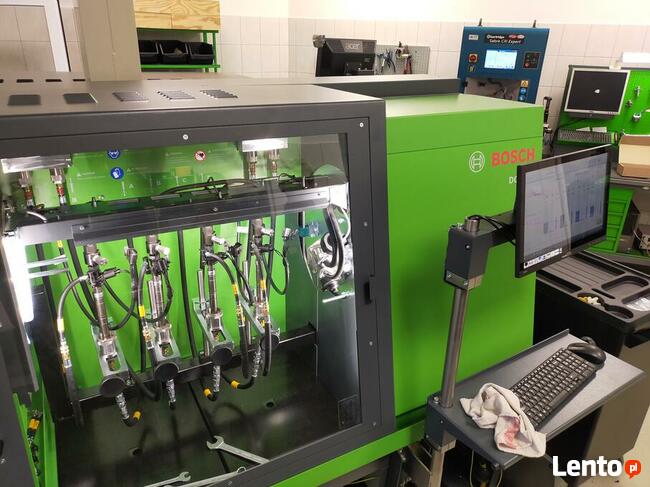

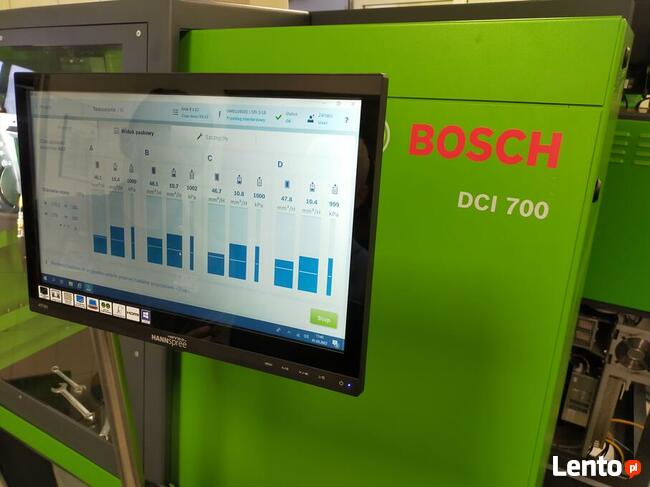

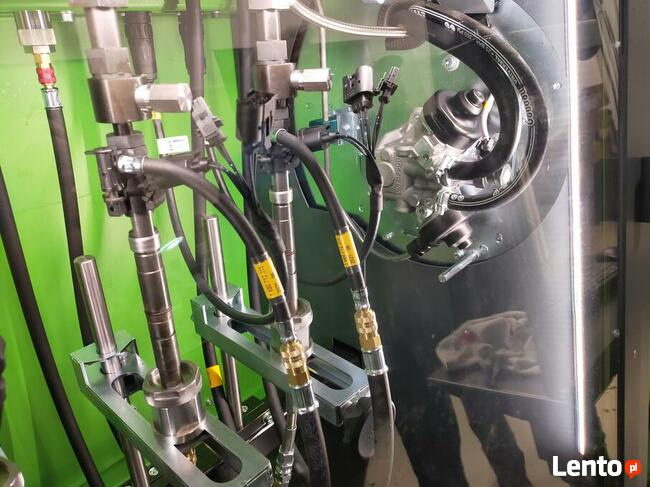

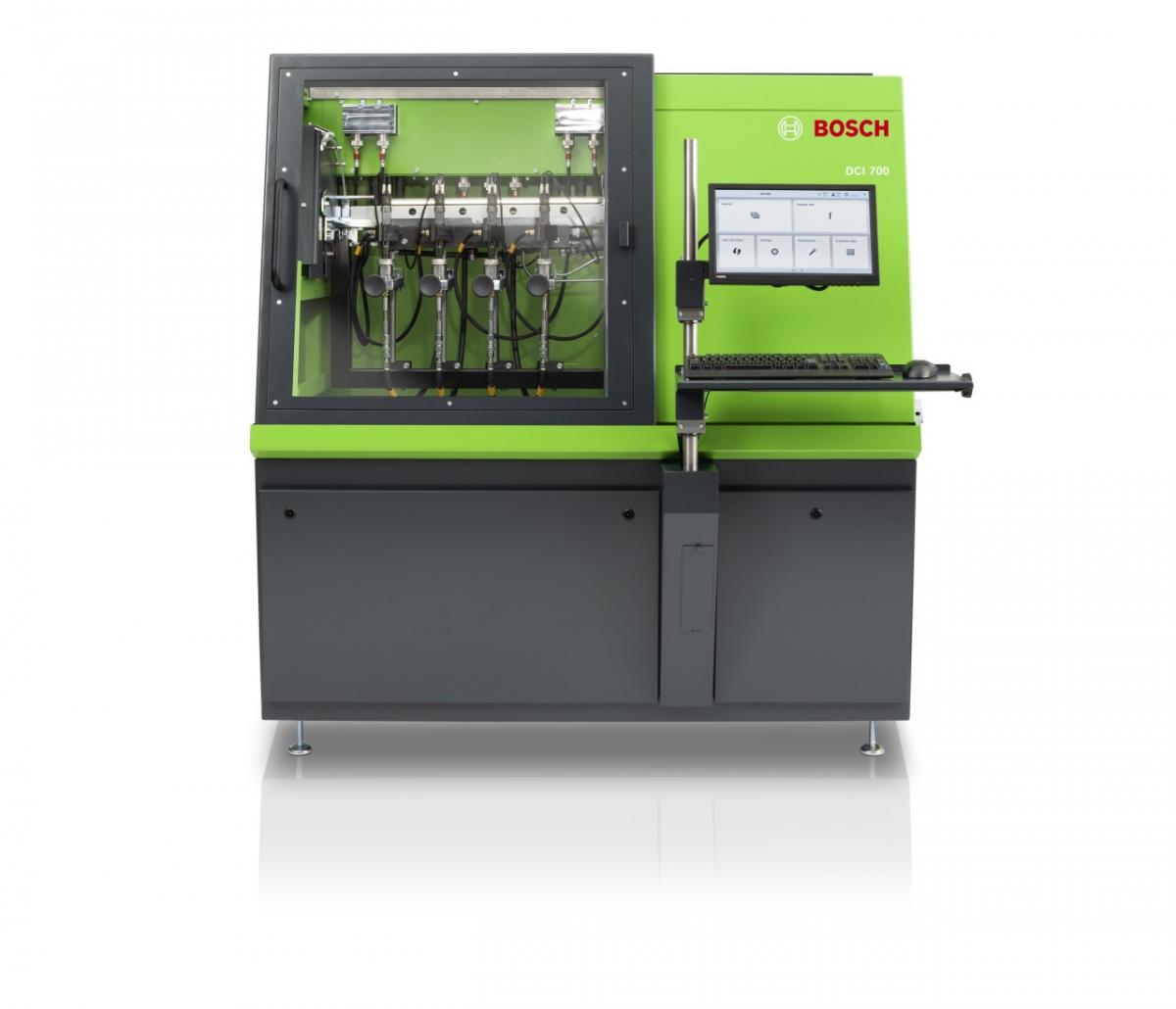

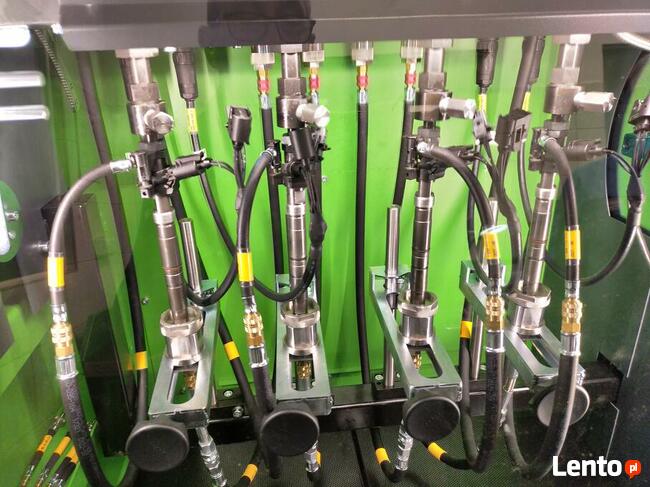

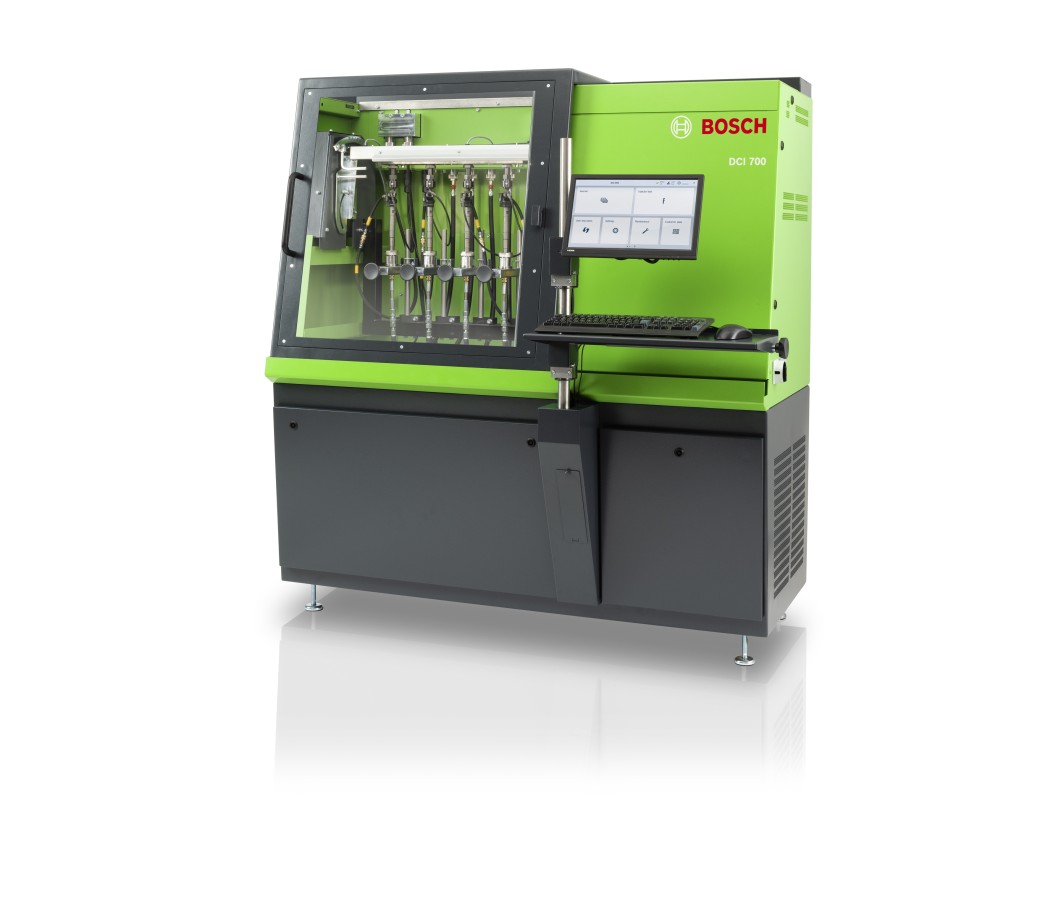

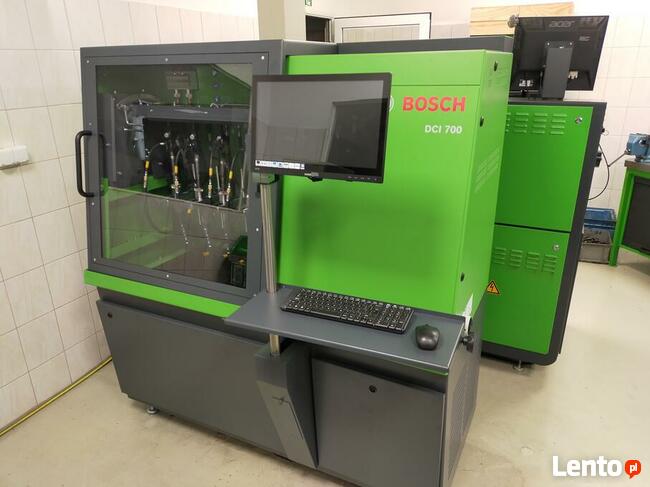

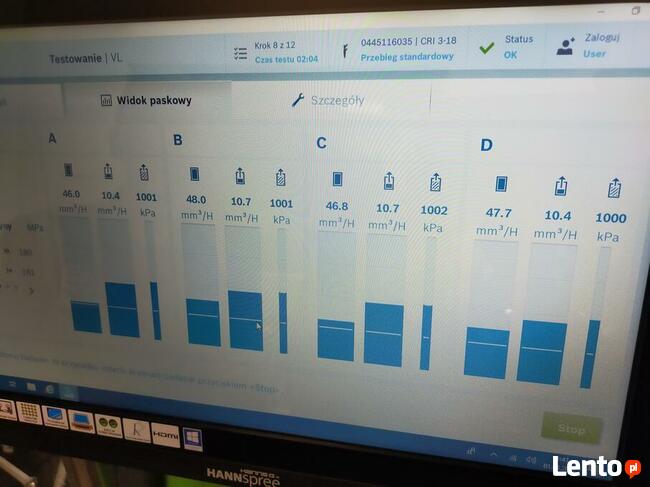

DCI 700– common-rail Injector test bench Mounting and dismounting of injectors on DCI 700   Thanks to the simple menu navigation and the graphic and numerical presentation of the results, the DCI 700 enables an efficient way of working and is therefore extremely cost-effective. The Bosch DCI 700 diesel test bench is designed with the future in mind with its new measurement system that has the ability to test the latest common rail injector technologies for all car and commercial vehicle systems, including those with Needle Closing Control (NCC) and Valve Closing Control (VCC). The DCI 700 offers you and your workshop super-efficient testing with its short mounting and testing times, which enable four common rail injectors to be tested in less than 15 minutes. Designed with a tapered base, it allows the operator to stand closer to the bench without having to bend to mount the injectors. This is one of the many ergonomic features that make the DCI 700 so easy-to-use. Features and Benefits Ergonomic and intuitive design: For easy operation Short mounting and testing times: For supreme efficiency Test all cars and commercial vehicles: For versatility New technology: For futureproofing the equipment and your requirements Adjustable screen: Each operator can set height and angle of the screen individually Faster, more accurate test measuring: For more precise outcomes in terms of adjustments to injectors Online updates: Keeping you up-to-date with current test specifications Bright, dazzle-free workspace lighting: Giving great visibility of leaks whilst also being easy on the operator’s eyes Clear and accurate results: Demonstrate your expertise and service level to customers with a printed test report (printer optional) No need for high-pressure hoses: To reduce service costs Technical Data Test pressure 30 MPa to 250 MPa Max. Rail pressure 260 MPa Mechanical pressure limitation 270 MPa Rail pressure control by 2 Pressure control valves (DRV) on Rail and MeUN in CP4 Automatic Injector back flow pressure control 50 kPa to 1200 kPa Used HD pump for test pressure generation CP4.2 (CP4-25) Capacity of test oil tank:at the max. markingat the max. marking 45 l35 l Tightening torques of high-pressure connections, locking screws 25 Nm Dimensions with monitor and keyboard tray (W x H x D ) 1700 x 1736 x 1082 mm Dimensions without monitor and w/o keyboard tray (W / H / D ) 1616 x 1736 x 786 mm Weight without test oil 590 kg Operating System Windows 10 IoT Enterprise 2019 LTSC, 64 Bit Software and data base updates via DDM (Diagnostic Download Manager, Internet connection necessary) AC Voltage supply 380 VAC to 460 VAC Rated current 15 A Fuse 16 A Phases 3 P/PE Input frequency 50 Hz/60 Hz Protection class entire test bench IP 20 Air pressure, corresponds to a height of 700 hPa to 1060 hPa ≤ 2200m Workplace-related emission sound pressure level according to DIN EN ISO 11201 < 69.2 dB(A) +/- 2.5 dB Operating temperature 5 °C to 40 °C Max. permissible relative humidity ≤90 % (at 25 °C and 24 hours duration) Storage temperature -20 °C to 60 °C Scope of Delivery  Injector test bench DCI 700 High pressure pump CP4.2 CRI accessory kit for solenoid and piezo CRIs 15.6'' LCD Touchscreen Tray for keyboard Working area lightning Electric CRI connection lead (2, 3, 4 pin) Special Accessories    CRIN 1, CRIN 2 and CRIN 3 accessory kit for commercial vehicle CR-Injectors 1 687 010 607 Printer 1 687 001 850 Adapters for CRIN injectors
