BOSCH BEA 030

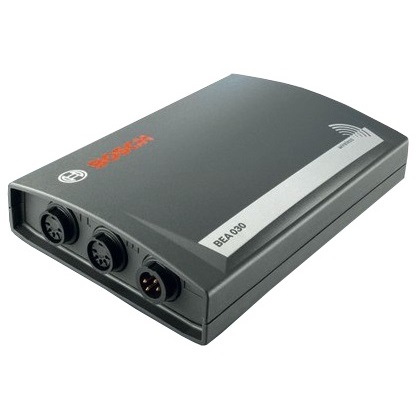

The BEA 030 is a mobile tester for use in motor vehicle workshops. BEA 030 is a measurement module for the exhaust gas analyzers BEA 060, BEA 070, BEA 550 and BEA 950 (gasoline and diesel). Communication between the PC/Laptop and the BEA 030 can take place either by way of a Bluetooth connection or a USB connection. 3.3 Scope of delivery iThe scope of delivery depends on the product variant ordered as well as the special accessories ordered, and can deviate from the following list. Designation BEA 030 Oil temperature sensor Order number en 1 687 230 068 Battery connecting cable B+/B !If the BEA 030 and the supplied accessories are operated contrary to the way specified by the manufacturer in the operating instructions, the protection provided by the BEA 030 and the supplied accessories may be compromised. Measurement functions: R Speed measurement $ By way of battery harmonic content $ By way of TD/TN/EST $ By way of BEA 040/BDM 300 R Oil temperature measurement Connecting cable for cigarette lighter socket Connecting cable TD/TN/EST Power supply unit with power cord USB connecting cable (3 m) Bluetooth USB adapter Case 1 684 463 822 1 684 463 547 1 684 460 196 1 687 023 817 1 684 461 106 1 684 465 562 1 685 438 626 Operating instructions 3.4 3.4.1 The BEA 030 is supplied with voltage by way of a power supply unit or the vehicle battery.
