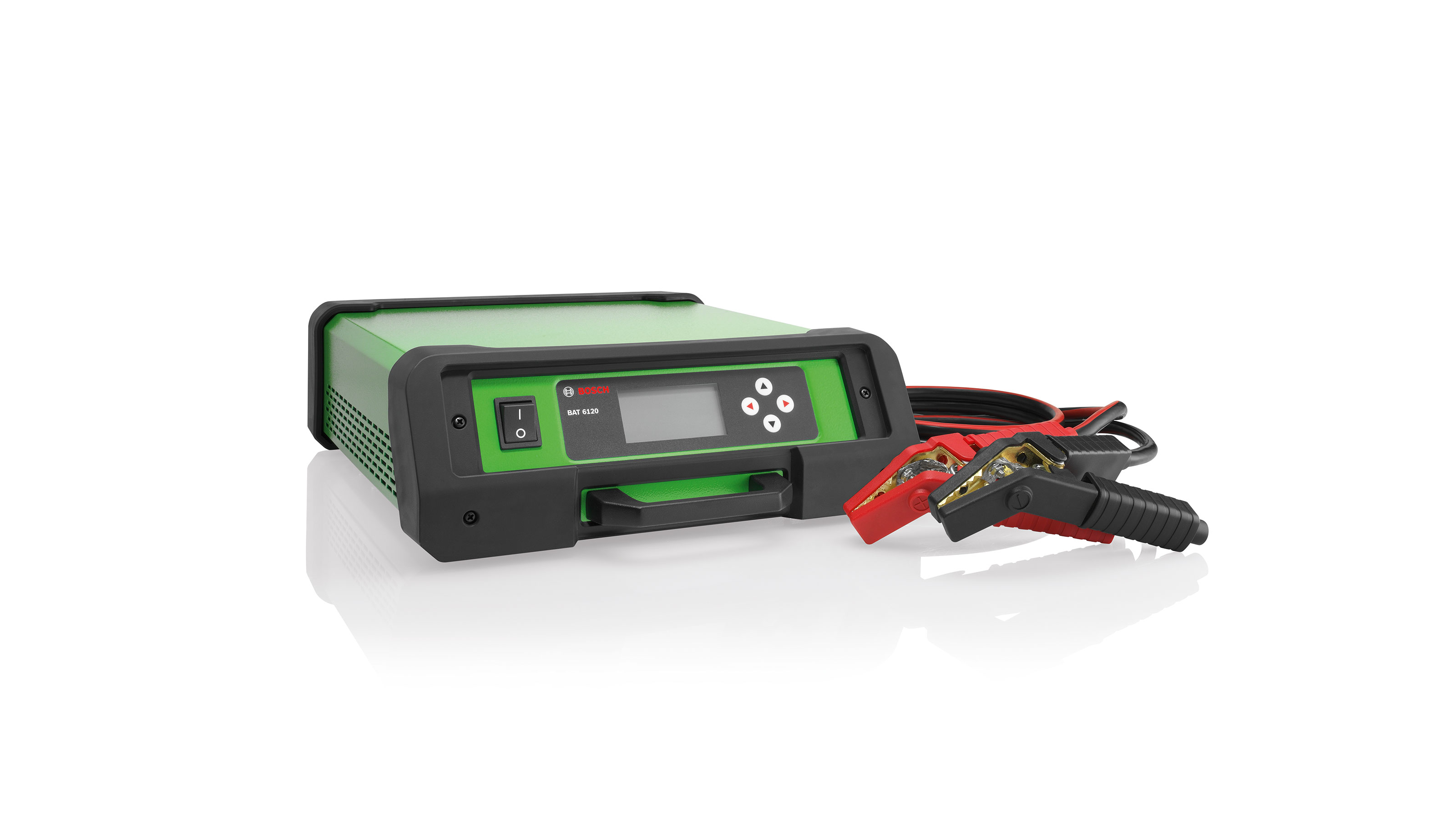

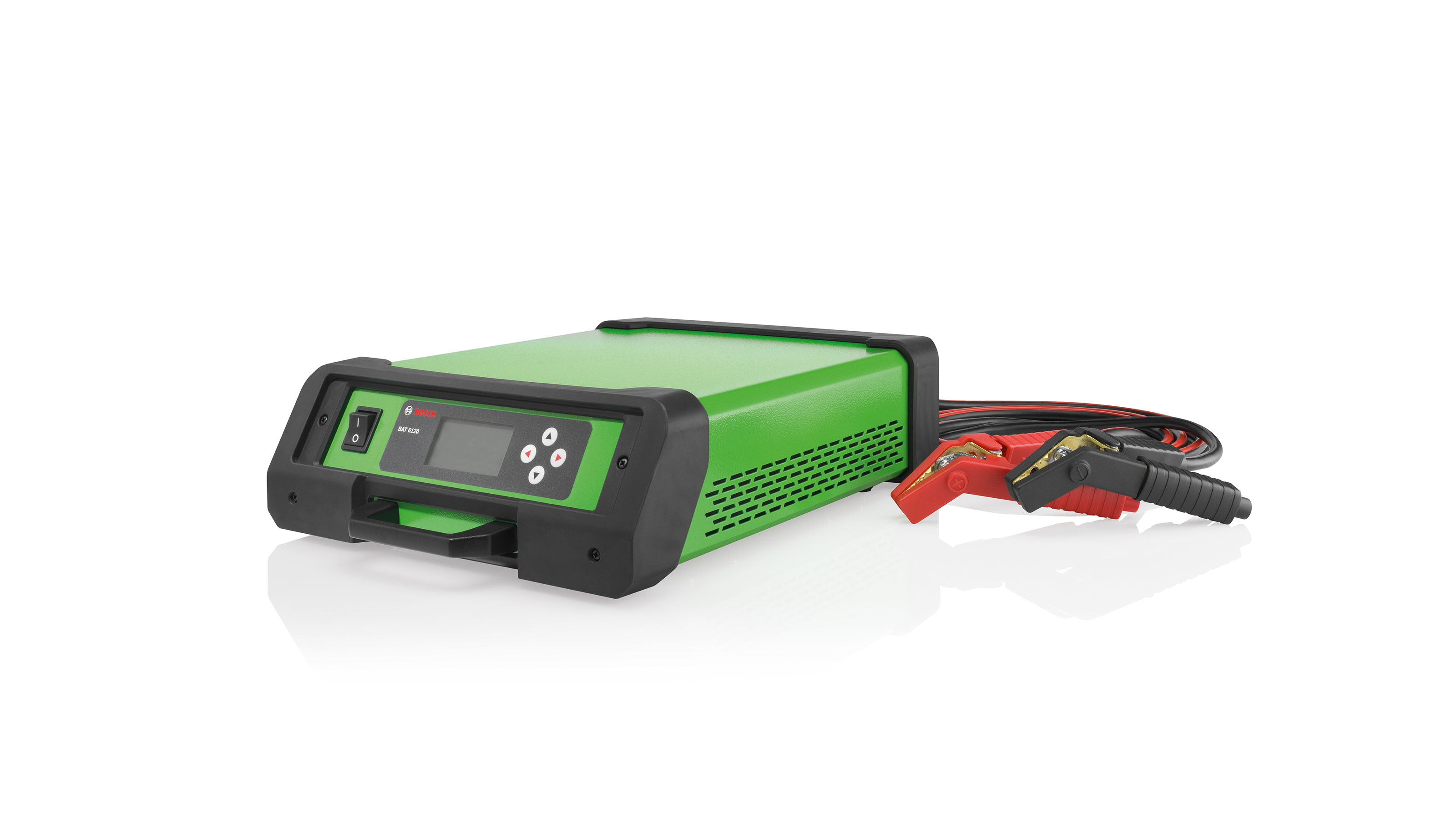

BAT 6120– battery charger
With the capability to update charging characteristics via USB, your workshop remains equipped for the very latest in battery technology. The BAT 6120 is perfectly suited for operating on desk, bench, or floor and is also wall-mountable. It will even fit neatly beneath a car in a showroom. Flexible operation modes fulfil today’s workshop requirements and the large 4-colour backlit LCD display, with 4 buttons makes it intuitive to use.
Features and Benefits
- Supports 120 A DC Continuous Output (@AC120 V~240 V, 25 ℃)
- Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
- Interface available in 26 languages
- 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
- Maximum power output: up to 1750 W
- Flexible operation modes to fulfill customer needs
- Desk, floor or wall operations possible
- Fits underneath a car in show room
- Easy to use large 4 colour backlight LCD display including wall mount mode
- Easy access to BAT 6120 Help Center web page through QR code displayed on the screen
Technical Data
| Max. Charge current intensity 12V |
120 A |
|
Length of the charging cable
|
3 m (twin cable)
|
|
Cross-section charging cable
|
25 mm²
|
|
Power input
|
120~240 V AC for US/EU; 100 V AC for JPN
|
|
Weight (without charging and power cable)
|
8,5 kg
|
|
Charging characteristic
|
up to 120 Amperes continuous. Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4)
|
|
Backup mode
|
12,0 V - 13,2 V adjustable, default 12,6 V; 10 A - 30 A adjustable power limit, default 20 A
|
| Floating-mode operation | 12,0 V - 13,2 V adjustable, default 13,5 V; Max. 120 A continuous current |
|
Function temperature range
|
0°C – +40°C
|
|
Main voltage
|
220 - 240 V, 50/60 Hz
|
|
Battery nominal voltage
|
12 V
|
|
Protection type (DIN 40050)
|
IP 20 D
|
|
Dimensions (W x H x D)
|
329 x 116 x 433 mm
|
Scope of Delivery
- Battery charger
- Detachable charging cables (3 m – 25 mm²)
- AC Power cord
- Wall mount
- User manual including Safety instructions
Special Accessories
|
Detachable charging cables, 5 m length, 25 mm² cross-section
|
1 684 437 009
|
