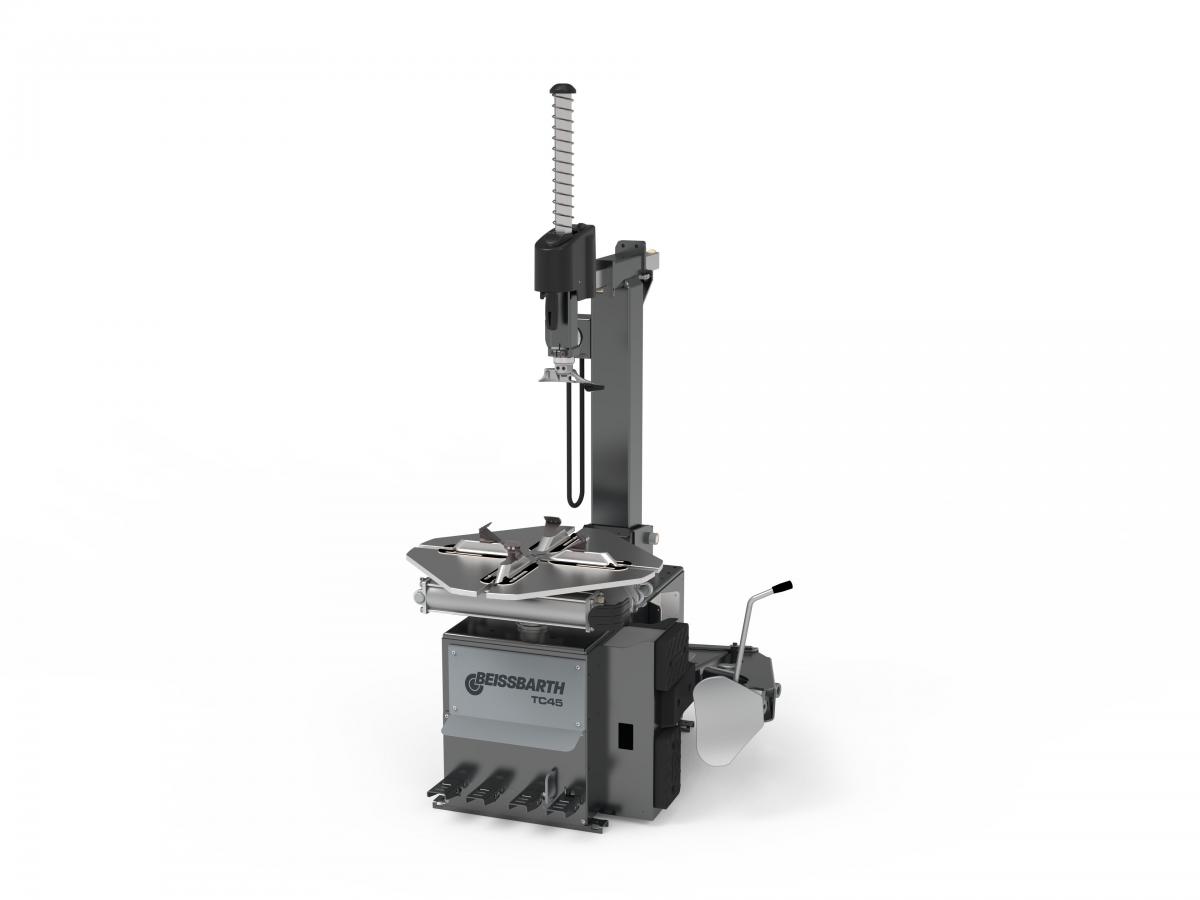

BEISSBARTH TC45 TI Version

TC45 | TI Version Automatic tilt-back tyre changer | 10-27" working range | 15" standard bead breaker | jaw inflation technology | 400V Article number: 1 692 401 011 Square turntable with automatic centering jaws Clamping range from 10-27" Double 80mm cylinders for maximum clamping power 2 rotation speeds: 8 & 16 rpm Square shape for easier lever use Robust mounting column and head Easy tilting via pedal Quick vertical and horizontal movement of arm Pneumatic locking Powerful bead breaker side shovel Quick and effective loosening of the bead Up to 15" tyre width Three-way adjustable blade Controlled via pedal Anti-skid rubber pad protects tyre and rim Full control with four pedals plus side inflation pedal Pedal control for rotation, side shovel, column tilting, and clamping Removable pedal unit for easier maintenance Safety separator for rotation pedal Side inflation pedal High rigidity by design Full metal pedals Powerful 50x50mm horizontal arm Metal front cover TI: Tire inflation via claws Fast and secure gripping of the bead on the rim Both hands free during inflation and bead seating Minimizes the risk of air leaks or tire bursts Easy tire inflation via claws 18-liter air tank Upgrade options: TCX.PRO, PRO2 or PRO3 assistance column Side lift Tubeless inflation kit Roller board Scope of deliveries: 5x front head protection 2x rear head protection Standard lever Brush 400V plug Note: unit comes with disassembled pole   Max. wheel diameter 46" | 1160 mm Operating pressure 8 - 12 bar Rapid inflation ja Max. wheel width 15" | 381mm Length 1450 mm Height 1900 mm Width 1030 mm Power supply 400V | 3Ph | 50-60Hz Motor power 0,8 - 1,1 kW Max. clamping capacity 27 " Max. torque 1200 Nm Space requirement width 1450 mm Space requirement length 1850 mm Rotation speed 8 | 16 rpm Packaging length 750 mm Packaging width 1100 mm Packaging height 1100 mm Min. clamping capacity 10 " Number of mounting speeds 2 Clamping device design Clamping plate Min. inner clamping range 12 " Max. inner clamping range 27 " Min. outer clamping range 10 " Max. outer clamping range 24 " Mounting head design with tire lever Mounting arm design moveable Mounting column design tiltable Bead breaker cylinder force 25000N @ 10bar Beda breaker force on shovel 13000N @ 10bar Tyre inflation Claw inflation Turntable height 670 mm Bead breaker operation foot control Stackable 2 Piece(s) Units per 20ft container 30 Piece(s) Units per 40ft container 60 Piece(s)   Storage kit | for TC22, TC45 and TC47L 1 692 402 014 Assistance column | TCX.PRO 1 692 402 018 Assistance column | TCX.PRO2 1 692 402 017 Assistance column | TCX.PRO3 1 692 402 015 Pneumatic helper arm | for TCX.PRO2 and PRO3 1 692 402 016 Rim protector 1 692 402 027 Plastic mounting head | TC22 and TC45 1 692 402 026 Mounting head | for motorcycles 1 692 402 032 Lever | for RFT and UHP tyres 1 692 402 037 Lever | WDK 1 692 402 038 Protection | for WDK lever 1 692 402 020 Roller bed | for TC22, TC45 and TC47L 1 692 402 036 Set clamping jaws | 4 pcs. | for motorcycles 1 692 402 033 Set clamping jaws | 4 pcs. | for scooters 1 692 402 034 Quick inflation system | for tubeless tires 1 692 402 029 Quick change kit for mounting head 1 692 402 025 Bead breaker shovel protection 1 692 402 023 Protection for lever 1 692 402 022 Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L 1 692 402 021 Protection kit mounting tool | 10x front + 10x rear 1 692 402 019 WDK Kit with mounting lever 1 692 402 030 WIKA inflating gun with pressure gauge 1 692 402 028 BeadLock Pro | with extension 1 692 402 003 Bead clamp 1 692 402 031
