BEISSBARTH TC1150 HD

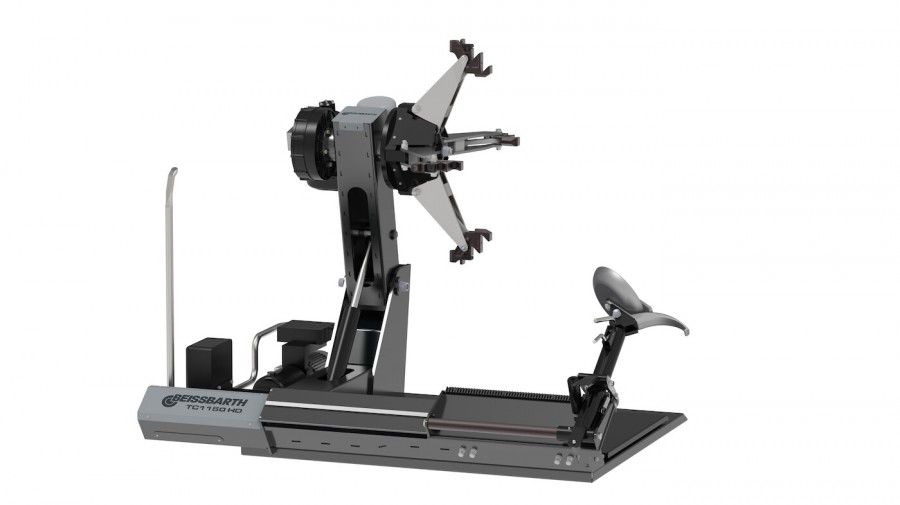

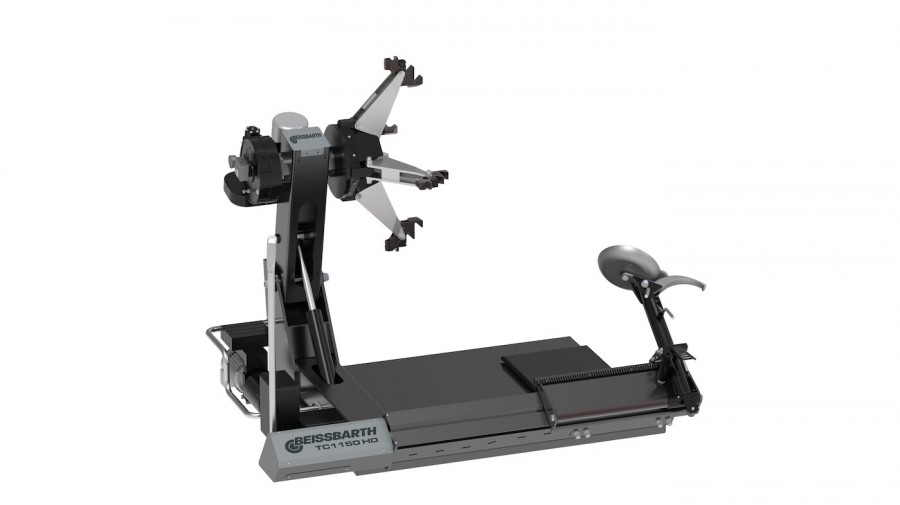

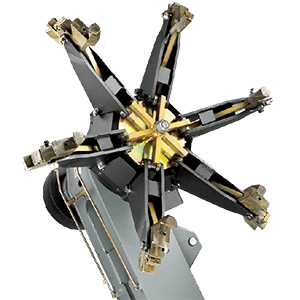

BEISSBARTD TC1150 HD Truck tyre changer | 14-42" rim size | extendable up to 56" | 1150mm rim width | 2000kg | 400V The TC1150 HD: The ultimate heavy-duty truck tyre changerSelf-centering chuck Four powerful jaws ensure perfect locking on rims of all shapes and profiles Rotates clockwise and anti-clockwise at 4.5 to 9 rpm Opens and closes hydraulically with adjustable pressure Five grip zones, six different possibilities for clamping the rim Powerful mounting and demounting tool arm Manual adjustment of the tool inclination and direction Simply rotate tool to switch between bead breaking roller and bead extraction Quick and manual movement of the tool arm closer to or further away from the wheel Get the tool arm completely out of the way with one simple move for better access to the wheel Powerful bead breaker with 25,000N force in & out Robust and intuitive cable remote Joystick 1 (up & down): Wheel up and wheel down Joystick 1 (left and right): Movement of tool carriage Joystick 2: Open and close jaws Left pedal: rotate anti-clockwise Right pedal: rotate clockwise Freely movable inside complete working area Superior versatility Effortlessly handles rims up to 42" diameter, extendable up to 56" Covers wheels up to 2300mm in diameter and 1150mm in width Built to handle weights up to 2000kg Note: For maximum safety, holes for floor fixation are pre-drilled in the factory by default. Scope of deliveries: Truck mounting lever Rim clamp 5,3m cable 400V plug
