BEISSBARTH Easy CCD + Flex

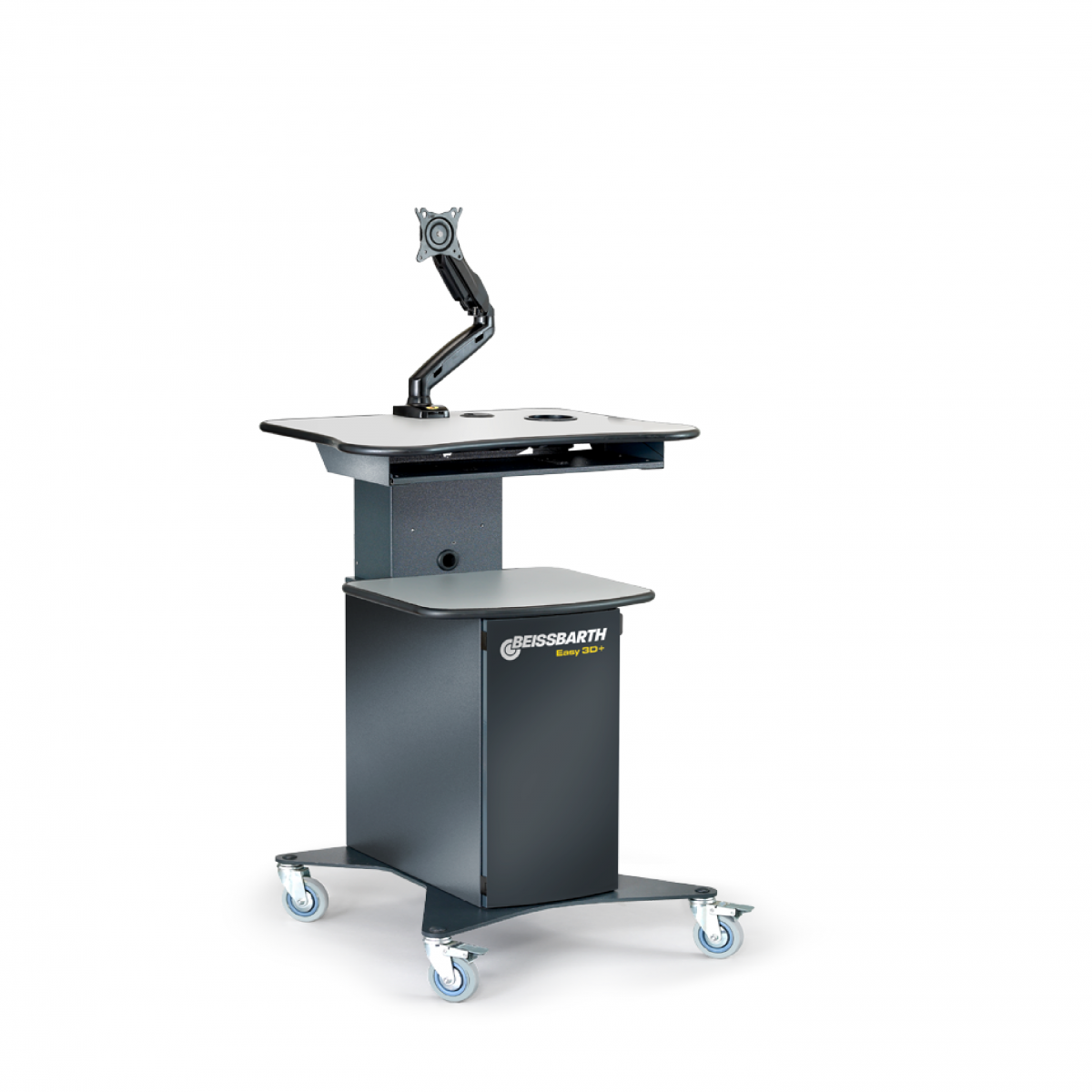

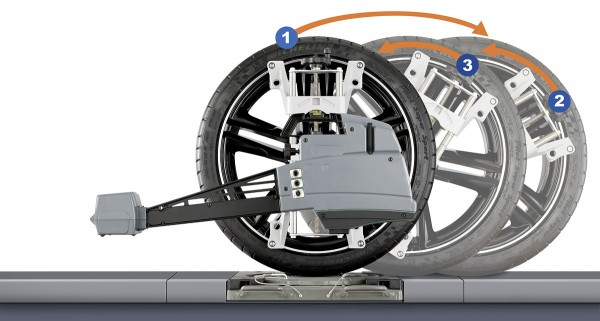

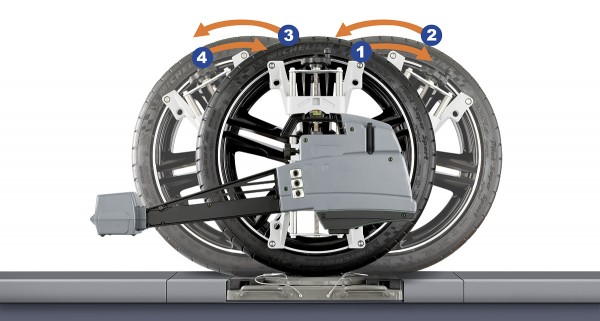

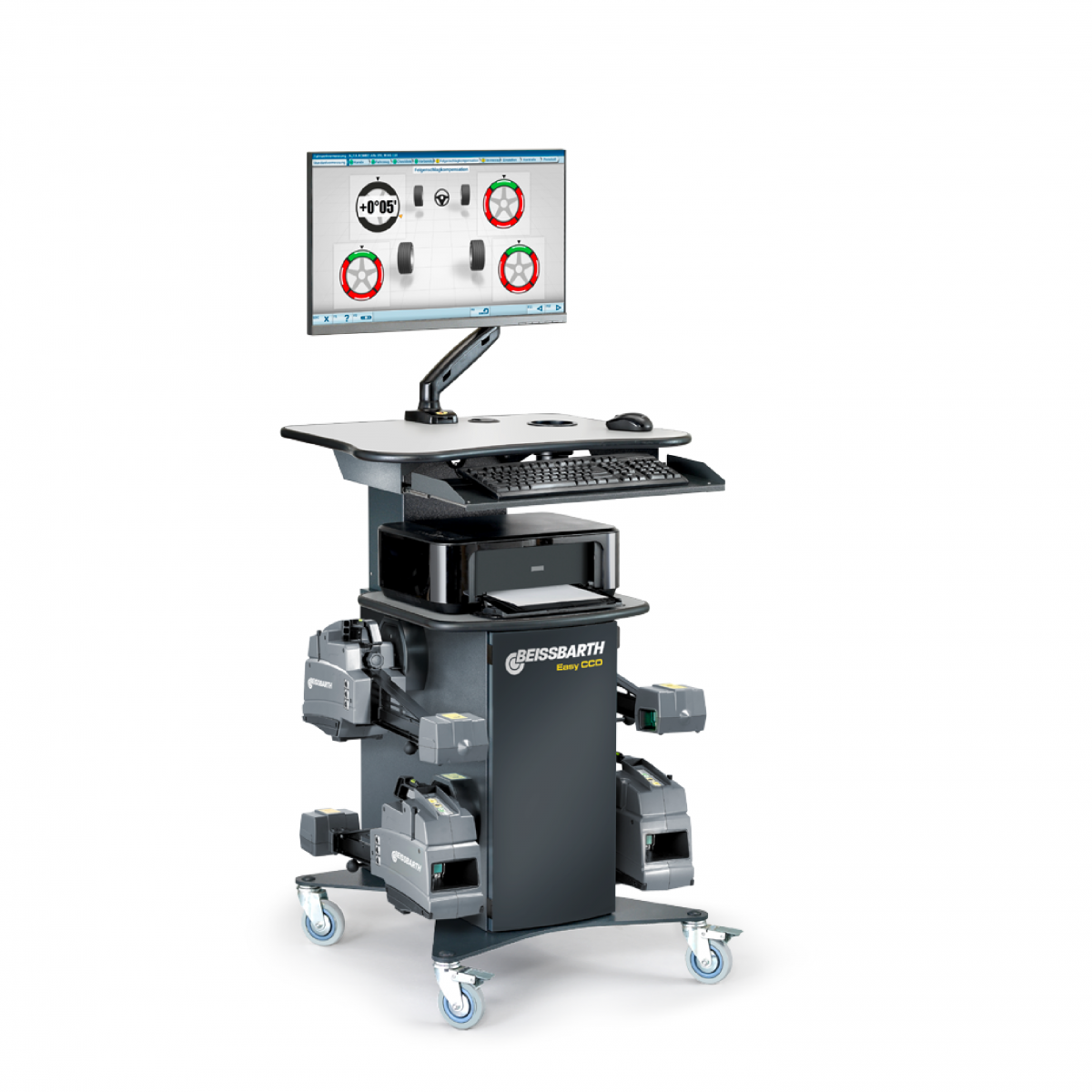

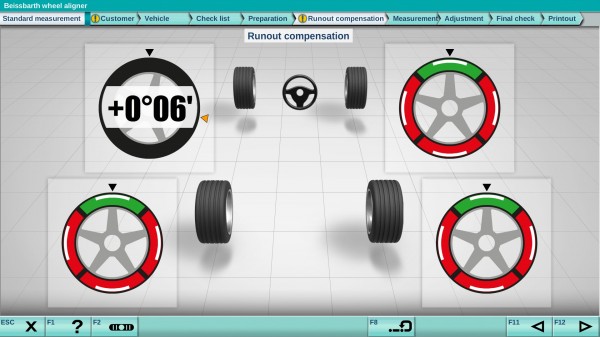

Wheel aligner Easy CCD+ | FLEX | 433 Mhz Wheel alignment using CCD measuring technology is the ideal entry-level solution by Beissbarth - economical, flexible, space-saving | with cabinet (without PC, monitor and printer) Perfectly integrated into ADAS calibration and head light testing: The space in front of the lift can be used for ADAS calibration boards and head light tester Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle No need for extra cameras, cables, or clamps required for ADAS calibration Best in class: +/- 2 minute accuracy: 360° measurement field for permanent self-check and adjustment of system to movement and vibrations Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation No calibration to a specific lift allows a measurement on any wheel alignment bay Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops Intelligent and space-saving charging solution that can be mounted on any wall Quality made in Germany Also available as kit version; ideal for already existing alignment bays   Data transmission: 433 Mhz Scope of delivery: Sensor head with encoder and battery power +Software with SmartTest for direct reception and ADAS calibration option Vehicle specs database Cabinet without PC Brake pedal depressor and steering wheel holder   Please note: Turntables, and wheel clamps need to be ordered separately! Operating temperature 5 - 40 °C Measuring system - CCD Frequency 433 MHz Storage temperature -20 - 60 °C Relative humidity use (40 °C) 10 - 90 % Height cabinet 1111 mm Width cabinet 650 mm Depth cabinet 680 mm Accessories: Vehicle database update Cars & Vans Europe | Key Card1 690 002 015Mechanical aluminum turntable Precision1 690 401 028Electronic aluminum turntable without connecting cable | Precision1 690 401 013Protective rubber cover for aluminum turntable1 690 402 001Sliding plate for rear axle | short1 690 401 003Sliding plate for rear axle | long1 690 401 004Drive-on ramps for two aluminum turntables1 690 701 052Drive-on ramps for turntables and sliding plates1 690 401 008Extension set for Multi-fit clamps | 23 - 28"1 690 311 113Set truck claws for 1 x Multi-fit clamp | Truck1 690 311 115MultiQuick wheel clamp with standard sleeves | 13 - 23" | 1 pc1 690 501 250Clamping arm extensions for MultiQuick Wheel Clamps | 38" | 8 pcs.1 690 401 033Extension arms for MultiQuick Wheel Clamps | 17 - 26" | 12 pcs.1 690 401 032Extension distance bolts for MultiQuick Wheel Clamps | 90 mm | 12 pcs.1 690 302 008Distance bolts for MultiQuick Wheel Clamps | 62 mm | 12 pcs.1 690 401 060PVC protective caps for MultiQuick distance bolts | 12 pcs.1 690 401 059Sleeves for MultiQuick Wheel Clamps | Standard | 12 pcs.1 690 401 058Sleeves for MultiQuick Wheel Clamps | Softline | 12 pcs.1 690 401 055Distance spacer rings for MultiQuick distance bolts | 12 pcs.1 690 401 102Central clamp Porsche Carrera GT1 690 301 002Central clamp Porsche 911 GT3 and Turbo1 690 380 002Self-centering quick clamp for Porsche1 690 380 010Self-centering quick clamp for Tesla1 690 380 161Self-centering quick clamp for Ferrari1 690 381 299Quick clamp Mercedes Benz | OEM1 690 801 002Quick clamp BMW | OEM1 690 801 001Distance bolts for quick clamp Mercedes Benz | 100 mm1 690 801 007Distance bolts for quick clamp BMW | 120 mm1 690 801 003Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm1 690 401 019Precision spoiler adapter Porsche1 690 301 004Spoiler adapter 50 mm1 690 401 005Spoiler adapter 100 mm1 690 121 001Wallboard for sensor heads1 690 311 146Cable set1 690 401 012Toe press bar for Mercedes Benz1 693 600 001Accessories cart1 690 701 041Ballast bag 5 kg1 693 740 001Ballast bag 8 kg1 693 740 693Ballast bag 10 kg1 693 740 002Ballast bag 20 kg1 693 740 003
