BBFAS 415

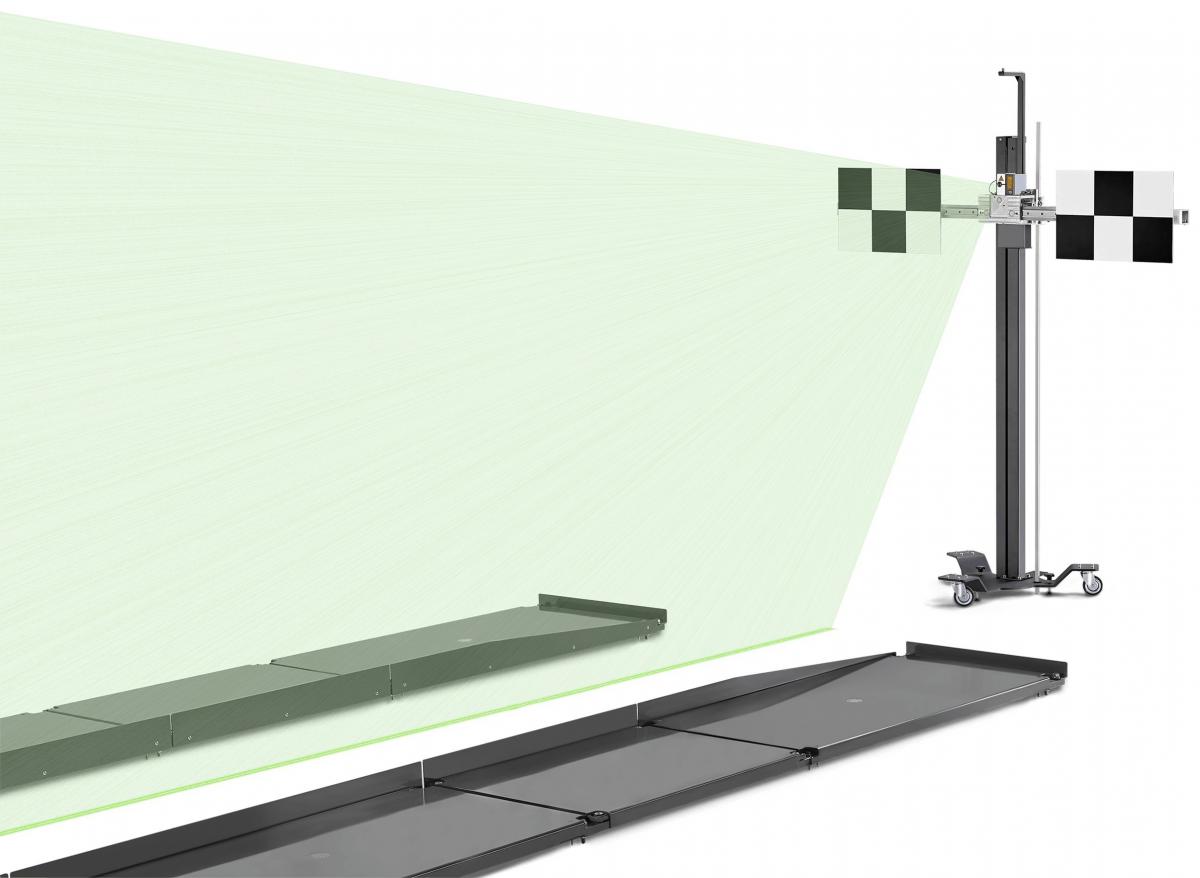

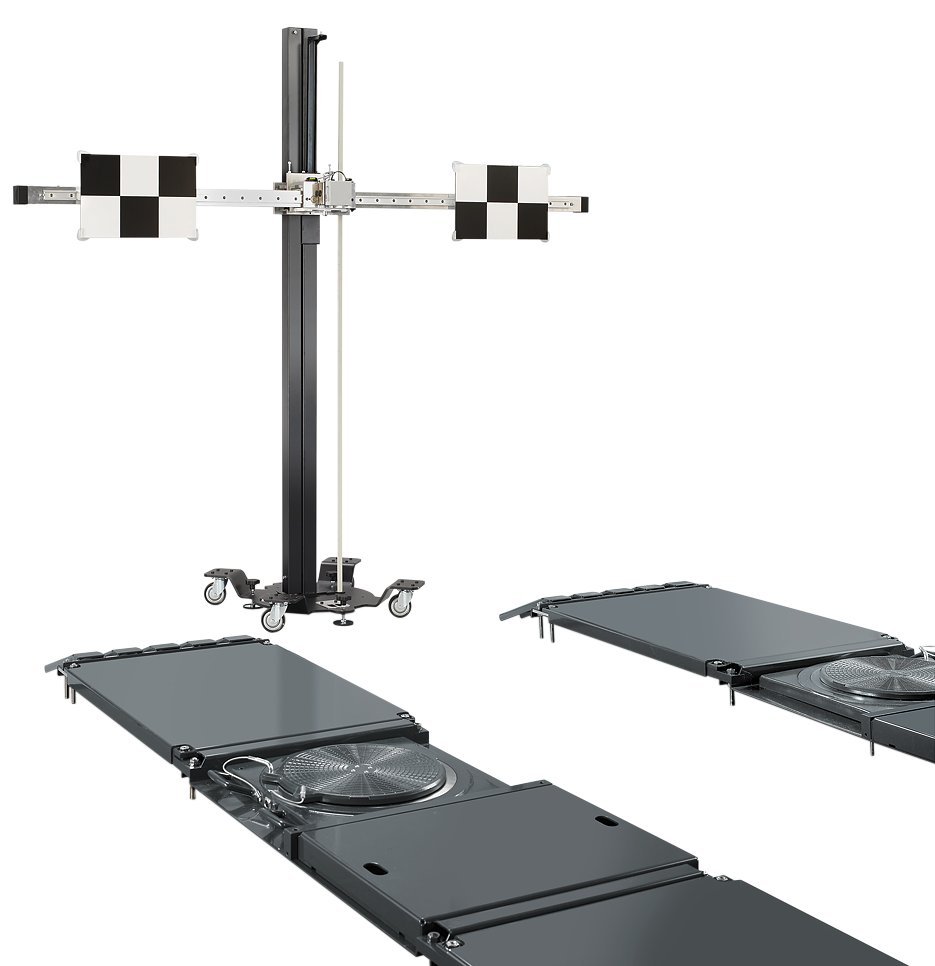

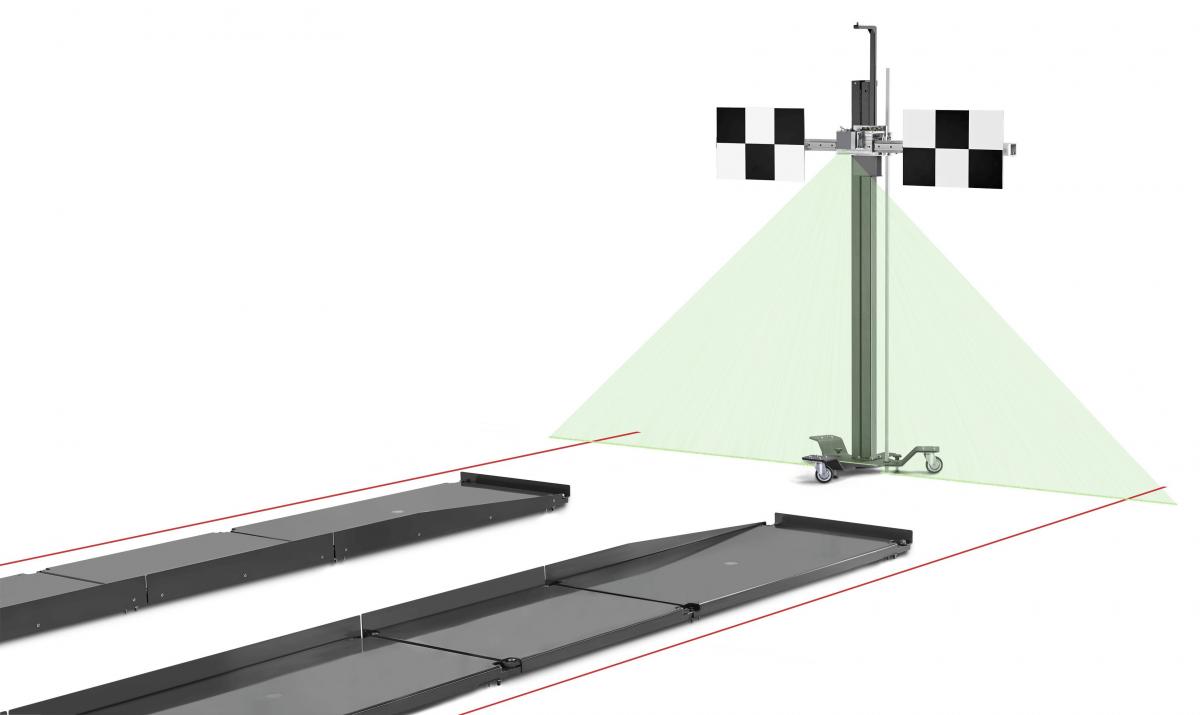

BBFAS 415 Beissbarth BB FAS 415 - the flexible front camera calibration device for multi-brand system solutions Article number: 8 900 380 008 Description Technical Data Accessories Front camera calibration with BBFAS 415 calibration device: Flexible, easy and precise static calibration of cameras e.g. Lane departure cameras, multifunction cameras Wide vehicle coverage through optional calibration Targets Fast, easy alignment to the vehicle's symmetrical axis or on to ground markings Alignment on to the vehicles track-width with optional accessories possible at any time Horizontal levelling according to precision spirit levels via three height-adjustable feet Precision crossbeam with slidingplate and fine adjusting screw Magnetic holding fixture for multi-brand calibration plates High power line laser module with low laser class (1M). Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range. Optional: Compact storage box for modular calibration boards   Note: For adjusting the driver assistance systems, an OBD diagnostic device is also required Scope of delivery: Precision crossbar with 2 magnetic sliding-plates for mounting of calibration Targets 4-wheel trolley with stable column for holding the crossbar Line laser module for aligning the calibration device Ruler for height adjustment   Note: Necessary calibration targets are not included Weight 51 kg Packaging length 2120 mm Packaging width 620 mm Packaging height 580 mm Gross weight 51 kg   Accessories Front camera calibration with BBFAS 415 calibration device: Flexible, easy and precise static calibration of cameras e.g. Lane departure cameras, multifunction cameras Wide vehicle coverage through optional calibration Targets Fast, easy alignment to the vehicle's symmetrical axis or on to ground markings Alignment on to the vehicles track-width with optional accessories possible at any time Horizontal levelling according to precision spirit levels via three height-adjustable feet Precision crossbeam with slidingplate and fine adjusting screw Magnetic holding fixture for multi-brand calibration plates High power line laser module with low laser class (1M). Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range. Optional: Compact storage box for modular calibration boards   Note: For adjusting the driver assistance systems, an OBD diagnostic device is also required Scope of delivery: Precision crossbar with 2 magnetic sliding-plates for mounting of calibration Targets 4-wheel trolley with stable column for holding the crossbar Line laser module for aligning the calibration device Ruler for height adjustment   Note: Necessary calibration targets are not included Weight 51 kg Packaging length 2120 mm Packaging width 620 mm Packaging height 580 mm Gross weight 51 kg Target storage box empty 1 690 381 217 Multi-Target starter kit 1 8 900 381 001 Multi-Target starter kit 2 8 900 381 002 Distance measurement laser for BB FAS 415 8 900 381 005 P-Assist 8 900 381 138 Positioning target 8 900 381 292 Calibration target set Nissan type 1 8 900 381 139 Calibration target set Nissan type 2 8 900 381 140 Calibration target set Universal type 2 8 900 381 142 Calibration target set Honda type 1 8 900 381 143 Calibration target set Mitsubishi type 1 8 900 381 218 Calibration target set Mazda type 2 8 900 381 234 Calibration target Toyota type 1 8 900 382 287 Calibration target Honda type 2 8 900 382 297 Calibration target Mercedes/Infinity type 1 8 900 382 312 Calibration target Kia / Hyundai type 3 8 900 382 316 Calibration target Mazda type 1 8 900 382 318 Calibration target Mercedes / Infinity type 2 8 900 382 319 Calibration target Kia / Hyundai type 2 8 900 382 320 Calibration target Toyota type 2 8 900 382 328 Calibration target Honda type 3 8 900 382 349 Calibration target Toyota type 3 8 900 382 355 Calibration target Universal type 6S 8 900 382 571 Calibration target Subaru type 3S 8 900 382 590 Calibration target Subaru type 2S 8 900 382 608
